A production line that integrates punching, slitting and cutting to length

2025-06-04 10:03:06

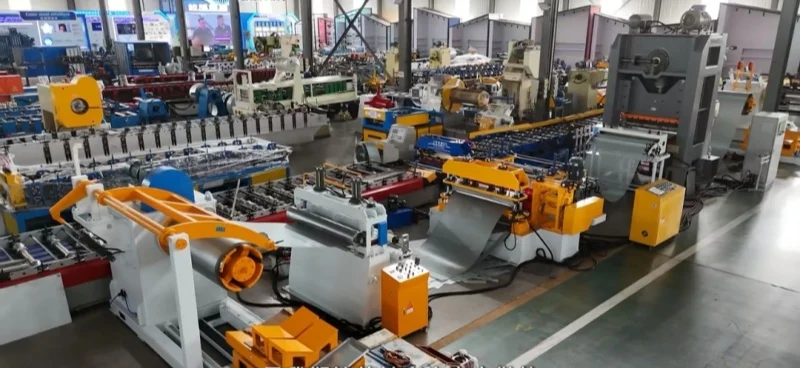

Today, we introduce a production line that integrates a punching machine, a metal slitting machine, and a metal cut-to-length machine. This is the machine we customized according to the customer's requirements.
punching-machine-slitting-machine-cut-to-length-machine
As in the daily application of punching plate application scenarios more and more, such as ceiling sound-absorbing boards, sports venues, train stations, bus stations, and other large buildings need to have both beautiful and sound-absorbing or absorption of moisture, so for punching board demand is bigger and bigger.
The equipment we are introducing to you today was custom-made for a customer in Finland. The customer requires that the thickness, width, and length of the material to be processed by the machine can all be changed. Therefore, we adopted a mode that combines the metal slitting, cutting to length, and punching machine to design this production line.
Here is a detailed introduction to the various highlights of this production line:
1. Punching machine
1) The hydraulic uncoiling machine uses four arc-shaped arms to support the steel coil and prevent material deformation.
2) Punch press: A water pool is installed in front of the punch press to prevent the material from heating up during punching. A device for dripping emulsion is installed on the press to dissipate heat from the die and prevent the situation where the precision is affected due to die heating.
3) Thanks to the design of our molds, the material of the molds, and the processing technology of the molds, the diameter of the holes punched by our punch press is only 3-4mm. Moreover, the punch press can operate for a long time, and the punched plates have no burrs.
4) Compared with the feeding mode of other companies that use servo feeders, our machine adopts the pulling mode of servo feeders. The advantage of adopting this mode is that it can prevent slipping and maintain high precision. However, there are also drawbacks. When loading materials, a section of materials will be wasted at the front end.
2. Slitting and cut to length integrated machine
When customers require different widths and thicknesses for various scenarios, the slitting and cut-to-length integrated machine can easily slit or horizontally cut the materials. Customers can adjust the length and width of the materials according to their needs.
3. Damping segmentation
The customer needs to shape the punched steel plate into the desired form through a forming machine, so the steel after punching needs to be harvested into coils. The function of the damping division equipment here is to prevent punching and division.
4.Coiling machine
The coiling machine is used to coil the segmented steel strips and can also be used to coil the uncut coils after punching.
After the materials are wound into rolls through the coiling machine, they can be used in the forming machine.
Therefore, customers can obtain steel plates of different widths and lengths according to their needs through this production line.
