C Z Purlin Roll Forming Machine

C Z Purlin Roll Forming Machine

C Z Purlin Roll Forming MachineA c purlin or z purlin is a horizontal beam or bar to provide structural support in buildings. Our purlin roll former can produce

C Z Purlin Roll Forming Machine

A c purlin or z purlin is a horizontal beam or bar to provide structural support in buildings. Our purlin roll former can produce purlins of different sizes. C Z purlin Roll Forming Machine is also called Interchangeable purlin roll forming machine or z purlin making machine. In steel construction, the term purlin typically refers to roof framing members that span parallel to the building eave and support the roof decking or sheeting. The steel of c purlins are in turn supported by rafters or walls. So pre-punched purlins are quick to install and suitable for both insulated and uninsulated roofs and walls. The thickness and height of the purlin selected depend on span length and loads.

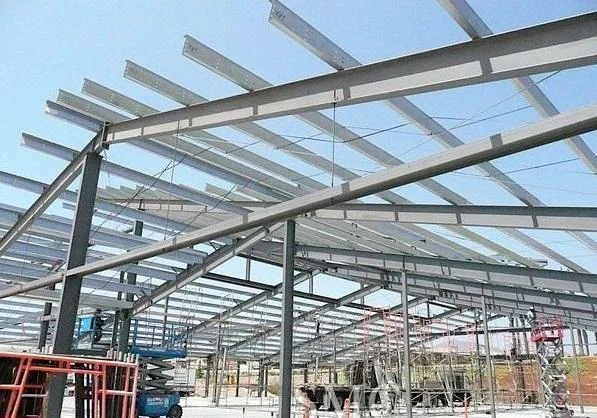

Applications of c & z purlin:
Industrial construction
Hall and warehouse construction
Extension construction and renovation
Agricultural projects

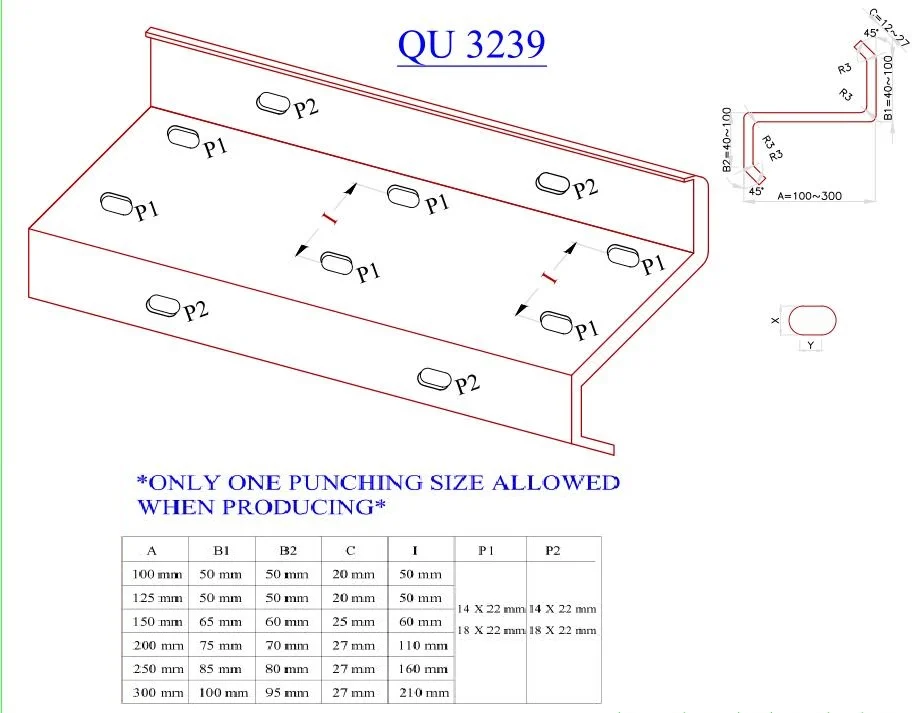

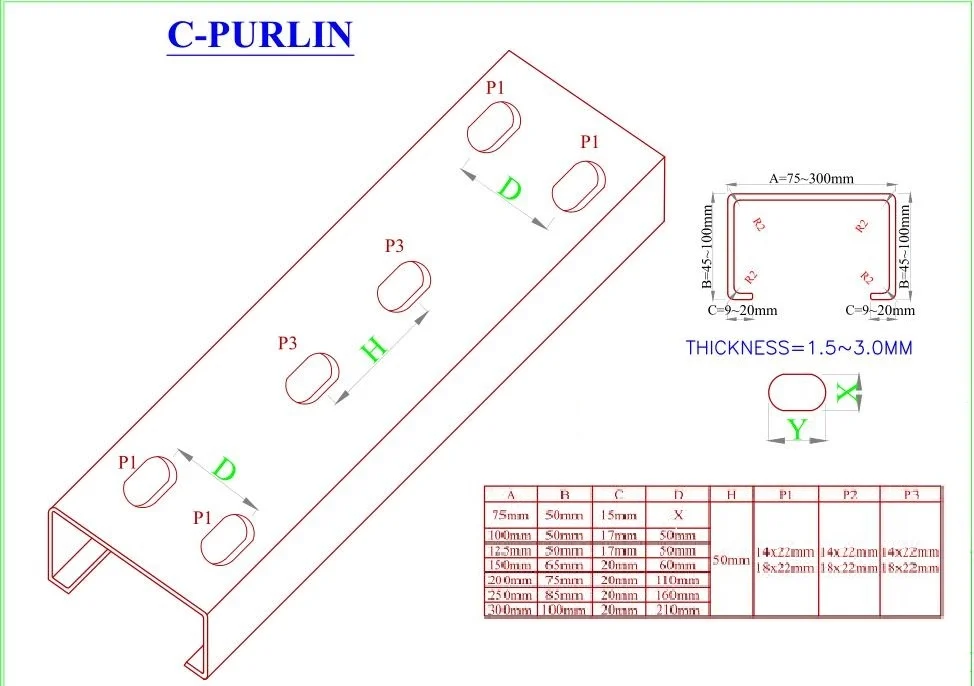

The size we can do:


Some pictures for you reference:

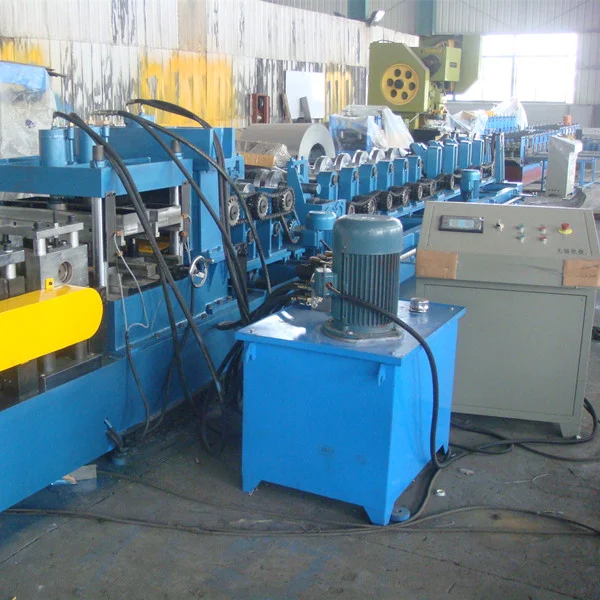

The Parameters of CZ Purlin Roll Forming Machine

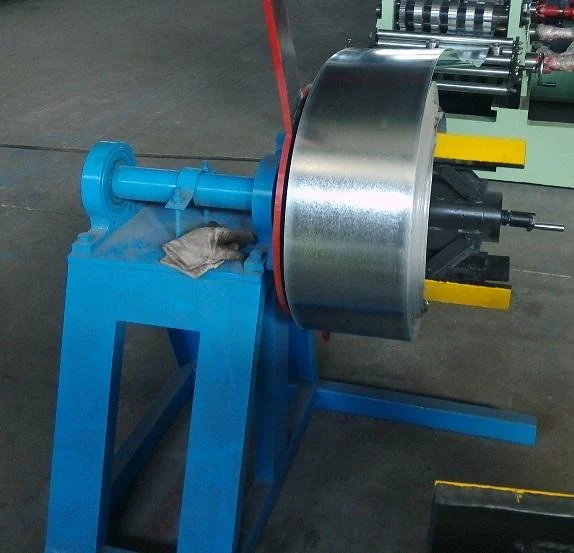

Manual un-coiler System
Loading capacity: 5T;
Uncoiling width: 500mm ;
Inner diameter: 450-550mm

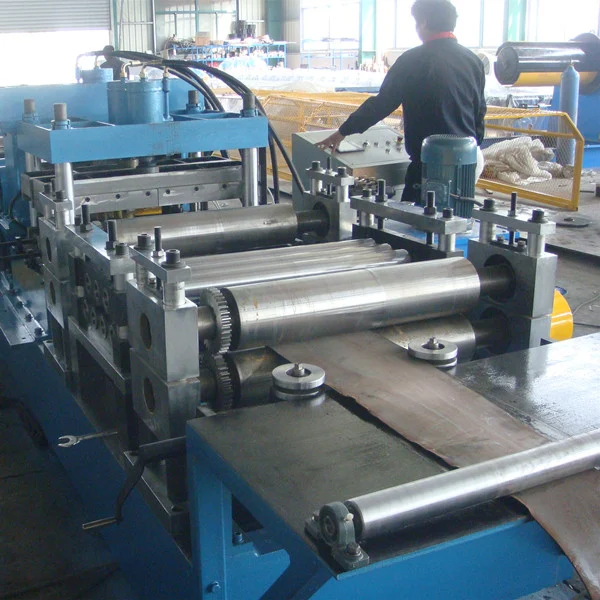

Entry Beach
Specification:Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

Shearing Mechanism and punching (include cutting tools, hydraulic tank, cutter machine)

1)Feature : Ensure stability, precision and cutting speed; Function : Automatic cutting controlled by PLC; Material of blades: Gcr12MoV quenched;
2)Power supply : hydraulic power;
3)Frame : Pillar style with rack & pinion system;4)Stroke switch : non-contact photoelectric switch
