Floor deck roll forming machine-50mm

Floor deck roll forming machine-50mm

The floor deck roll forming machine-50mm is made to produce 50mm-type floor decks in batch and in an automatic way.

ZhongTuo Machinery is specialized in designing and manufacturing customized machines as your requirement. Our machines are equipped with after-sales services and installation guidance from experienced technicians.

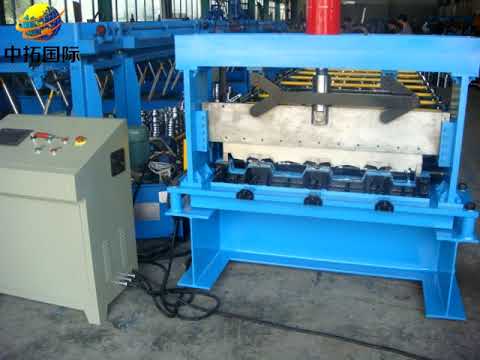

Here is a video of floor deck roll forming machine working process for your reference:


The drawing profile is as follows:

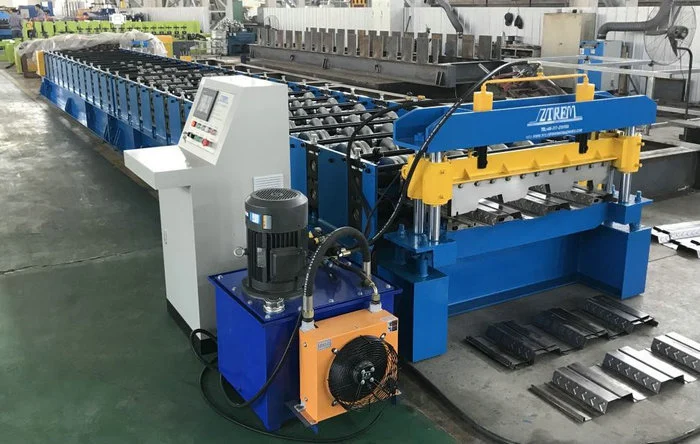

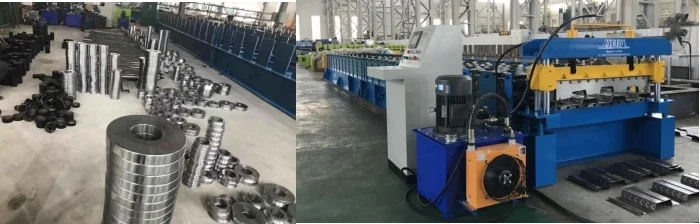

Here is a photo of the machine for your reference. If you have different requirement, we can make customized machines for you. Please contact us at any time, we are waiting for you!

Here is the work flow of floor deck roll forming machine:

Here is some data of floor deck roll forming machine-50mm, including the parameters of materials and details of major components.

Technical parameters of materials are as follows for your reference:
Details Parameter
Raw material Galvanized steel
Material thickness 0.5 - 1.2 mm
Material feeding width 1000 mm
Product cutting length Adjustable

Packing list of major parts are as follows for your reference:
No. Name Unit Quantity Remark
Part 1 5T decoiler set 1 Manual
Part 2 Main roll former set 1 Chains drive
Part 3 PLC control station set 1 Delta brand
Part 4 Cutting system set 1 Hydraulic
Part 5 Product table set 2 Regular

Detailed introduction of major component of the machine for your reference:

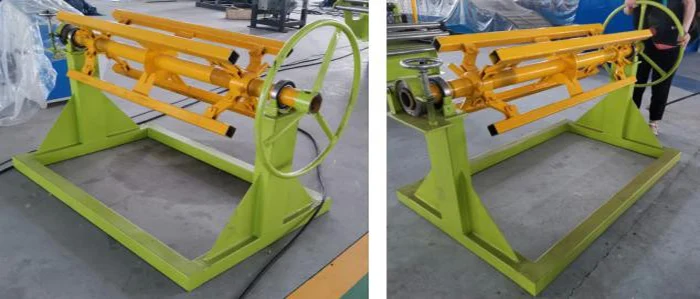

Part 1: Decoiler
Decoiler Supporting coils and doing uncoiling, passive type, the core moving forward or reverse is pulled by roll forming machine. Shrink and expand core manually
Carrying capacity: 5 tons Core inner diameter: 450-550mm
Max coil width: 1250 mm
Structure: Steel channel welded for the basic frame, profiled bar.
Advantage: by a big wheel. with manual brake, so operate more easily.

Part 2: Main roll forming machine

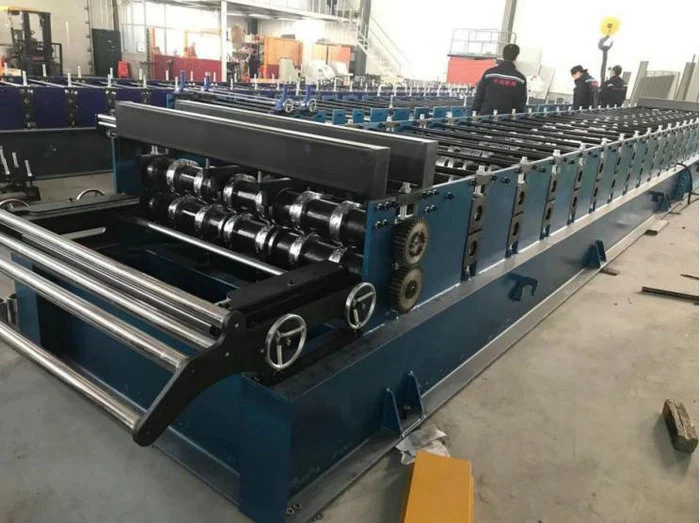

Roll forming machine Feeding device The platform width is adjustable by hand wheel, have the bearing inside to protect the adge of steel sheet.
Rolling shaft Shaft material: 45# steel, surface hard chromium plating
Shaft diameter: 90mm
Tampering treatment, prevent deformed and improve the hardness.

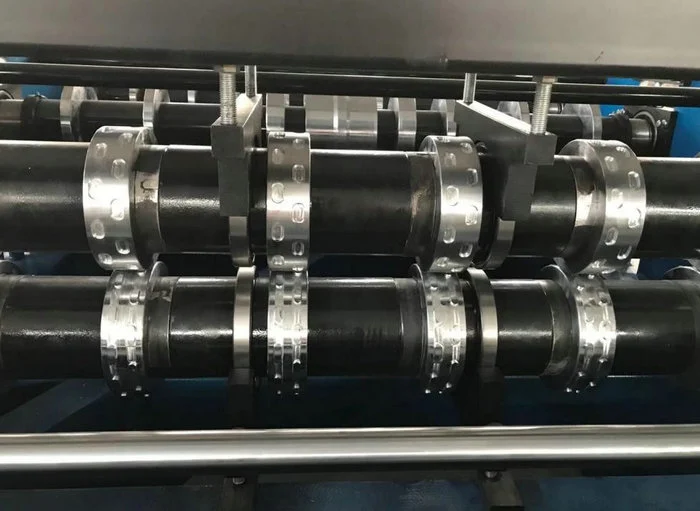

Roller Roller material: Cr15
Chromed treatment (Cr thickness: 0.05mm), anti-corrosion, increase hardness, ensure the precision and good abrasion performance

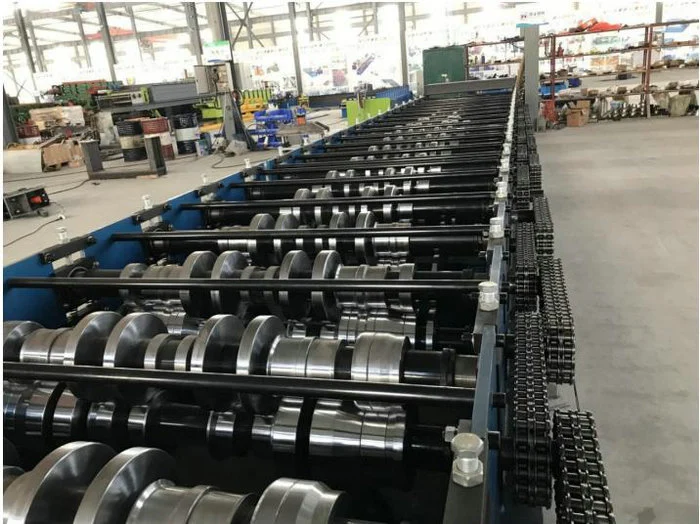

Rolling station 28 stations, including one set of embossing rolling station
Work speed 0-15m/min
Machine structure Middle plate welded structure
Steel plate thickness: 20mm
Machine basic frame 350#H steel welded woth diagonal bracing inside
The diagonal bracing can ensure the full set basic frame in the same horizontal level to prevent the sheet shift left or right. Meanwhile it can make sure the machine is in a high stability when working.
Bearing Chinese famous brand in Harbin
Work power 15kw*2
Brand: China famous brand

We adopt two motors driving on the transmission system because of the long rolling stations, it can balance the driving power and ensure all the rolling stations are in the same linear speed, to give the power more evenly to the machine.

Roller spacer treatment Anti rusty treatment
Pull rod Anti rusty treatmen

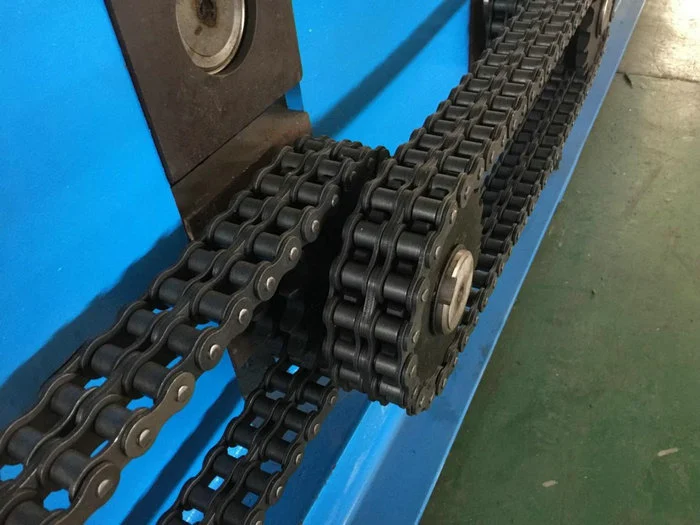

Transmission Chain size: 1.5 inches; Double chains driving

Part 3: PLC control system
Control system Frequency brand Delta
PLC brand Delta
Screen type Touch screen & buttons
Screen language English/Chinese/Spanish
Lower pressure electrical part Schneider
Counter brand Omron
Function Cutting length control, cutting quantity control, and speed control
Part 4: Cutting system
Cutting system Work type Hydraulic cutting

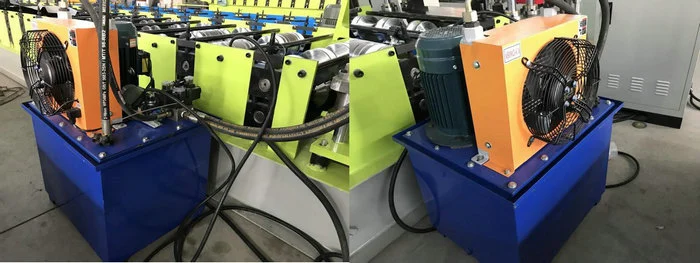

Hydraulic motor power 5.5kw
Cutter length tolerance ±10m/2mm
Oil pump Solenoid valves: 1 set
Frame Pillar pole type to make sure working steady
Cutting feature Steady and safe working condition and low sounds
Oil tube and wires connection All the tubes and wires will be marked by the numbers or letters, so that it will be very easy to connect for the new one.
