Dovetail Profile Roof Floor Deck Roll Forming Machine Metal Decking Machine Manufacturer

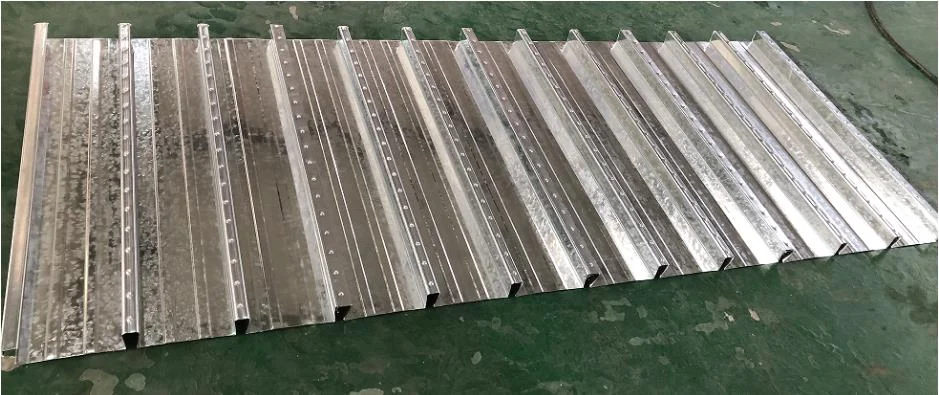

What Is Dovetail Deck?

Dovetail deck is a long span metal decking system that’s available in both roof and floor decking. The dovetail ribs are designed so that they provide a finished looking ceiling that allows you to attach lighting, HVAC, plumbing, or electrical to the underside of the panels.
 In the past, if your job required a structural metal roof deck your only choice was to use a system such as B deck. This type of system does not look finished when you look at it from the underside. B-deck has dents, weld burns, and large open spaces between the corrugations. Dovetail deck however will offer you some different solutions.
Dovetail roof deck is best used in the following applications:
  1. When You Have A Long Span (Between 10 and 25 Feet)
    Dovetail deck is capable of spans that are much longer than B deck or N deck. 2” dovetail deck can span up to 14’ and 3.5” dovetail deck can span up to 25’
  2. You Need A Structural Roof Deck With The Look Of A Finished Ceiling
    Dovetail decking is a perfect marriage between a structural roof deck and an architectural finished ceiling. It’s the ideal product to tie your building together and carry the load requirements of your building, while still providing a clean, modern, and finished looking ceiling.
  3. You Need To Hang Mechanical Systems, Lighting, Plumbing, Or Electrical
    Dovetail deck is designed so that you can conceal the fastening systems and create a grid hanging system for all of your lighting, HVAC, electrical, plumbing, etc. There is only one type of fastener that’s designed to hang heavy loads or mechanical systems from dovetail decking.

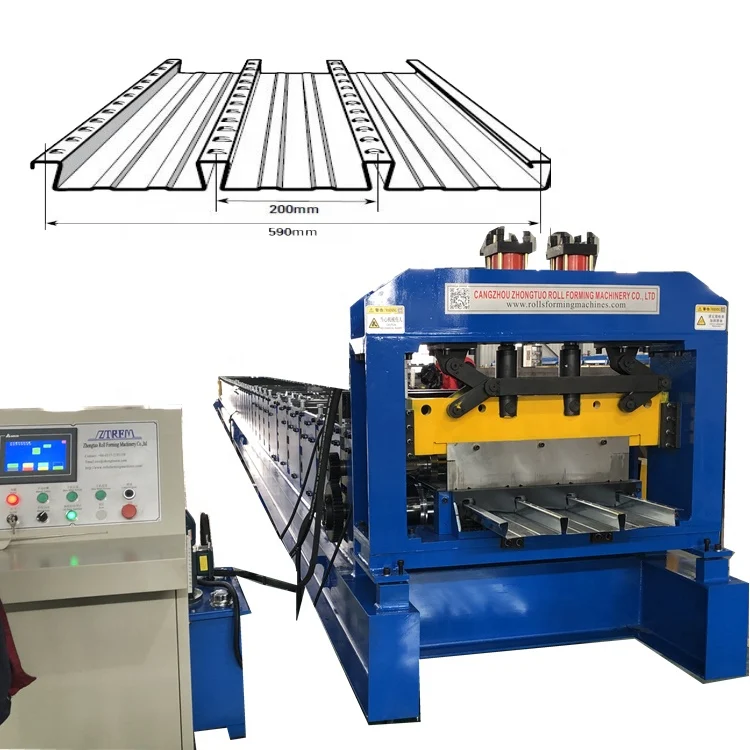

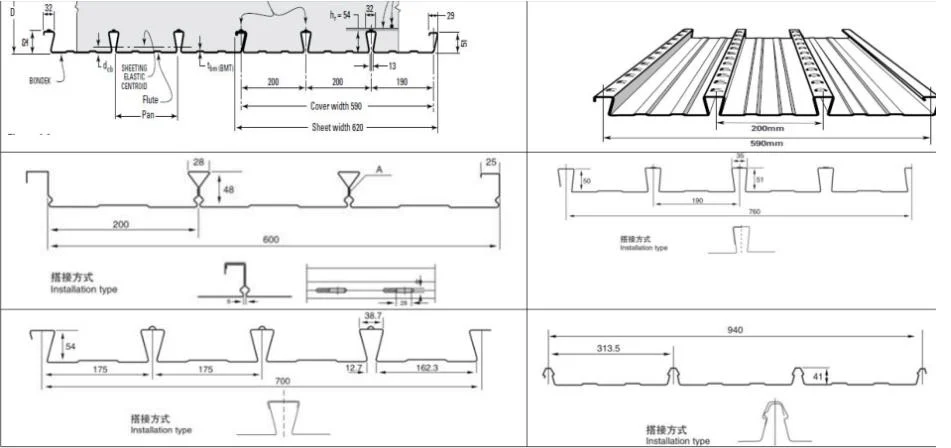

             DoveTail fluted deck panels Roof deck Bondeck roll forming machine
1.Formed Material GI Thickness:0.7-1.2mm  Width:1220mm (as request)
2.Decoiler Hydraulic automatic decoiler Capacity:10T
With loading car
3.Main body Roller station 34 rows(As your requirement)
 Diameter of shaft 95mm solid shaft
Material of rollers 45# steel, hard chrome plated on the surface
Machine body frame 500 H steel
Drive Double chain transmission
Dimension(L*W*H) About 18500*1700*1600(customize)
Weight About 13T
4.Cutter Hydraulic Cutting blade material:Cr12 with quenched treatment
5.Power Motor Power 18.5kw*2 sets
Hydraulic system power 5.5KW
6.Voltage 220V 50Hz 3Phase As requirement
7.Control system PLC and touch screen Delta brand
Low pressure apparatus Schneider
Language Chinese and English
8.Forming Speed 8-15m/min The speed is adjustable
