The Z Beam Storage Rack Machine is an innovative, low-profile shelving that features a specially designed Z-shaped beam. This unique shape minimizes shelf heig



The Z Beam Storage Rack Machine is an innovative, low-profile shelving that features a specially designed Z-shaped beam. This unique shape minimizes shelf height while maximizing the vertical clearance between storage levels. The system uses a low-profile bolting method, making it both cost-effective and space-saving. The distinctive Z beam configuration offers excellent load capacity and allows particleboard decking to sit flush with the top surface of the beams, creating a smooth, seamless shelving surface.



Item Specification
Outer Diameter of Coils 1600 mm
Inner Diameter of Coils 460 - 520 mm
Coil Width 500 mm
Coil Weight 3000 kg
Coil Tightening Manual
Brake Device Manual brake
Other Equipped with prevent frame

The Z Beam Roll Forming Machine is engineered for the automated mass production of Z beams or picking beams. These beams are designed to support shelving decks, which can be used for storing loose items or for easy picking in warehouse environments. Each Z beam profile includes a welded Z-shaped body with a four-hook connector at each end, and its folded edges form a raised lip where the shelving boards rest securely. These beams are commonly used to create picking levels in pallet rack systems. This roll forming machine produces boltless Z beams, simplifying assembly and installation.




Production Process:

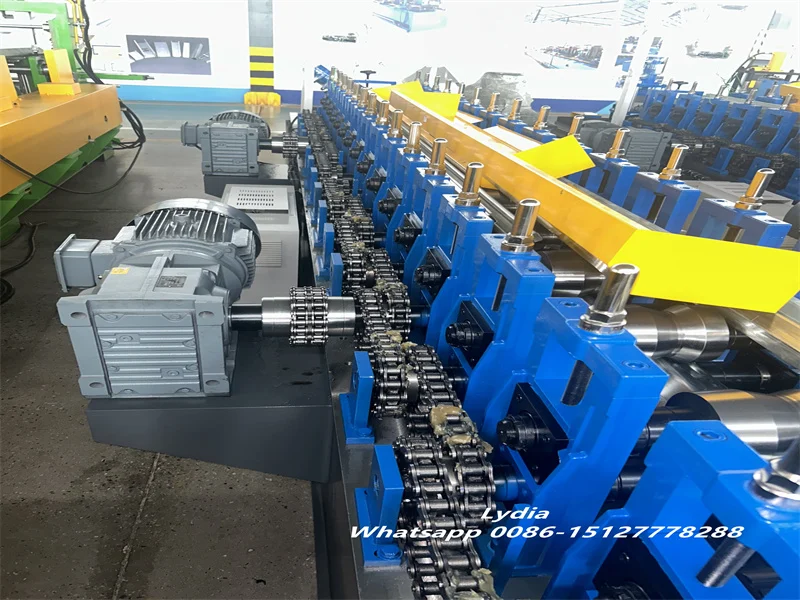

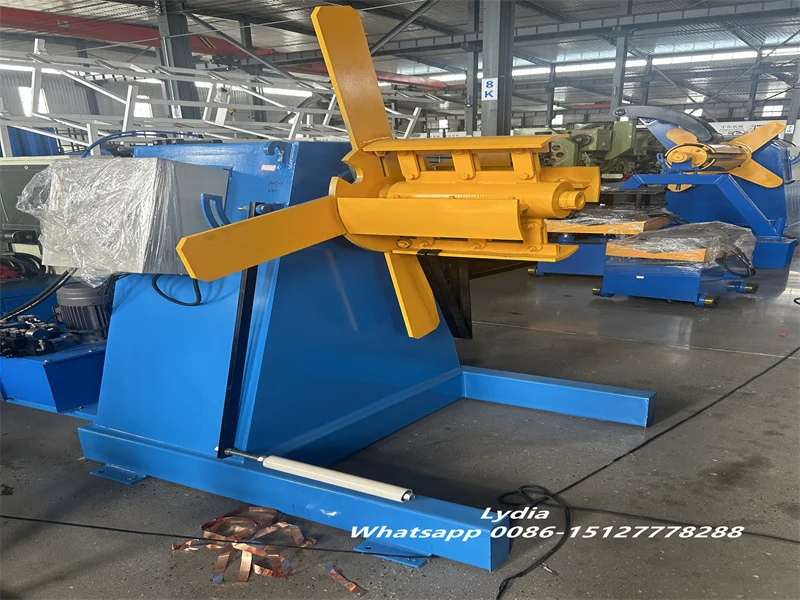

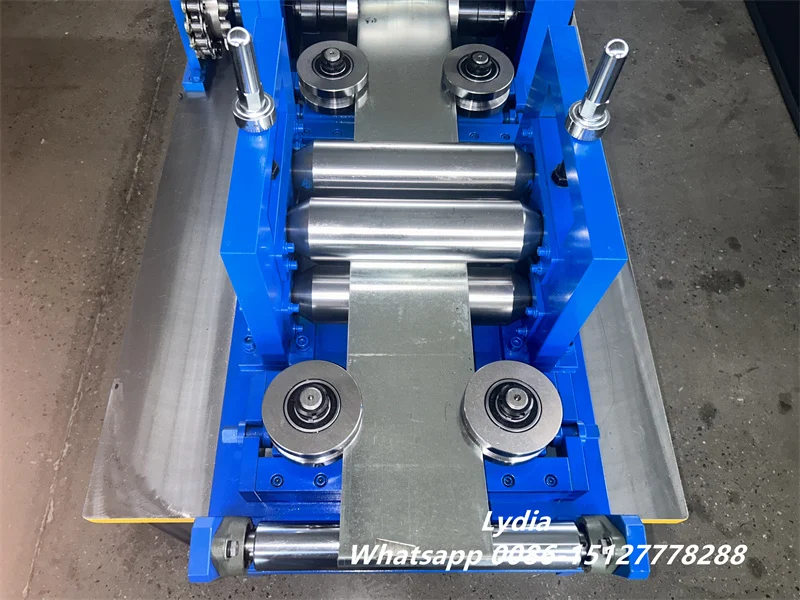

Decoiler → Material Feeding Guide → Leveling Unit → Punching Station → Roll Forming Section → Hydraulic Post-Cutting → Output Rack



Key Benefits of the Z Beam (for storage rack) Profile Roll Former:



Exceptional forming accuracy, maintaining dimensional tolerance within ±0.5 mm.

Pre-punching system enhances production speed and reduces manufacturing costs.

Sturdy molding frame ensures stable performance at high operating speeds.

Powerful hydraulic cutting system equipped with a cooling fan for efficient heat dissipation during continuous shearing.

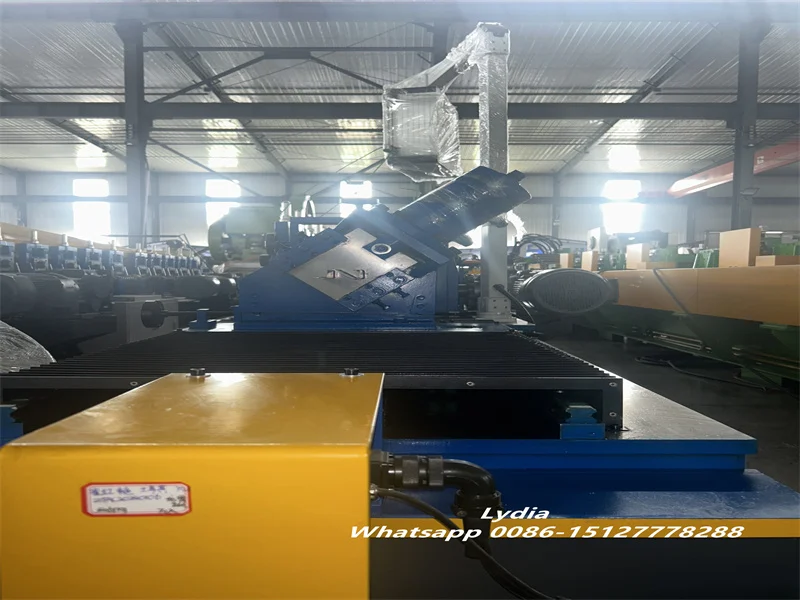

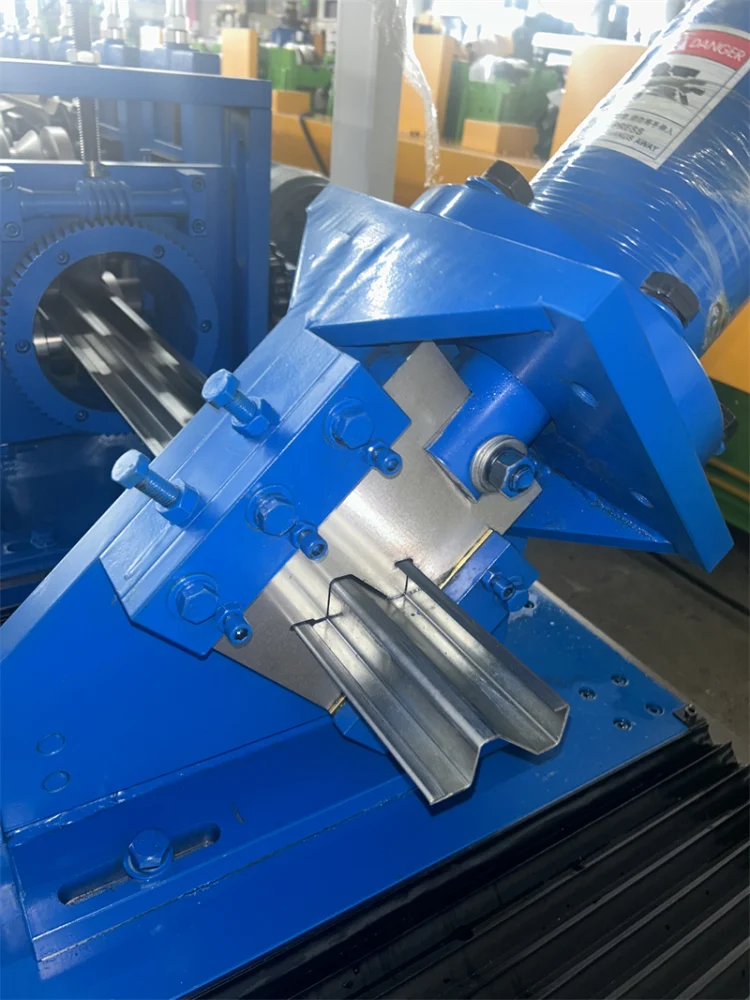

Servo-driven cutting mechanism significantly improves cutting precision and increases output speed.

Equipped with safety covers to protect operators during operation.



Item Specification
Outer Diameter of Coils 1600 mm
Inner Diameter of Coils 460 - 520 mm
Coil Width 500 mm
Coil Weight 3000 kg
Coil Tightening Manual
Brake Device Manual brake
Other Equipped with prevent frame





Item Specification
Width Adjustment By spacer
Material Thickness 1.8 - 2.5 mm
Roller Stations 24 groups
Straightening Rollers 5 pcs

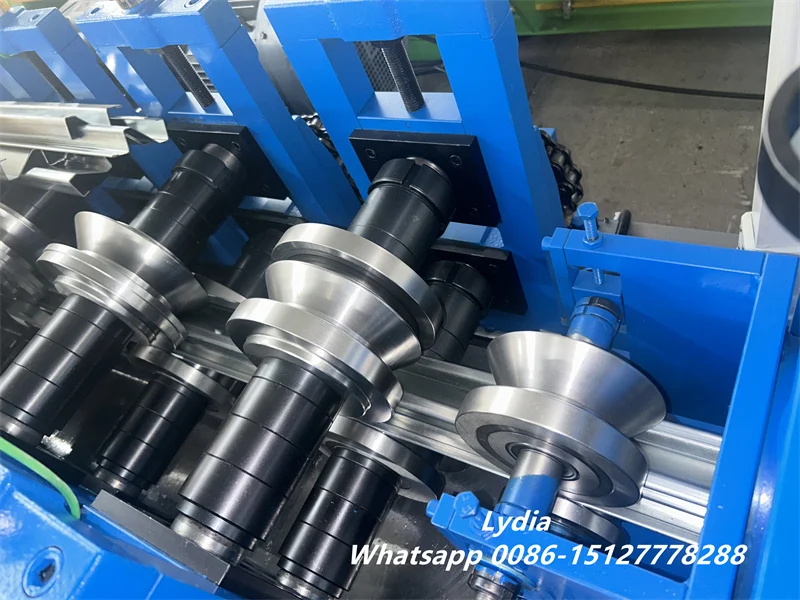

Roller Material GCr15 steel
Roller Hardness HRC55°-57° (heat treated)
Roller Surface Finish Polished
Main Shaft Diameter 60 mm (material: 45# steel)
Roller Axis Model 60310
Side Wall Thickness 30 mm
Transmission By gear and chain
Motor & Speed Reducer 5 kW × 3 sets
Cooling System Equipped with water cooling
