Hot in Peru Roller Shutter Door Roll Forming Machine

Hot in Peru Roller Shutter Door Roll Forming Machine

Hot in Peru Roller Shutter Door Roll Forming MachineHot in Peru Roller Shutter Door Roll Forming Machine is the most popular type of roll forming machines. It m

Hot in Peru Roller Shutter Door Roll Forming Machine

Hot in Peru Roller Shutter Door Roll Forming Machine is the most popular type of roll forming machines. It makes different shape of roller shutter door slat, which is used in the construction of various roller shutter door, industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel . It has beautiful design, and widely used in all over the world.
We adopt export standard technical solution to make machine strong and stable enough.
Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.

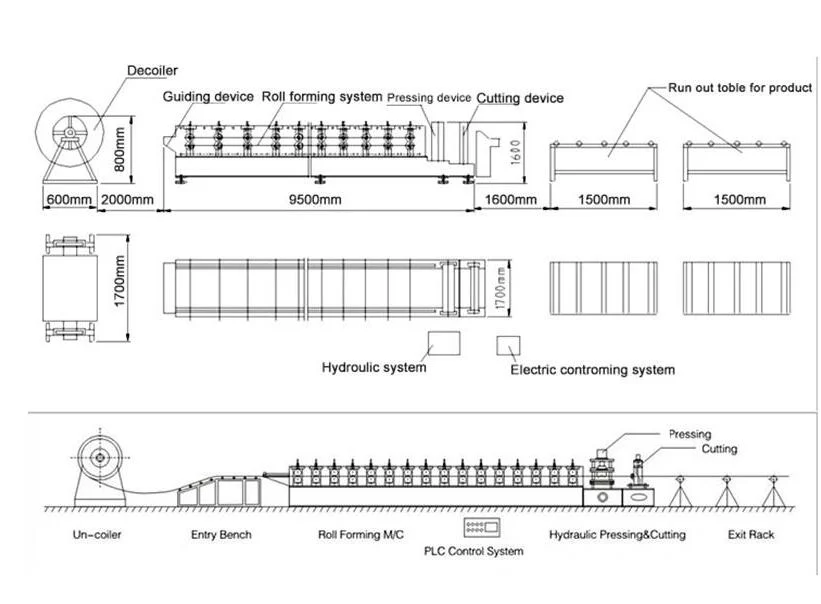

1. Production Process Diagram:



Uncoiling --- Feeding --- Roll Forming --- PLC Controlling --- Hydraulic Cutting (Punching)--- Receiving

2. Main Technical Specifications:

Name Hot in Peru Roller Shutter Door Roll Forming Machine
Raw Material Material Aluminium PPGI PPGL GI GL
Width 150mm
Thickness 0.7-1.0mm, customized
Power Required Power 380V 3Phase 50Hz, customized
Main Motor 5.5KW, Lichao, Shanghai/Siemens Brand
Cutting Motor 3.0KW, Lichao, Shanghai/Siemens Brand
Roll Forming Machine Support Frame Square tube frame welded
Forming Station 12 rows+3 Straighting rollers, exactly according to profile drawing
Structure 16mm
Shaft 45# high grade steel, 50mm, solid
Roller 45# high grade steel with heat treatment, hard chrome plated
Transmission Gear
Bearing Standard
Speed 8-12m/min
Electric Components Delta / Siemens / Mitsubishi
Cutting Blade Cr12Mov, quenched 58°-62°
Operation Touch Screen
Dimension 5.7*0.85*1.3M
Weight 2.4T

We also provide Safety Shield, Hydraulic decoiler, Automatic stacker for your better operation. It can save labor, save cost and can guarantee your production line more safer. Above all, it can improve your work efficiency !

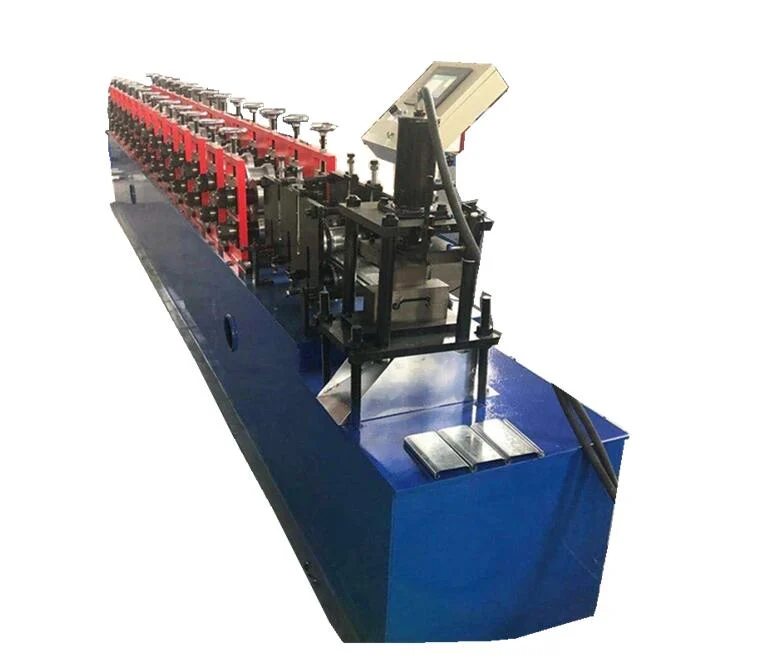

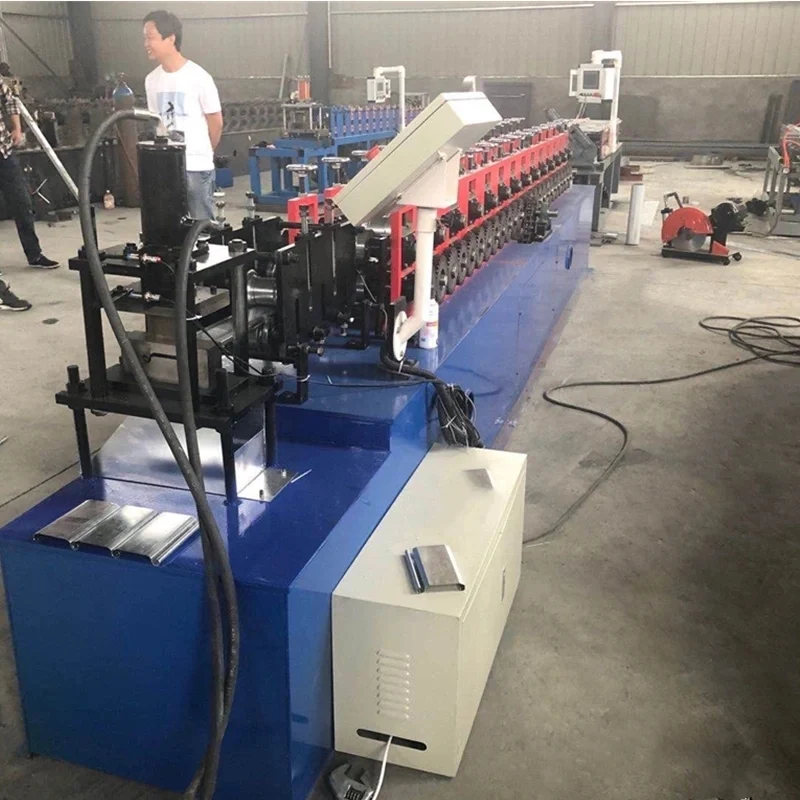

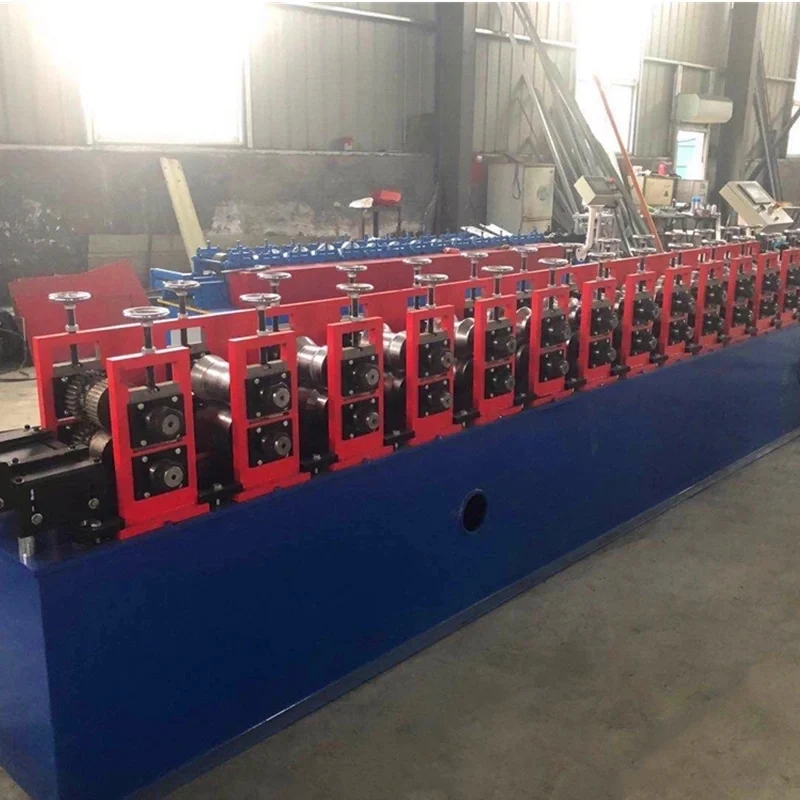

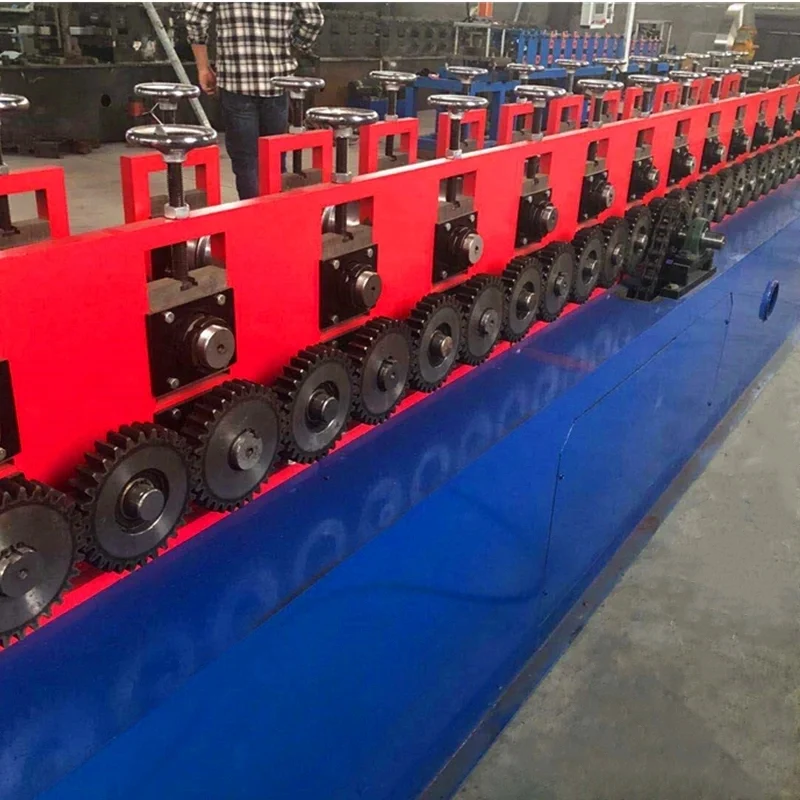

3. Pictures of Roll Forming Machine:
