trapezoidal roofing sheet long span roll forming machine

trapezoidal roofing sheet long span roll forming machine

Basic InfoModel No.: ZT-006Material Of Shafts: 45# SteelFrame: 350 H Steel WeldedDrive Mode: ChainNumber Of Rollers: 13 RollersDiameter Of Shafts: Φ80mmMain

Basic Info

Model No.: ZT-006

Material Of Shafts: 45# Steel

Frame: 350 H Steel Welded

Drive Mode: Chain

Number Of Rollers: 13 Rollers

Diameter Of Shafts: Φ80mm

Main Power: 5.5kw

Material Of Blades: Cr12 Quenched

Roller Fixer: Middle Plate

Delivery Time: 30 Working Days

Material Of Rollers: 45# Steel

Additional Info

Packaging: As customer's need

Productivity: 8-12 m/minute

Brand: Zhongtuo

Transportation: Ocean,Land

Place of Origin: China(mainland)

Supply Ability: 30 sets/month

Certificate: CE/ISO/SGS/IAF/CNAS.

HS Code: 84552210


Product Description

Trapezoidal roofing sheet Long Span Roll Forming Machine

Support you money !! Support you service !! Support you technology !!
PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!

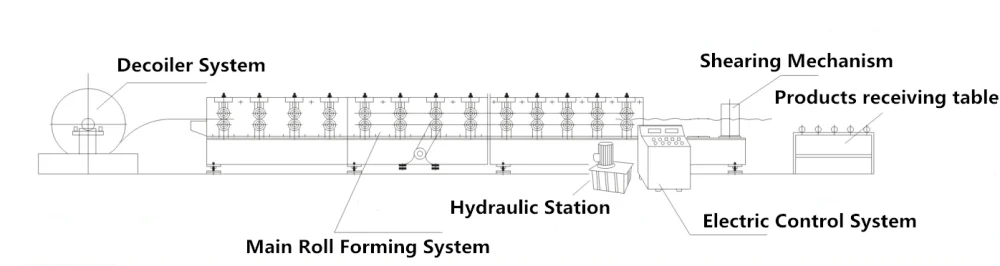

Trapezoidal roofing sheet long span machine 1

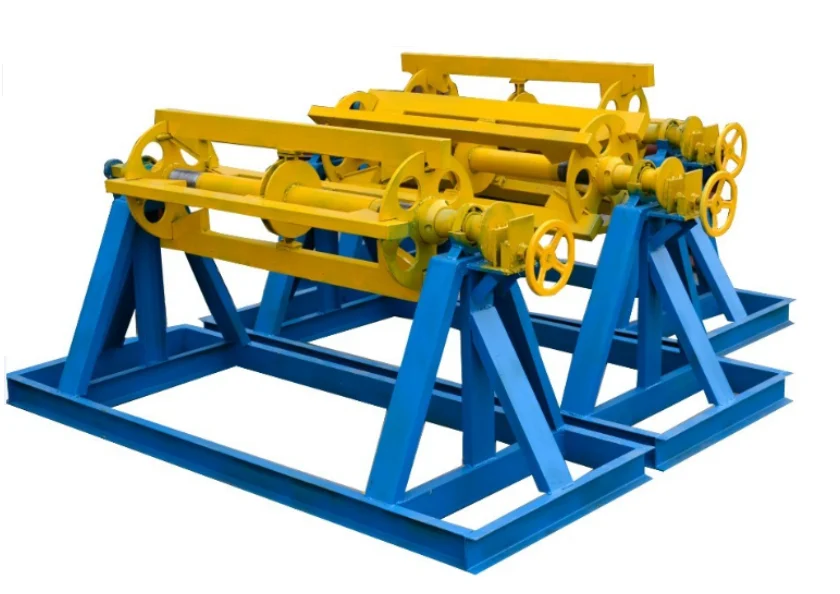

Trapezoidal roofing sheet long span machine Uncoiler System:
Usage: It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5T
Uncoiling width: 1500mm
Inner diameter: 450-550mm

Trapezoidal roofing sheet long span machine 2

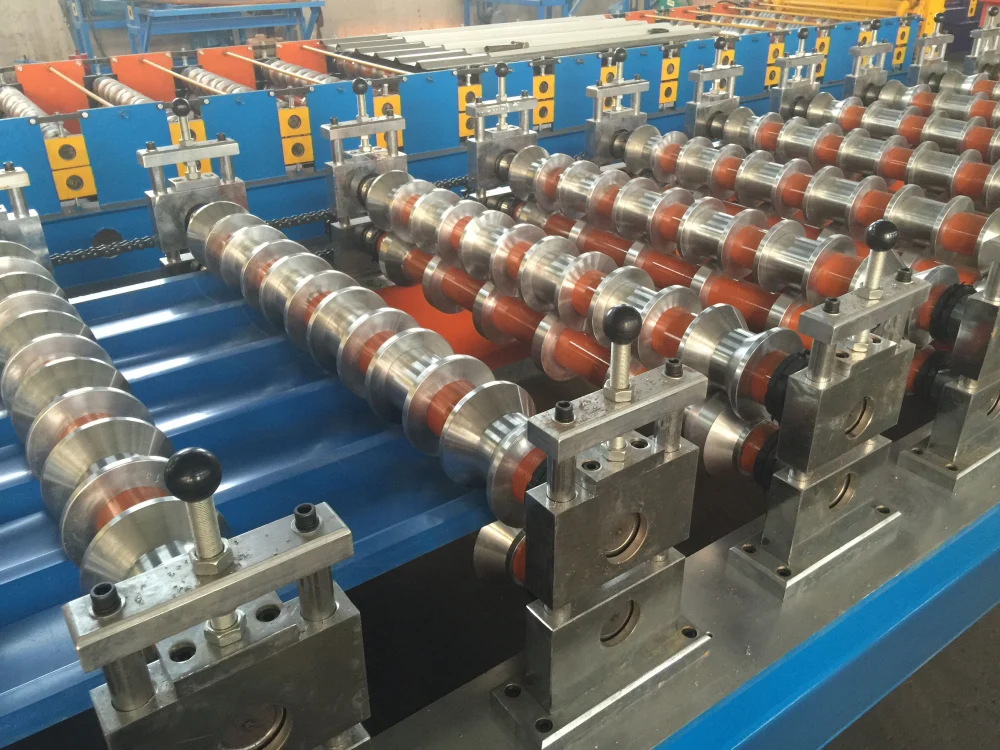

Trapezoidal roofing sheet long span machine Main Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 6500х1450х1500
Weight of main part: 3.8 tons
Voltage: 380v 50hz 3 phase
Roller fixer: middle plate
Frame: 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80mm
Number of rollers: 13 rollers
Main power: 5.5kw

Trapezoidal roofing sheet long span machine

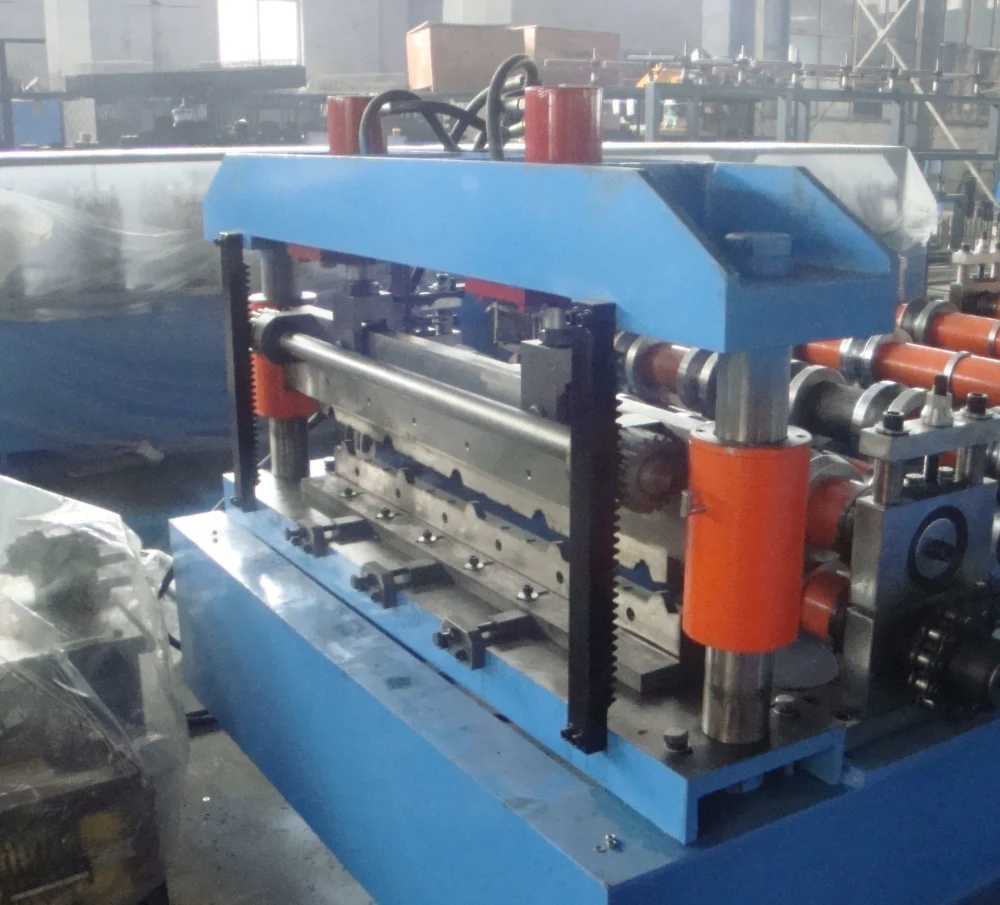

Trapezoidal roofing sheet long span machine Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Trapezoidal roofing sheet long span machine 3

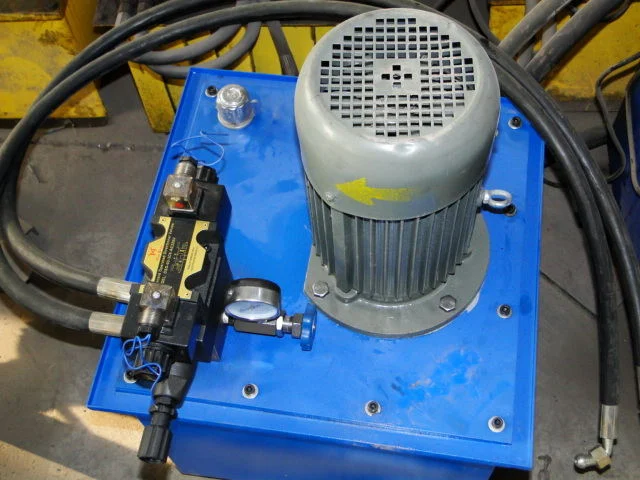

Trapezoidal roofing sheet long span machine Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 3kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.

Trapezoidal roofing sheet long span machine 4

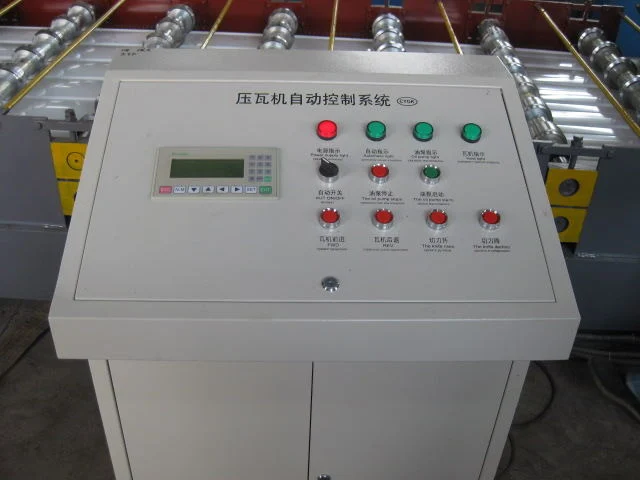

Trapezoidal roofing sheet long span machine Electric Control System:
1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Panasonic.

Trapezoidal roofing sheet long span machine 5
Trapezoidal roofing sheet long span machine Our Service:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the Roll Forming Machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.



Looking for ideal Long Span Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roofing Sheet Roll Forming Machine are quality guaranteed. We are China Origin Factory of Trapezoidal Roofing Sheet Forming Machine. If you have any question, please feel free to contact us.
