Detailed Product Description
Basic Info Model No.: ZT Tile Type: Colored Steel Certification: SGS, CE, ISO

Roofing Sheet Making Machine For Algeria
Detailed Product Description
Basic Info
Model No.: ZT Tile Type: Colored Steel
Certification: SGS, CE, ISO Condition: New
Customized: Customized Usage: Roof, Wall, Floor
Transmission Method: Hydraulic Pressure Control System: PLC Control
After Sale Service: Engineer Available To
Service Machine Abroad
Certificate: CE/ISO9001
Transmission: By Chain Width Of Material: Accroding To Client’s Request
Cutting Device: Hydraulic Cutting Payment: By T/T
Package: With Water Proof Paper Warranty: 5 Years
Product Name: Glazed Roof Sheet Forming Machine
 Additional Info
Packaging: Main machine is packed with water proof
paper, the computer control box is packed by carton box
Productivity: 30 sets per month
Brand: KAIYITE Transportation: Ocean,Land,Air
Place of Origin: China Supply Ability: 30 sets per month
Certificate: ISO9001/CE HS Code: 84552210000
Port: Tianjin Port,Shanghai Port,Qingdao Port
 Product Description
Roofing Sheet Making Machine For Algeria
Some client want to know what the roofing sheet making machine is . Actually this equipment belong to the cold bending machinery . It can form the metal roof sheet ( the roof sheet profile is according to the client requirement) by pressing several steps . The Metal Roof Roll Forming Machine has the PLC control system , we can set the length and pieces by entering the data in the PLC , so that the machine will cut the roof sheet into the setted length and quantity .

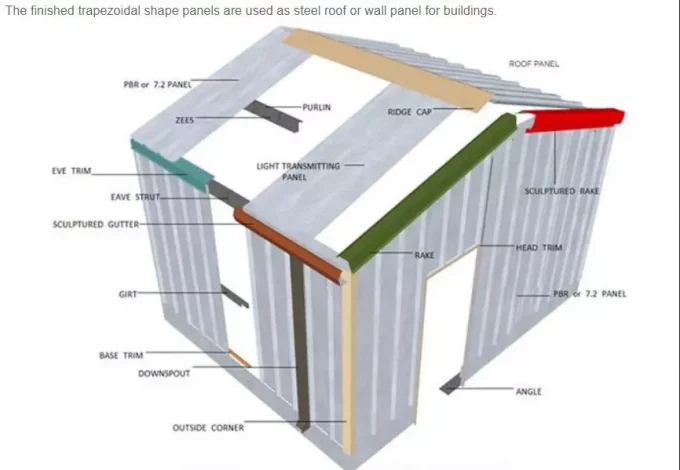

The following picture can help you understand much better for the application of the roof profiles .

Profile And Finished Roof profile by the Metal Roofing Panel Machine
The following drawing is designed for the Algeria client , depend on his needs , one machine can make the two different profiles . This profiles is very popular in Algeria .
Also the other advantage of this Roof Panel Roll Forming Machine is its speed , we adopt the gear box transmission system . so that it can reach 35 meter per minute , very fast compared with the common machine . Because the common machine can only reach 8-12 meter per minute . If the client has a large demant of the profile , this design is a good choice for you .

Main Specification Of Roof And Wall Panel Roll Forming Machine
No. Type Specification
1 Row Material Type Aluminum / Steel / Galvanized Panel
Feeding width 1200mm
Thickness 1200mm
2 Main body Roller station 22 Steps
Diameter of shaft ¢105mm
Shaft material 45# Steel , Heat Treatment and Polishing
Roller material 45# Steel , Heat Treatment and Polishing
Frame 400mm H Steel
Frame thickenss 22 mm
Operation Manual and Automatic
Working speed 30-35m/min
Size (L*W*H) About 11500*1650*1450mm
Weight About 3.5 Tons
Cutting type Hydraulic cutting
Material of blade Cr12, HRC60-62°C
3 Power Motor power 15 kw
Hydraulic power 4 kw
Voltage 380V 50Hz 3phases or Customerization
Driving way Gear box

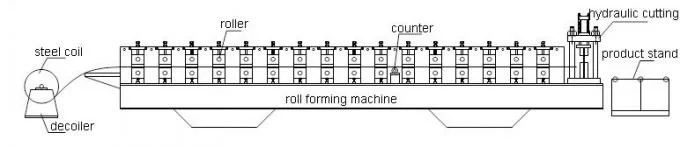

 Working Flow Of metal roof panel machine
5 Tons Decoiler — Panel Feeding And Guiding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting Device — Product Receiving Table

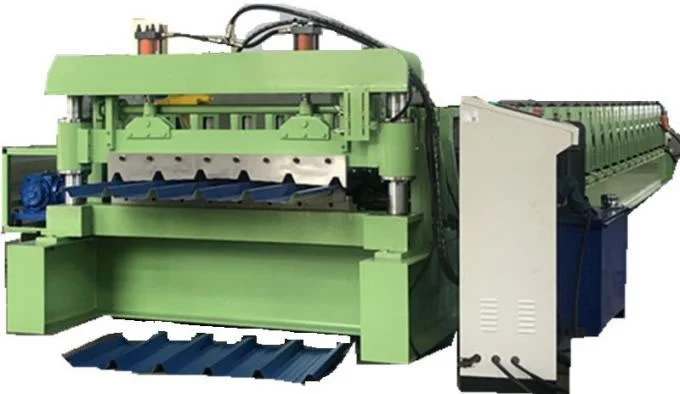

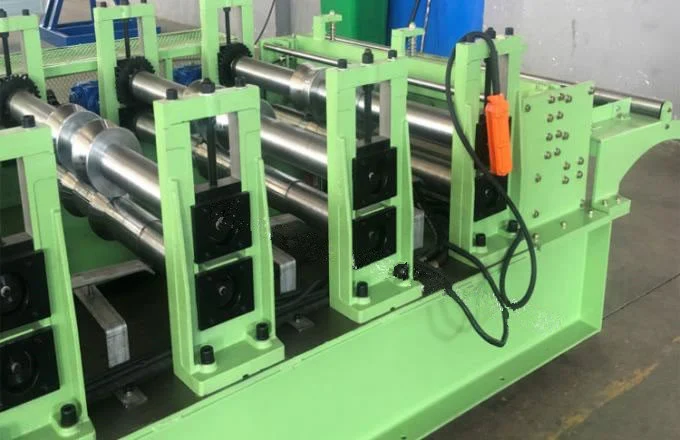

More picture of the metal roof roll forming machine



When we ship the roof panel machine to you , we will also send the client the necessary spare parts .
* 5T Decoiler………………………………1 Set
* Discharge Table………………………………2 Set
* The tool box ………………………………..1 set
Application
This type of sheet are widly used in warehouse, workshop, roofing and other part. It has a large market.

Loading And Shipping
* We will packed water proof paper on the machine .
* This Glazed Tile Roll Forming Machine need 1*40 GP container to load .
* Fix machine by steel wire rope, to ensure it will not damage when shaking on sea.
* We will take photos and videos for customer when loading to container .
