R101 trapezoidal sheet roll forming machine for Mexico

R101 trapezoidal sheet roll forming machine for Mexico

R101 trapezoidal sheet roll forming machine for Mexico is designed to make the metal roofing panel for Mexico to produce R101 popular roofing sheet.

R101 trapezoidal sheet roll forming machine for Mexico is designed to make the metal roofing panel for Mexico to produce R101 popular roofing sheet. The metal roofing sheet machine we designed could use two input coil width 914mm and 1220mm, the working speed is around 15 to 20 meter per minute. The following part, let us check the drawing profile. When you use the input the coil width of 914mm, it has 6 waves. When you use the coil width of 1220, it has 8 waves. Simple adjusting the leveling beach and then it can switch from those two different input coil width.  This machine is popular in Mexico, Guatemala, Honduras, Costa rica, Colombia… If feeding this roll former raw material 914mm or 36 inch width, machine will make R72. If feeding 1220mm or 48 inch, machine will make R101only feed different width raw material, no need to change machine.

R101 trapezoidal sheet roll forming machine for Mexico we designed like this:

The R101 trapezoidal sheet roll forming machine is composed by the following elements:
1. Manual Decoiler
2. Feeding Platform
3. Roll Forming Machine
4. Hydraulic Cutting Device
5. Pump Station
6. PLC Control System
7. Receiving Table
R101 trapezoidal sheet roll forming machine Working Process
   The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep prodcts accurate.

R101 trapezoidal sheet roll forming machine Parameters
NO Type Specification
1 Raw material Type PPGI/GI
Material width 1220 mm
Thickness 0.3-0.6 mm
2 Decoiler Operation Manual
Weight apacity 5 Tons
3 Roll Forming Machine Roller station 16 steps
Diameter of shaft 70 mm-0.01~0.03
Shaft Material 45# with 0.05mm chrome
Roller Material 45# Forged Steel
Transmission Gear & Sprocket
Bearing Type 6210
Under Frame H-beam
Sidewall Frame 16 mm Steel Plate
Driving Type Servo Motor 7.5KW
Cutting Type Guide Pillar with Electrical Motor 3.0KW
Cutting Blade Cr12Mov
Voltage 380V/50HZ, 3 phase
Working speed 20-25 m/min
5 Control box Electric box Import Brand PLC control system, inventer
PLC brand Delta/Siemens/Pansonic
Inverter brand Delta/Siemens/Sanjing
Language Chinese / English

More details of R101 trapezoidal sheet roll forming machine:

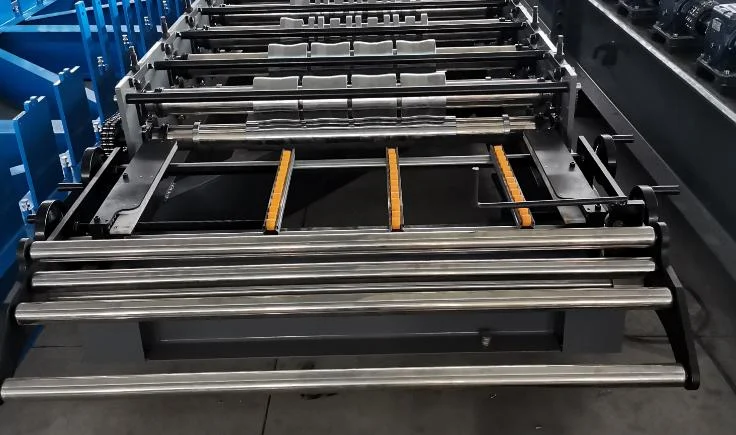

1.The leveling part, we designed with the plastic rollers to protect the surface of the coil. We also add the manual cutter for cut the untidy part or you can cut the coil at any place.

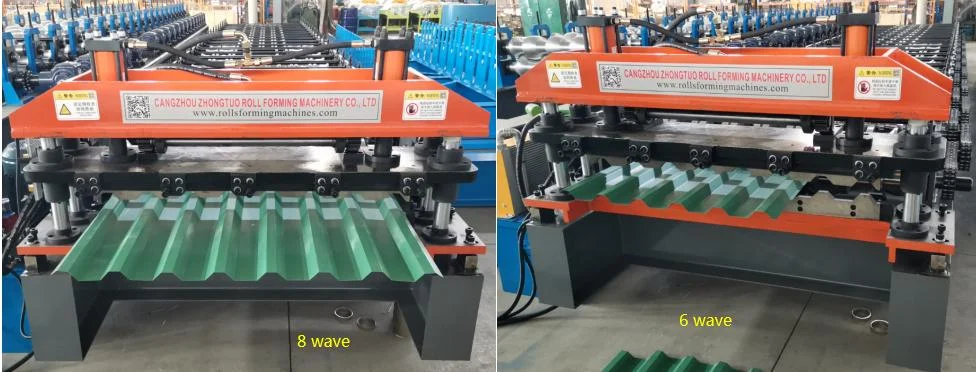

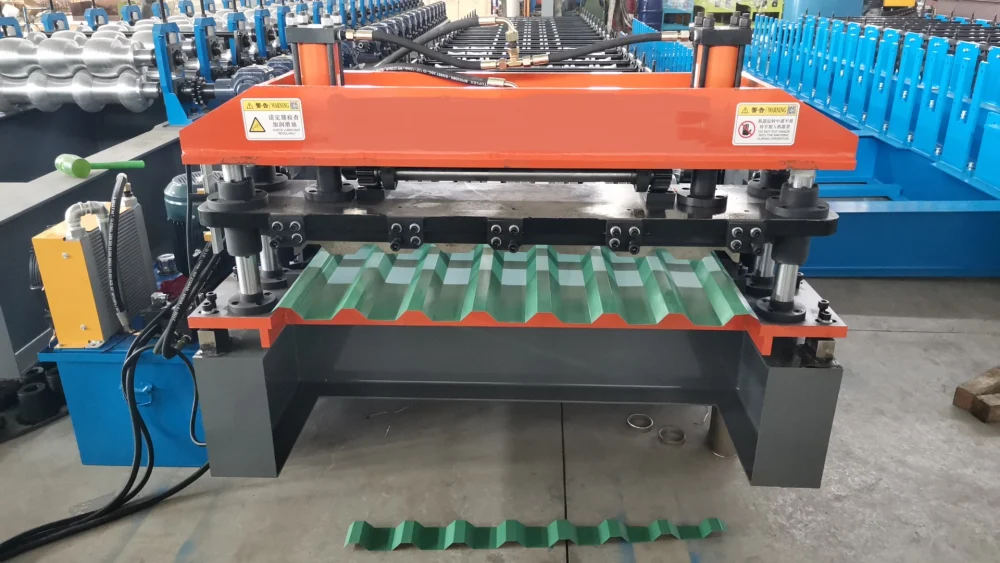

2.The cutting head both can cut 6 waves and 8 waves in the perfect way.

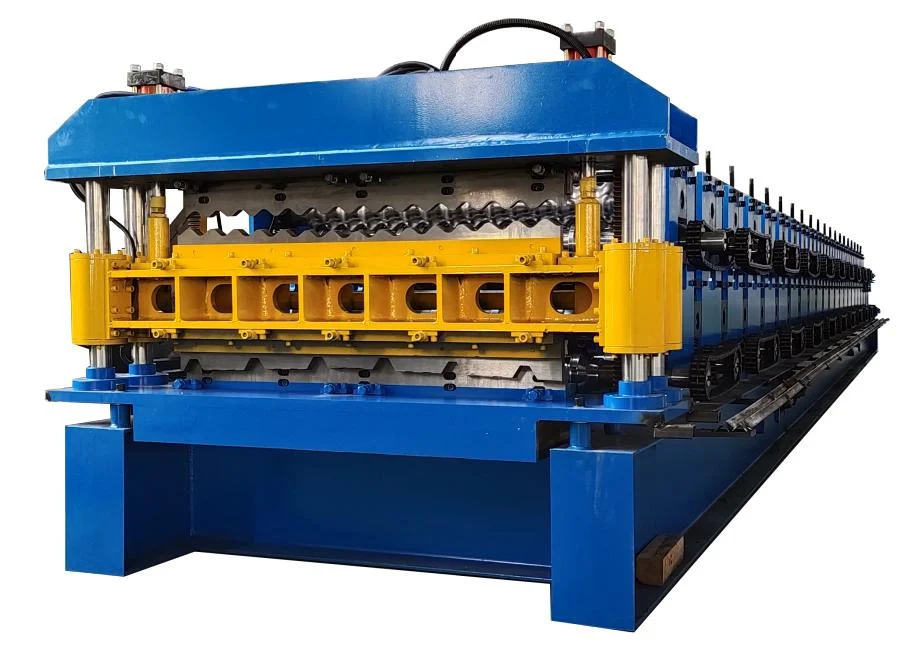

R101 trapezoidal sheet roll forming machine also could be designed to double layer types, add other profiles then the machine will be like the following pictures:


Advantage of double layer rolling forming machine:
Save space for freight and factory installation.
Disadvantage:
One time only forming one layer, it is suitable for production not big.
If production big, we suggest you buy two individual machines, they can work at same time.
For this machine, if you want to know more information, please contact us at any time.
R101 trapezoidal sheet roll forming machine for Mexico working video for your reference:
