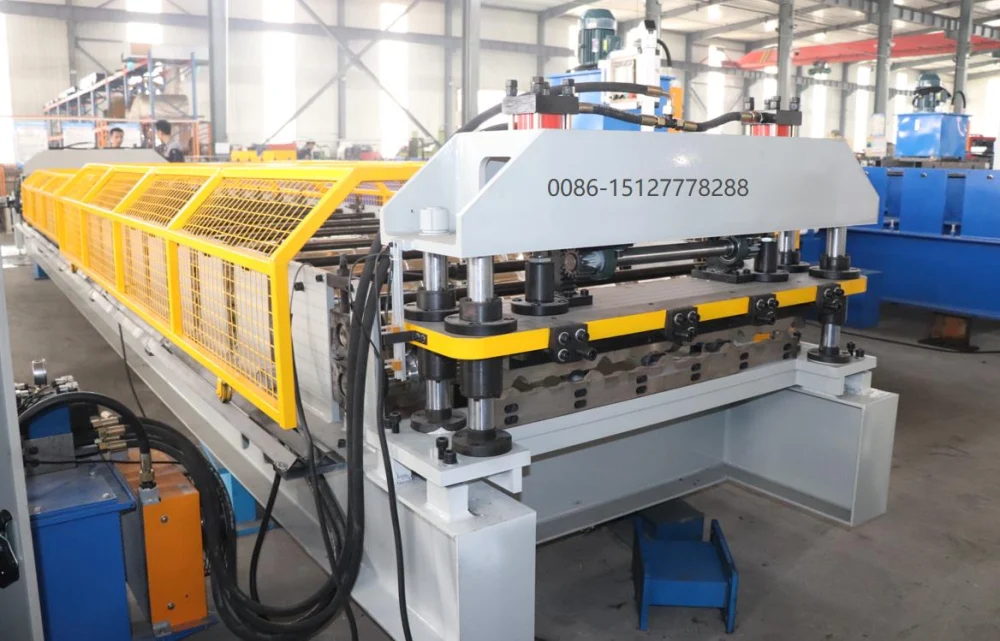

New finished steel AG panel roll former for American market metal ag roof sheet making machine

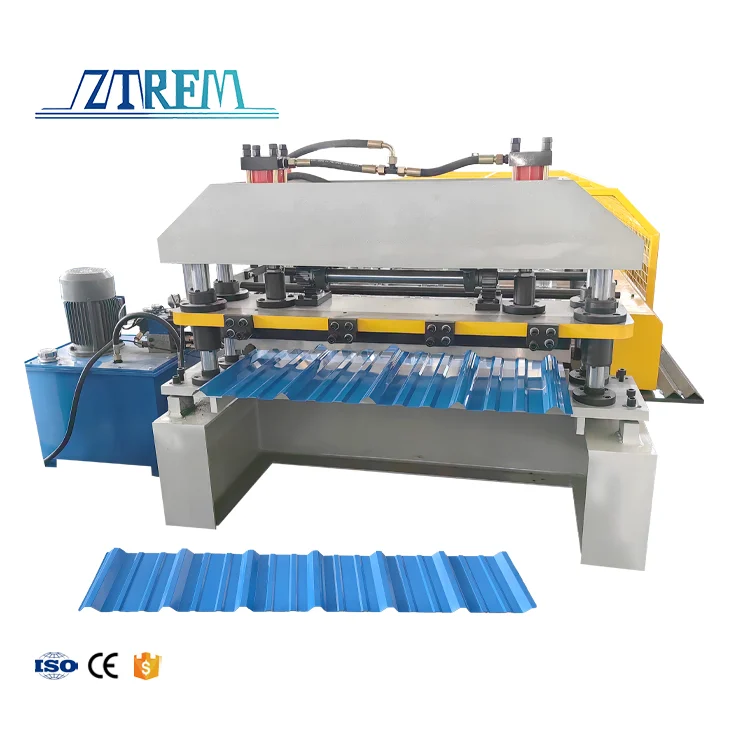

AG ROOF PANEL MACHINE. 36″ AG panel roof making machine. A very popular panel machine in America. It can produce 5 ribs, 36 inch wide finished panel, 3/4 inches high and 9 inches on centers with 8 small ribs roof. It can be cut to any length, you just set the length and roof sheet quantity on the PLC of zhongtuo roll forming machine. It is very easy installation and very easy to operate, we can also produce protection cover for your AG panel roof sheet machine, and increase pre shearing function of your roll former to save the material waste cost because coil cost is very expansive in American market. Below is our machine specification but all can be custom sized, please tell us freely if you have special request on our roll forming machines.
How to produce a high quality stable Ag panel roof sheet roll former ? please check our ZTRFM machine more detail in the below:
To match with this machine, you can also choose hydraulic unwinder and automatic stacker, below is the full line working videos:
AG ROOF PANEL MACHINE. 36″ AG panel roof making machine. A very popular panel machine in America. It can produce 5 ribs, 36 inch wide finished panel, 3/4 inches high and 9 inches on centers with 8 small ribs roof. It can be cut to any length, you just set the length and roof sheet quantity on the PLC of zhongtuo roll forming machine. It is very easy installation and very easy to operate, we can also produce protection cover for your AG panel roof sheet machine, and increase pre shearing function of your roll former to save the material waste cost because coil cost is very expansive in American market. Below is our machine specification but all can be custom sized, please tell us freely if you have special request on our roll forming machines.
| American Popular AG Panel Metal roofing sheet roll forming machine | ||||
| 1.Formed Material | PPGI,PPGL | Material Thickness:24/26 Gauge （0.4-0.6 mm) Width:42-43inch(1066-1092mm) |
||
| 2.Decoiler | Hydraulic decoiler(optional) | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 18 rows | ||
| Diameter of shaft | 80mm solid shaft | |||

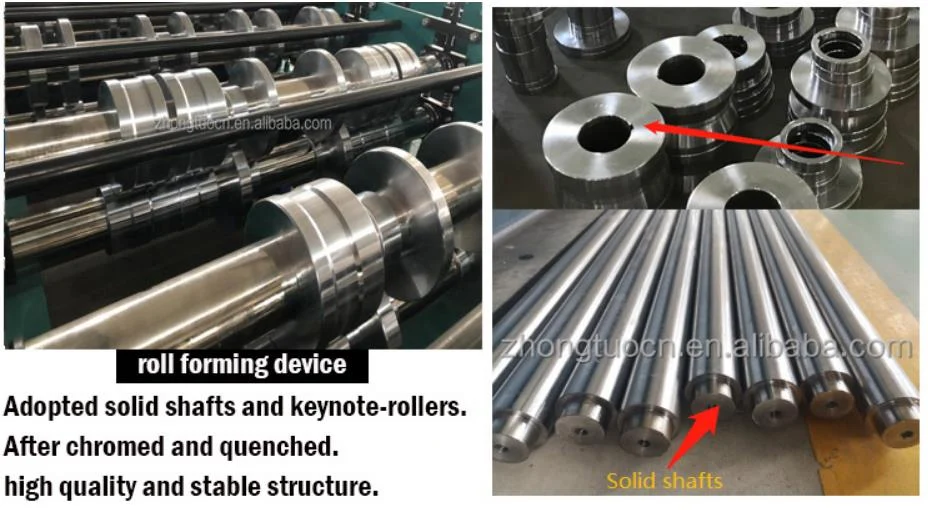

| Material of rollers | High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm) | |||
| Machine body frame | 350mm H Beam Structure, With 20mm Welded Steel Middle Support Plate. | |||
| Drive | gear and Double Chain transmission | |||
| Dimension(L*W*H) | 10m*1.65m*1.5m | |||
| Weight | 7.5T | |||
| 4.Cutter | Automatic | Cr12MoV Quenched treatment | ||
| 5.Power | Motor Power | 7.5KW | ||

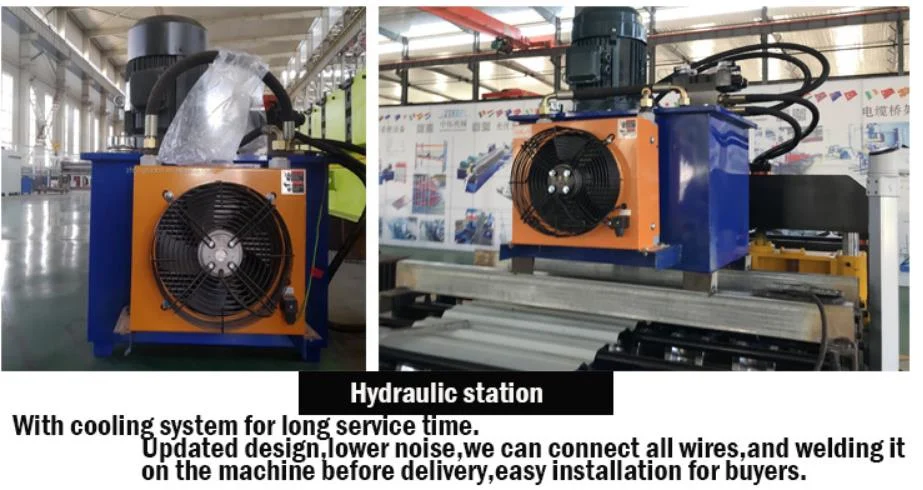

| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||

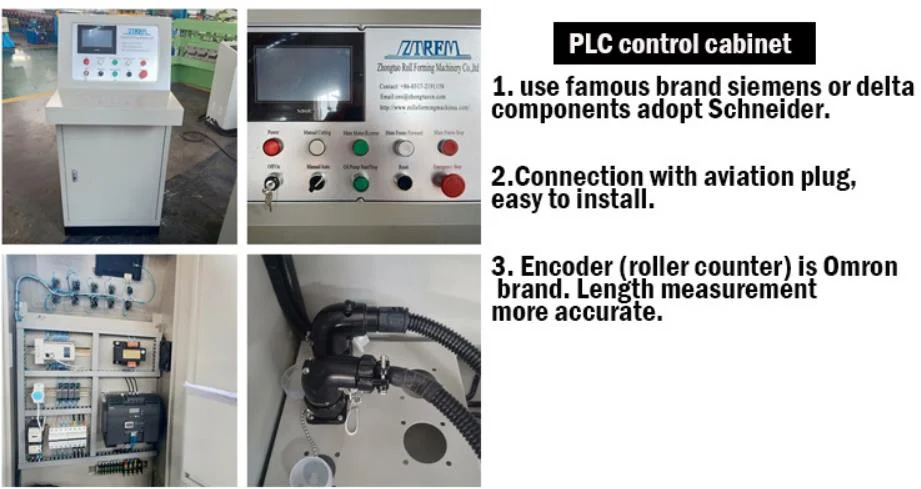

| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15-20m/min | The speed is adjustable | ||
