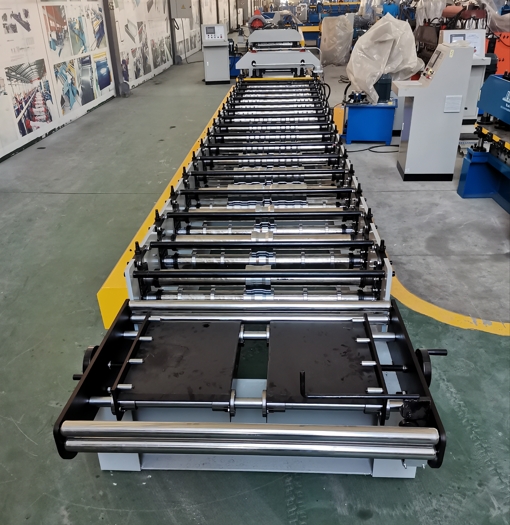

Russia Style Roof  Sheet Panel C8 C10 C21 C44 Roll Forming Machine

Russia Style Roof Sheet Panel C8 C10 C21 C44 Roll Forming Machine

PPGI Iron sheet galvanized sheet C8 C18 C20 C21 roof wall panel roll forming cutting machine

The Russian Style Roof Panel C8/C10/C21/C44 Roll Forming Machine r

PPGI Iron sheet galvanized sheet C8 C18 C20 C21 roof wall panel roll forming cutting machine

The Russian Style Roof Panel C8/C10/C21/C44 Roll Forming Machine represents a pinnacle of engineering ingenuity tailored specifically for the demands of roofing construction in Russia and neighboring regions. Renowned for their durability and ability to withstand harsh weather conditions, Russian-style roof panels are essential for ensuring the longevity and stability of structures in these climates.
1.Formed Material PPGI,PPGL,AI,Etc. Material Thickness:0.3-0.8mm
2.Decoiler Hydraulic decoiler(optional) Manual decoiler(will give you as free)
3.Main body Roller station Due to your requirement profile
 Diameter of shaft Due to your requirement profile
Material of rollers High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
Machine body frame Due to your requirement profile
Drive Gear and Double Chain transmission/gearbox transmission optional
Dimension(L*W*H) Due to design
Weight Due to design
4.Cutter Automatic Cr12mov material, no scratches, no deformation
5.Power Motor Power 7.5KW(normally)
Hydraulic system power 5.5KW
6.Voltage As your requirement As your requirement
7.Control system Electric Box Customized(famous brand)
Language English/Russian
PLC Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed 0-20m/min Provide customized

Please check popular drawings on Russia market


  1. Customization: Roof sheet machines are highly customizable, allowing for the production of various types of roofing sheets with different profiles, dimensions, and materials. This versatility enables manufacturers to meet the diverse needs and preferences of customers.

  2. High Efficiency: These machines are designed for high-speed production, allowing for rapid manufacturing of roofing sheets. With automated processes and precise controls, they can produce large quantities of sheets in a relatively short amount of time, maximizing productivity. All of our rollers are with hard chrome coating 0.3mm thickness, so the rollers are with longer service life and will not rust.

  3. Ease of Operation: Modern roof sheet machines feature user-friendly interfaces and automated controls, making them easy to operate and maintain. This reduces the need for specialized skills and training, enabling operators to quickly familiarize themselves with the equipment and perform tasks efficient. our machine is also with avitated plug, easy to do installation.
