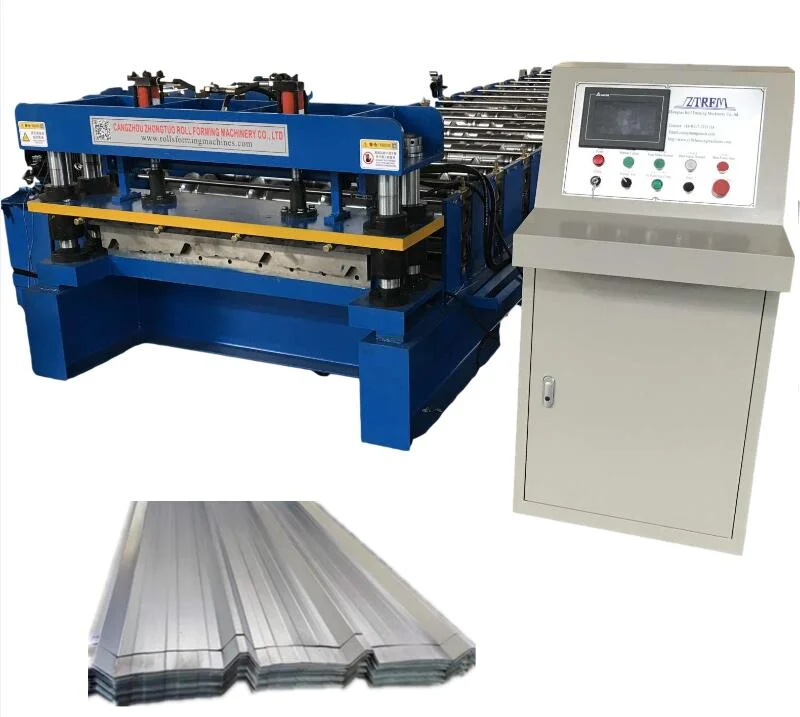

Trapezoid automatic metal sheet roof tile making roll forming machine
Trapezoid automatic metal sheet roof tile making roll forming machine
Trapezoid automatic metal sheet roof tile making roll forming machine is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages
Detailed Content
| Trapezoid automatic metal sheet roof tile making roll forming machine |
||||
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:1000mm/1250mm(customized) |
||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
||
| 3.Main body | Roller station | 18 rows(As your requirement) |
||
| Diameter of shaft | 80mm solid shaft |
|||
| Material of rollers | 45# steel, hard chrome plated on the surface |
|||
| Machine body frame | 350 H steel |
|||
| Drive | Chain transmission |
|||
| Dimension(L*W*H) | 9500*1600*1600(customize) |
|||
| Weight | 6.5T |
|||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
||
| 5.Power | Motor Power | 5.5KW |
||
| Hydraulic system power | 5.5KW |
|||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
||
| 7.Control system | Electric Box | Customized(famous brand) |
||
| Language | English(Support multiple languages) |
|||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
|||
| 18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. |
||
Products Display
Machines are customized as your drawing,here hot sale drawing profiles for your reference.
