High efficiency automatic fire damper smoke damper making machine
High efficiency automatic fire damper smoke damper making machine could be used to make the fi

High efficiency automatic fire damper smoke damper making machine
High efficiency automatic fire damper smoke damper making machine could be used to make the fire damper smoke damper in batch and fully automatic. The machine working speed
can reach 25 meter per minute.

What is the fire damper smoke damper?
It is installed on the air supply and return air ducts of the ventilation and air conditioning system. It is normally open. When the smoke temperature in the pipeline reaches 70 degrees, it
will be closed during the fire, and the smoke leakage and fire integrity requirements can be met within a certain period of time. It acts as a fire barrier. Grandaire Fire dampers Series can
be installed on walls, light walls and floorsThey are designed as safety dampers.Shut off of air flow in cases of fire.

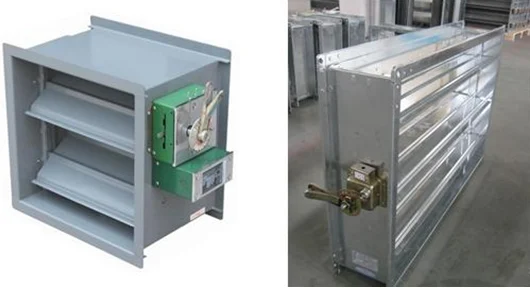

Take the following pictures for example:
1

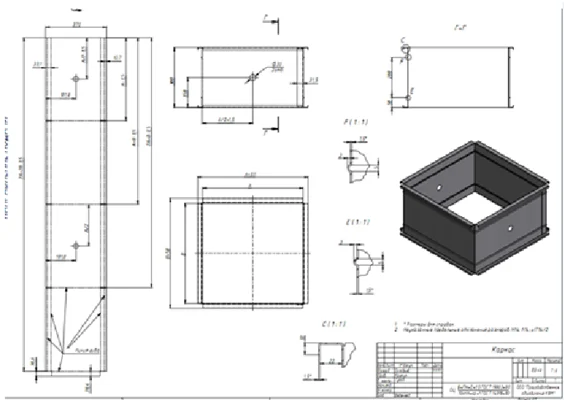

Fire damper drawing profile for your reference:
2

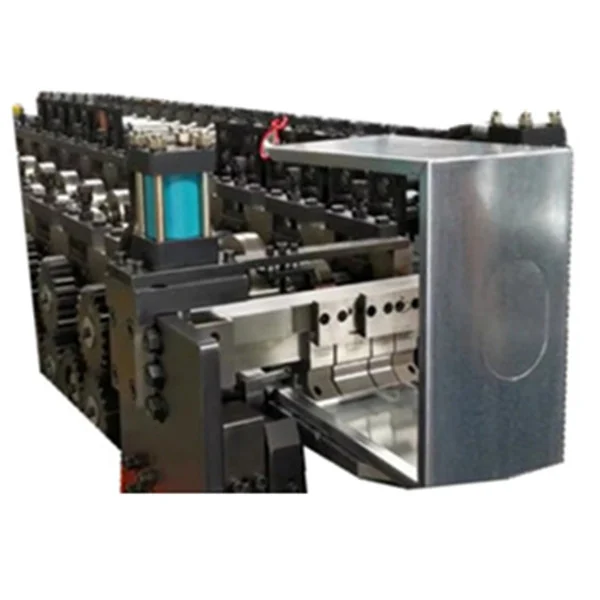

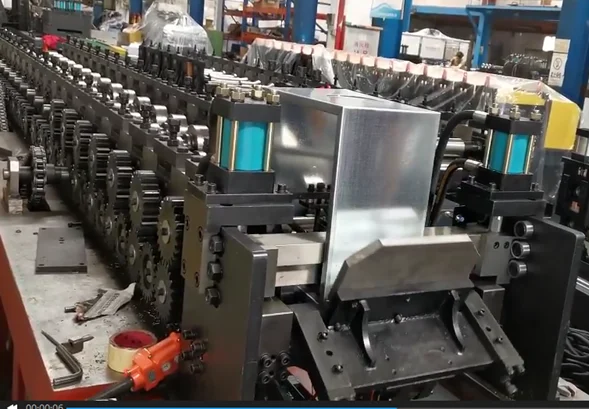

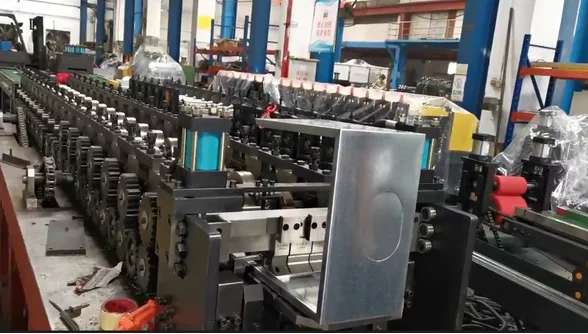

High efficiency automatic fire damper smoke damper making machine is designed like the following:
3


4




High efficiency automatic fire damper smoke damper making machine parameters for your reference:

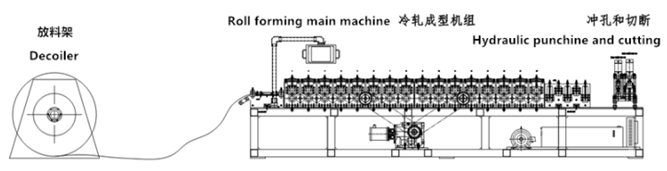

Automatic fire damper smoke damper making machine working flow:
5




Roll forming main machine Roller number:14 sations (bigger roller design ensures perfect product shape and prolong machine life time)
Leveling roller: 1 station
Roller material:Cr12
Roller heat treatment: Quenching HRC58-62°
Bearing:Japan NTN OR SKF original
Roll shaft:45#
Roller shaft diameter:φ50mm
Servo motor:5.5KW Japan Panasonnic original
Hardened reducer:K87-49.16-SF180-A-M1 (hardened reducer is the best reducer, better than Cycloidal needle and Turbine worm reducer )
Roll forming speed:8-12m/min
Roll forming main machine weight:1200Kg
Roll forming main machine:4500X900X1500mm (L.W.H)


High efficiency automatic fire damper smoke damper making machine:
1.The fire damper machine could do the punching and shearing fully automatic. It can cut the coner and do the bending all online.
2.The working speed can reach 25 meter per minute.
3.We use the gear transmission to make sure the machine is high speed and smart.
4.It uses the world famous brand PLC, motor and others to make sure it can give high accuracy and long time to use. Meanwhile even if something happened, it can change easily.
