Underground mining 39mm 47mm split set friction rock bolts stabilizers roll forming machine
Split Set friction rock stabilizers are used for underground or surface support in many applications:
1. Underground Mine Roof Support & Mine Roof Bolting
2. Ground Support for Tunnels and Other Excavations
3. Ground Support for Surface Jobs
Varied Applications for Split Set Rock Bolt Systems where Stabilize, Hold and Control are Necessary:
Water tunnels Shaft walls Sewage tunnels Underground storage caverns Road tunnels
Pipe and ventilation ducts Conveyor belts Trolley wires Surface excavation slopes Highway cuts
Split Set Rock stabilizers are an easy solution to your ground support, mine roof support and other stabilizing, holding, or anchoring problems. They are cost effective and simple to install.

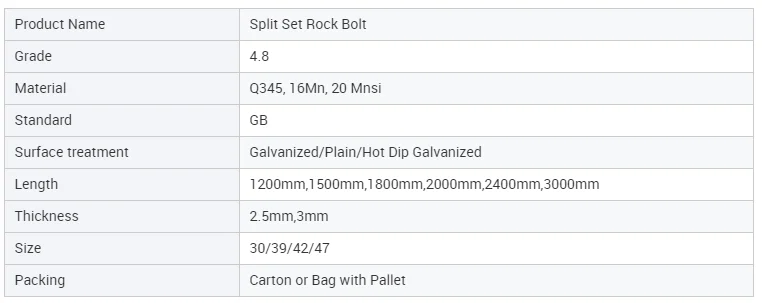

Underground mining rock anchor bolt split set Parameter:
Split set friction anchor rock bolt machine main parameters:
Brief introduction: our machine adopt middle plate welded base and memorial arch structure, the base and the structure is heavy duty and high precision, they can guarantee the stable and lifetime of the machine. Our machine adopt the gear box transmission, motor reducer drive. When cut the product to length, the cutter will punch the notch on the end at the same time.
The machine was composed by the following elements: passive manual decoiler, main roll forming machine, shearing system, computer control desk, hydraulic oil station, receiving table.
| Item name | Parameters |
| Decoiler | 3t loading capacity manual decoiler |
| Feeding rollers | 2 rollers |
| Guiding rollers | 4 rollers |
| Forming rollers | 7 rollers |
| Transmission | Gear box |
| Drive motor power | 15kw |
| Voltage | 380v 50hz 3phase or as require |
| Machine structure | Memorial arch roller fixer with middle plate weld base |
| Forming speed | 0-15m per min |
| Supported material | 2.0-2.5mm |
| Shaft diameter | 70mm |
| Roller material | GCr12 with quench treatment (we can give you 5 years warranty) |
| Hydraulic station power | 5.5kw (supply power for notching and shearing) |
| Main forming machine size | About 5500 mm×1500 mm×1300 mm |
| PLC computer control | Delta brand (famous) from TAIWAN |
| Shearing type | Hydraulic power stop shearing and at the same time make the notch |
| Receiving table | 3.0m length one 1 piece |

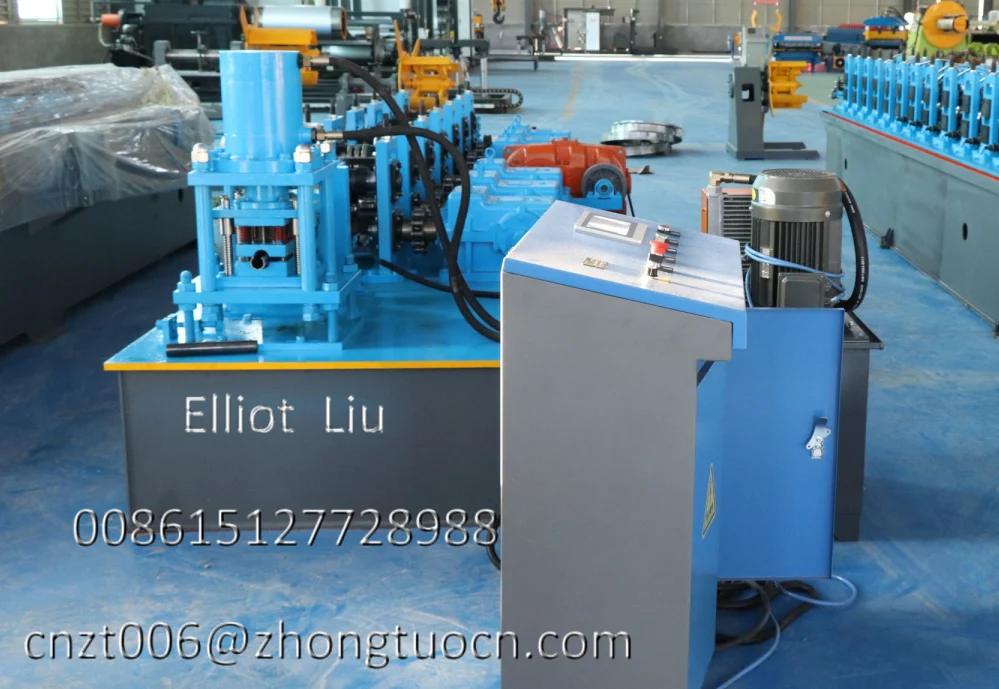

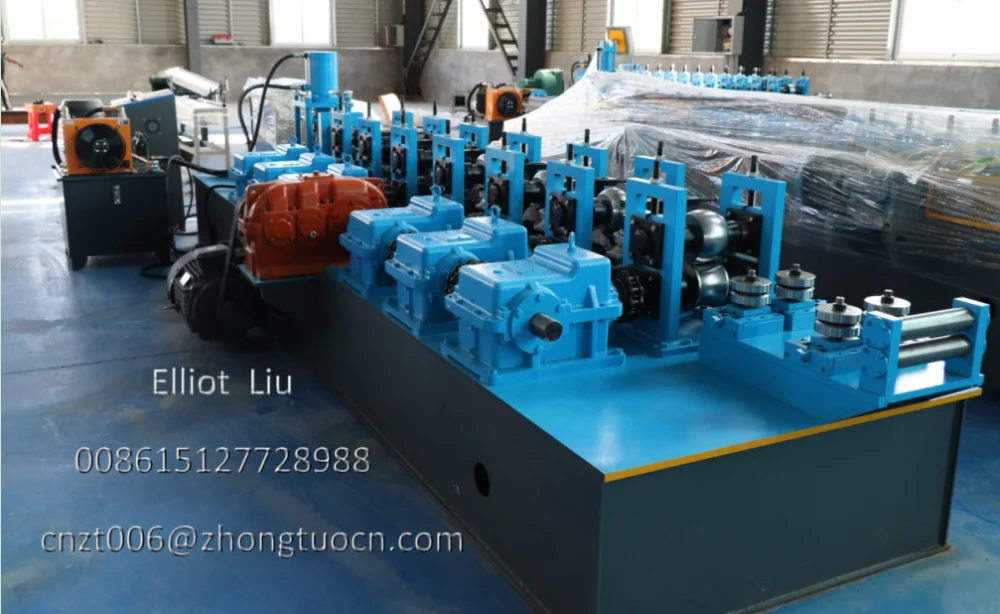

Our machine photos for you reference:

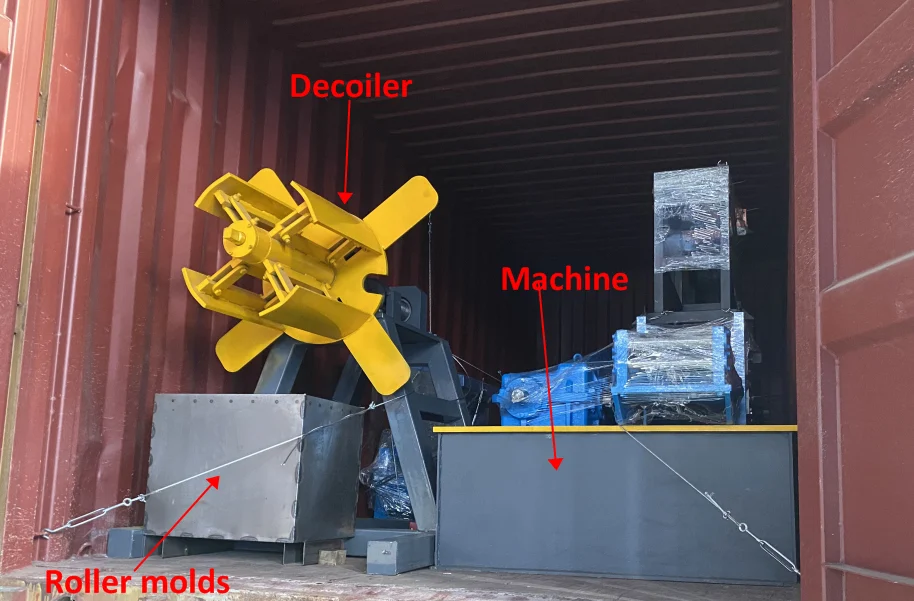

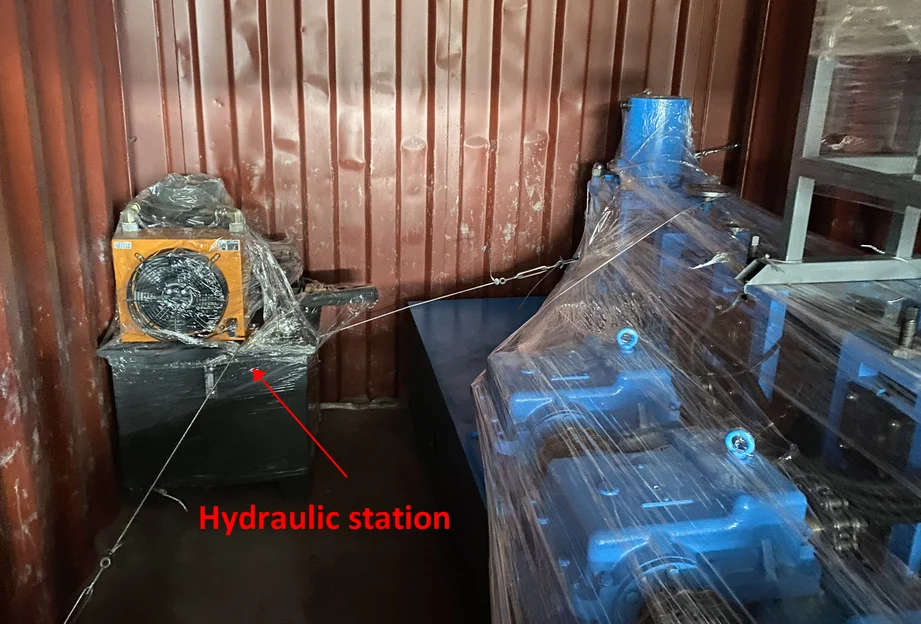

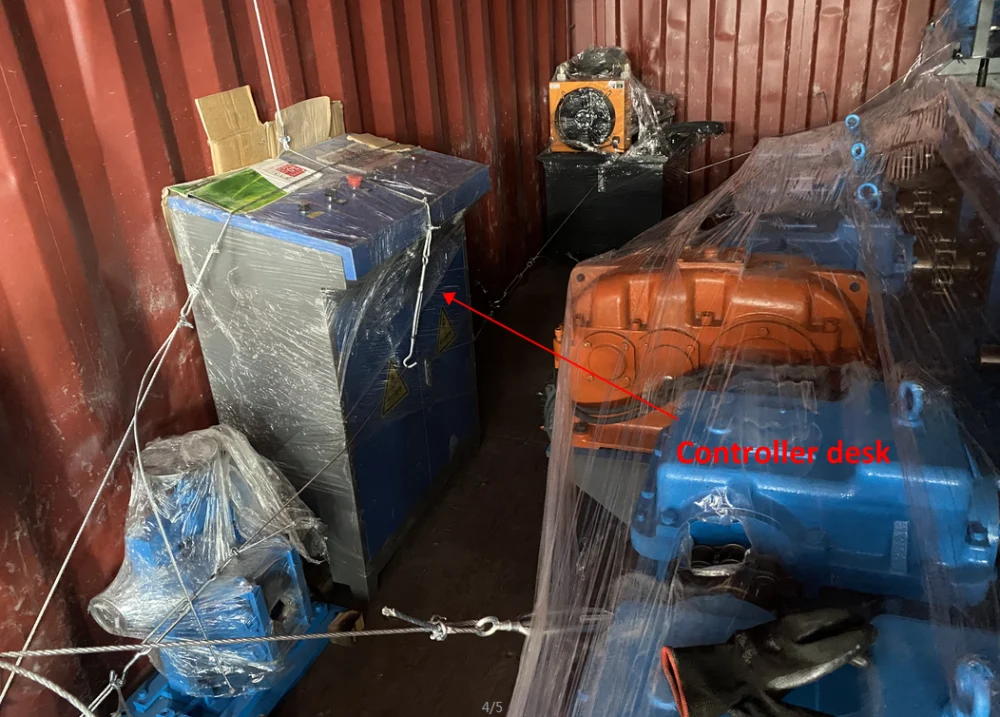

The rock bolts container loading photos for you reference:
