Angle Roll Forming Machine
Support you money !! Support you service !! Support you technology !!
PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!
Angle Roll Forming Machine is a strip of raw materials, through continuous cold rolling molding, production of complex cross-section profiles, which consists of decoiler, guide rack, forming hosts, calibration device, cut-off part, receiving station , composed of electrical control and so on. It is easy to use, easy to operate and so on.
Material Processing material: colored steel plate, galvanized plate, or aluminum plate Material thickness: 0.4---0.8mm Material hardness: 550 mpa---350 mpa Forming speed: 20m/min Technological process Uncoiler-feeding system-roll forming machine-cutting system-table
Uncoiler system Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system Loading capacity:1500kg Uncoiling width:300mm Inner diameter: 450-550 mm
Entry Beach: Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Main Roll Forming System: Feature : Ensure stability , precision and lifetime. Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Length of the main part: about 3000 х800 х1400 Weight of main part: 3000kg Voltage : 380 V/50HZ 3Phase or as your required Roller fixer : middle plate Frame : 450 H steel welded Drive mode: gear Material of rollers:GCr12MoV, surface hard chromium plating. Material of shafts: 45# steel with tempering Diameter of shafts: φ 40mm Number of rollers : 10 rollers Main power: 3 kw

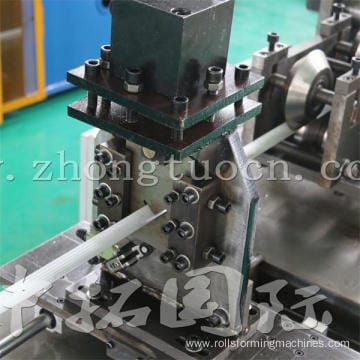

Shearing Mechanism: Feature : Ensure stability, precision and cutting speed Function : Automatic cutting controlled by PLC It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12 quenched Power supply : hydraulic power Components:It contains one set of blade , one hydraulic tank and one cutter machine.
Hydraulic Station: It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Power: 5.5 kw Hydraulic oil: 46 # Electric Control System
Feature: 1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime. 2. Other electric element are Panasonic Counter : One counter gauges length, pulses, and decides length. Omron encoder for length measurement. Products receiving tables It adopts welded steel and supported roller to transmit the products. Accessories : 1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. Rubber mat 1 pcs; 3.Bolt spanner 1 pcs.
Payment terms: Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment. Delivery: within 45 working days after receipt of deposit. Warranty: 1. One year, and we will provide the technical support for the whole life. 2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary. 3. Need one technician. 4. Training time: one week (contains the time of installation and adjustment)
Looking for ideal Angle Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Angle Roll Forming Machine are quality guaranteed. We are China Origin Factory of Angle Roll Forming Machine. If you have any question, please feel free to contact us.
