Corrugated Sheet Roll Forming Machine
Roof Panel Machine
Machine Description Corrugated Sheet Roll Forming Machine Roof Panel Machine
To carer for customer's differrent request, we can customize our Corrugated Sheet Roll Forming Machine Roof Panel Machine as to clients' drawings or requirement.If you want the price, pls help us to confirm the machine types and engineering drawings at first.This types of machine is widely use in producting of metal roof panle making machine for its practicability and reasonable price.Additionally the roof panel made by it is very popular in the market.
Production Process of Corrugated Sheet Roll Forming Machine Roof Panel Machine
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

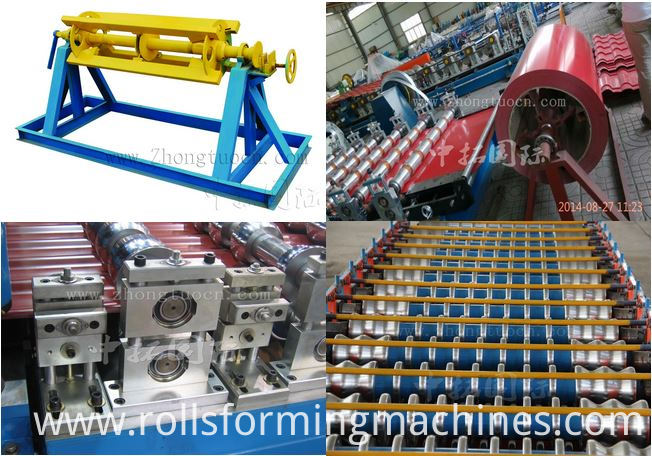

More pictures about our Corrugated Sheet Roll Forming Machine Roof Panel Machine
Parameters of Corrugated Sheet Roll Forming Machine Roof Panel Machine
Material Type:GI/PPGI/AL
Material Width:1000/1200/1220/1250mm(customized)
Material Thickness:0.3---1mm
sheet length:any length
Length Tolerance:±2mm/6m
Working Speed:8m/min(standard machine)
Control System:Mitsubishi/Siemens PLC& transduce(customized)
Total Power:About8.5 KW
Total Weight:About 10T(up to final design)
Loading-capacity:5 T
Uncoiling-width:1000/1200/1250 mm
Inner-diameter: 450-550 mm
Frame : 350 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Length of the main part:8650*1650*1500 mm
Voltage:380 V/50 HZ 3 Phase
Roller fixer : middle plate
Material of shafts: 45#steel
Diameter of shafts: 80 mm
Number of rollers : 18 rollers
| Delivery date | 25 working days |
| Payment Method | 30% T/T in advance and balance 70% after inspection confirmation before shipment. |
| Warranty | 1. One year, and we will provide the technical support for the whole life. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment) |
Looking for ideal Corrugated Cold Panel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Corrugated Color Roof Sheet Roll Forming Machines are quality guaranteed. We are China Origin Factory of Corrugated Metal Color Sheet Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Roofing Sheet Roll Forming Machine > Corrugated Roof Roll Forming Machine
