New double layer roof tile roll forming machine
New double layer roof tile roll forming machine
New double layer roof tile roll forming machine
New double layer roof tile roll forming machine
New double layer roof tile roll forming machine

New double layer roof tile roll forming machine

Unit Price: USD 25000 - 6000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005

    Name: Double Layer Roll Forming Machine

    Size: 7*1.6*1.7m

    Color: Blue

    Weight: 7t

    Frame: Pillar

    Roller: 16

    Voltage: 380V

    Motor: 4KW

    Material: Galvanized Steel PPGI

    Blade: Cr12

Additional Info

    Packaging: nude

    Productivity: 25m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: ce/iso9001

    HS Code: 84552210

    Port: Xingang,Qingdao,Guangzhou

Product Description

New double layer roof tile Roll Forming Machine




This kind of double layer Roof tile roll forming Machine used in simple house, steel plants and other wall board production.The miximum speed can be 45m/min,greatly improving the production efficiency.The finished sheet are widely used in some temporary construction as wall or roof panel,for example .The sheet or panel is light as well as low cost but high strength, short building period, and re-cycle use.



Material Type:GI/PPGI/AL

Material width:914/1000/1200/1220/1250mm(customized)

Material Thickness:0.3-0.8mm

Sheet length: Any length

Length Tolerance:±2mm/6m

Working Speed:8-25m/min (10 piece per min as 8 feet per piece,standard machine)

Control System:Mitsubishi/Siemens PLC& transducer(customized)

Total Power:About 8.5KW

Total Weight:About 6T(up to the final design)

Un-coiler System

steel double layer machine
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system

Loading-capacity:5T

Uncoiling-width:1000/1200/1250mm

Inner-diameter: 450-550mm

Entry Beach

steel double layer machine
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

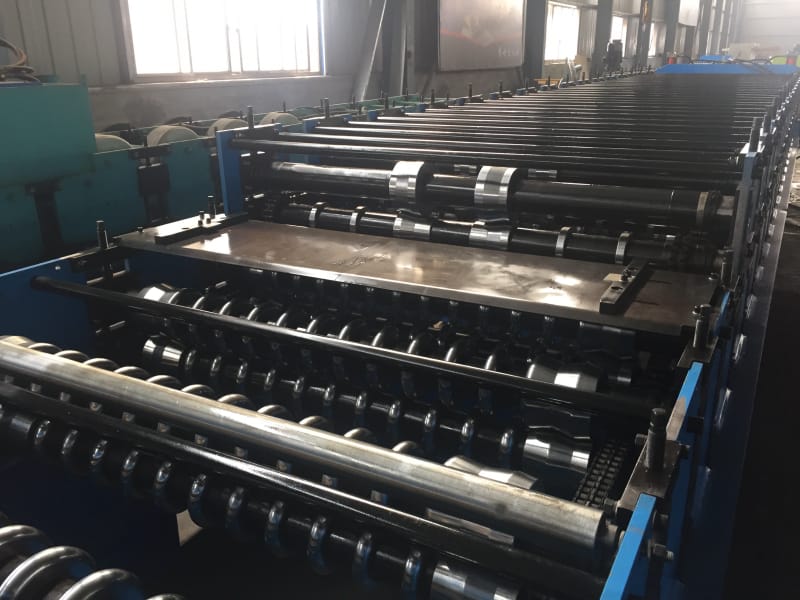

Main Roll forming machine

steel double layer machine
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Length of the main part:8650*1650*1500mm

Voltage:380V/50HZ3Phase

Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80mm

Number of rollers : 18 rollers

Shearing Mechanism

steel double layer machine
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Function: Automatic cutting controlled by PLC.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Products receiving tables

IMG_6168

IMG_6171

IMG_6173

IMG_6175




Looking for ideal Double Layer Roof Tile Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Double Roof Tile Machine are quality guaranteed. We are China Origin Factory of Double Roof Tile Forming Machine. If you have any question, please feel free to contact us.
