Zhongtuo Roll Forming Machinery Co., ltd

color steel rainpipe roll forming machine
color steel rainpipe roll forming machine
color steel rainpipe roll forming machine
color steel rainpipe roll forming machine
color steel rainpipe roll forming machine

color steel rainpipe roll forming machine

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005

    Material: Color Steel Plate

    Type: Ridge Tiles

    Shape: Plain

    Size: 300*400mm

    Color: Blue, As You Want

    Customized: Customized

    Weight: 7t

    Place Of Origin: Botou

    Roller Diameter: 50mm

    Roller: 20

    Main Frame: 300mm

    Machine Size: 7*1.5*1.2m

    Certificate: CE&ISO

    Total Power: 7kw

    Raw Material Size: Color Steel Sheet

Additional Info

    Packaging: naked

    Productivity: 20sets/month

    Brand: Zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 20sets/month

    Certificate: CE&ISO

Product Description

Steel gutter downpipe Roll Forming Machine


Specification

Description

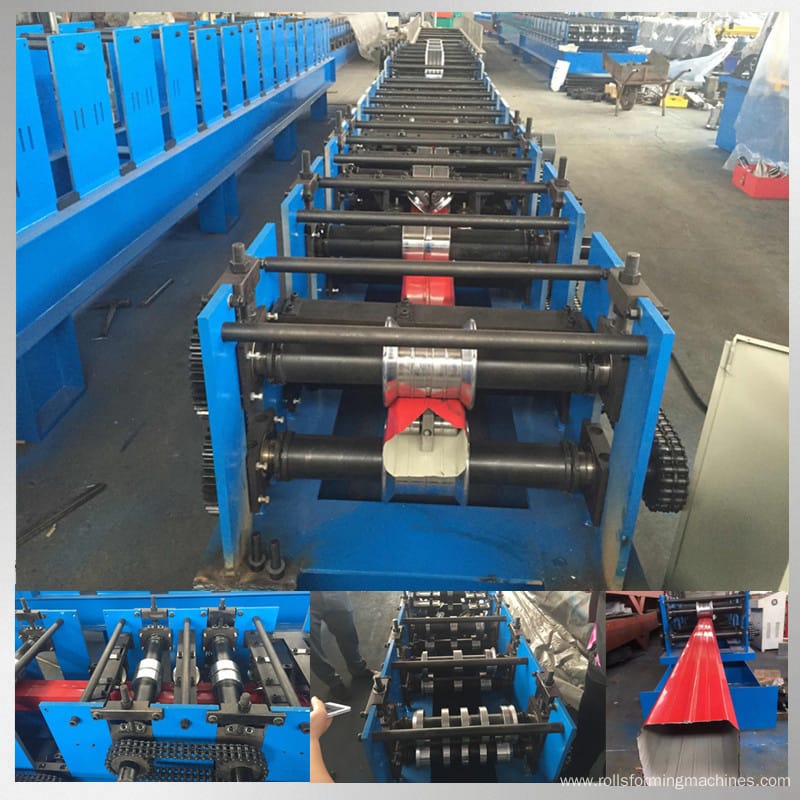

Our downspout roll forming machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects.

Machine components

Passive uncoiler

Guiding unit

Roll forming machine

Cutting unit

Hydraulic station

PLC control cabinet

Supporter table

Security cover

Elbow machine

Technical process

Passive uncoil- Feeding-Roll forming-Cut to length-Output table-Elbow with pipe

Technical parameters

Items

Specifications

Material Spec

Galvanized steel sheet, color sheet

Thickness of Coil Sheet

0.3 –0.8mm

Main Motor Power

5.5kw

Forming Speed

10-15m/min

Hydraulic Station Power

3kw

Quantity of Stands

18

Hydraulic Pressure

10~12Mpa

Controlling System

Panasonic PLC

Index Error of Length

10m±2mm

Total Weight

7T

Voltage

380V 3 phase 50Hz

rainpipe roll forming machine

rainpipe roll forming machine

rainpipe roll forming machine


rainpipe roll forming machine



Looking for ideal Rainpipe Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rainpipe Forming Machine are quality guaranteed. We are China Origin Factory of Steel Rainpipe Machine. If you have any question, please feel free to contact us.

Product Categories : Gutter & Downspount
