Roof panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.This model is hot in Middle east.
Electric system 1. PLC:Japan Mitsubishi 2. Frequency inverter:American Emeron. 3. Touch screen:MCGS 10 inch big size. 4. Incoder:Japan Omron 5. Aviation plug,remote controller,emergency stop button. Hydraulic cutting device 1. hydraulic station:1 set 2. with hydraulic station motor 3kw 3. hydraulic cutter 4. blade and mold material:GCR12 steel with quenched treated 60~62℃ 5. cutting system:advanced hydraulic drive automatic cutting after forming no distorting.
| NO. | ITEM | PARAMETER | NOTE |
| 1.
| Suitable
material
| Type | Pre-painted sheet,
Galvanized sheet | |
| Width(mm) | 1200mm | |
| Thickness(mm) | 0.3-0.8mm | |
| Yield stress(mm) | G220-G300 | |
| 2. | Product
specifications | Detail as the attached file |
| Length | Any length | |
| 3. | Power
requirement
| Type | 380v/3ph/50hz | Motor brand shanghai Lichao |
| Main Motor power | 5.5kw |
| Cutter power | 4kw |
| 4. | Forming speed(m/min) | 10-15m/min | Not include the time of cutting |
| 5. | Manual Decoiler
(Optional) | Type | Manual | |
| Max capacity | 5t | |
| Suitable coil OD(MM) | 1000 | |
| Suitable coil
ID(MM) | 508 | |
| 6. | Forming stand | 18/18 | Depend on actual design |
| 7. | Thickness of structure | 16mm | |
| 8. | Forming shaft diameter(mm) | 70 solid | |
| 9. | Type of cutting | Roll formed and
length-set cutting | |
| 10. | Control system | Panasonic PLC and inverter | |
| 11. | Install dimension(depend on the final design) | 8.2m×1.5m×1m | Without panel length |
| 12. | Total weight (Approx) | 8.5T | Depend on final design |
Description

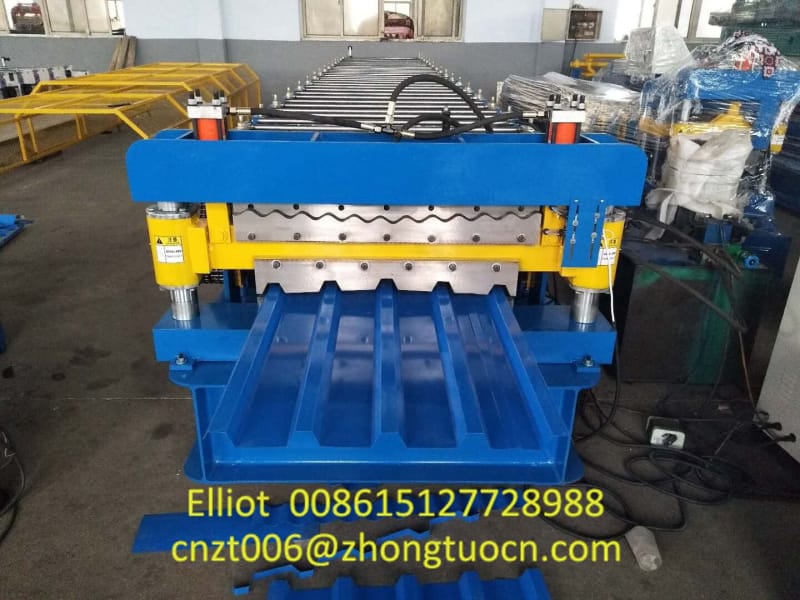

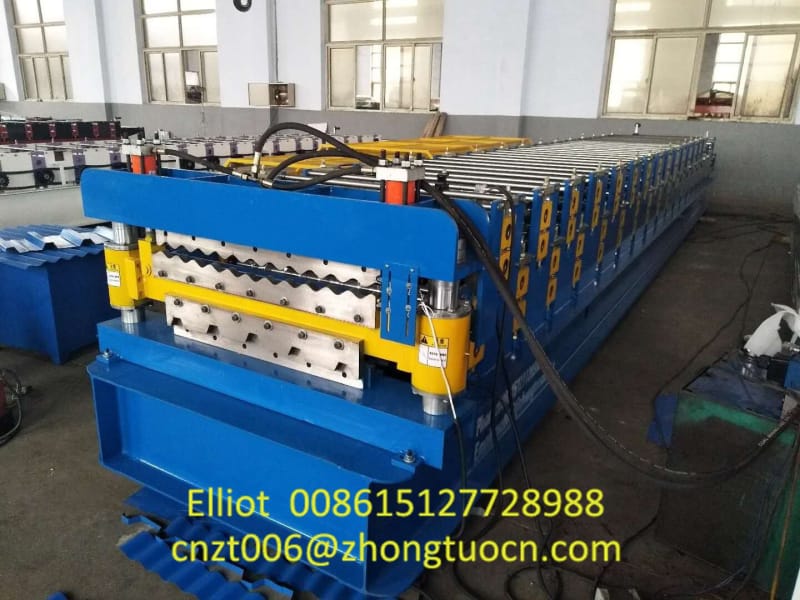

This model of machine make the Two models of roofing sheets in one machine.Some customers wants more models of roofing tiles,but they have no space in the workshop
Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
