Zhongtuo Roll Forming Machinery Co., ltd

Small hat post roll forming machine
Small hat post roll forming machine
Small hat post roll forming machine
Small hat post roll forming machine
Small hat post roll forming machine

Small hat post roll forming machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: CNZT-002

    Name: Small Hat Post Roll Forming Machine

    Voltage: 380V/50HZ3Phase (as Customer`s Request)

    Drive Mode: Chain

    Material Of Rollers: GCr12MoV

    Material Of Shafts: 45# Steel With Tempering

    Diameter Of Shafts: Φ40-60mm

    Number Of Rollers: 10-15 Rollers

    Main Power: 3-11kw

    Hydraulic Motor Power: 3-6kw

    Material Of Blades: Gcr12MoV Quenched

Additional Info

    Packaging: As customer's need

    Productivity: 15-20m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE,ISO,SGS,IAF,CNAS.

Product Description

Small hat post Roll Forming Machine

Small hat post roll forming machine could be used to make greenhouse pillar post in batch fully automatic. It is same as other cold roll forming machine, which is composed by decoiler, leveling system, roll forming machine, PLC control system and hydraulic station. The following picture is about the drawing profile of small hat post.

small hat drawing profile

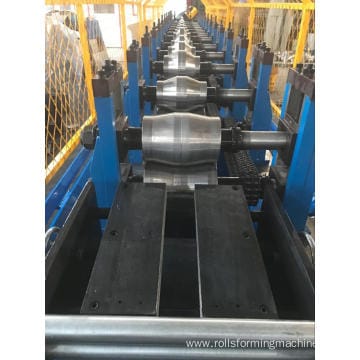

Here is the small hat post machine:

Small Hat Post Machine

Here is furring hat roll forming machine parameters for your reference:

Forming Section

1: Coil width: according to the profiles

2: working speed: 15 m/min

3: roll station: 12stations

4: material of roller: GCr12MoV steel, polished and coated with chrome,two different sizes, two sets of moulds.

5: material of main shaft: 45﹟forge steel

6: main power: 11KW.

7: forming thickness: 1.0-1.5mm

8: Transmission: gear

9: feeding and guide: surface polished and coated with chrome

10: Machine adopt cast iron for the stations

11: size of machine: about 6800×1400×1200 (mm) L x W x H need 1x40GP container

12: weight: about 6000Kgs

13: color of machine: blue and yellow

For the greenhouse frame there are many types, the above machine is made one of them like small hat. The following picture is about where to use.

where to use

Looking for ideal Furring Hat Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Small Hat Post Machine are quality guaranteed. We are China Origin Factory of Greenhouse Pillar Machine. If you have any question, please feel free to contact us.
