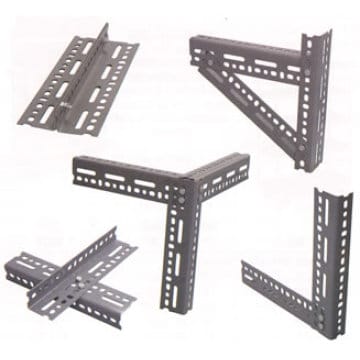

Steel Slotted Angle Making Machine
Steel Slotted Angle Making Machine
Steel Slotted Angle Making Machine
Steel Slotted Angle Making Machine
Steel Slotted Angle Making Machine

Steel Slotted Angle Making Machine

Payment Type: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Contact Now

Basic Info

    Model No.: ZT-005-22

    Type: Channel Steel

    Trademark: Carbon Structural Steel

    Connection Form: Bolt Connection

    Member: Steeltruss

    Carbon Structural Steel: Q195

    Residential Wall Structure: Wall Stud

    Name: Steel Slotted Angle Making Machine

    Roller Station: 9 Rollers

    Roller Material: GCR15 Aluminium Processing After Quenchin HRC58-62

    Shaft Diaeter: Φ80mm

    Power: 7.5kw

    Contaner: One 20GP

    Speed: 2-8m/min(not Include Cutting Time)

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 5-8m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO9001

Product Description

Steel Slotted Angle Making Machine

Steel Slotted Angle Making Machine are made using best grade steel and other qualitative materials that are procured form some of the reputed and genuine vendors of the industry. We make sure that our range is free from any defect, therefore we have sternly checked each product on certain quality parameters.

Process of Slotted Angle Machine :

decoiler--feeder--roll former--cutting--run out table

Slotted Angle Roll Forming Machine

Detalied informations of Steel Slotted Angle Making Machine:

1. Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity: 5T

Uncoiling width: 500mm

Inner diameter: 450-550mm


2.Servo feeding and Punching part

Servo feeding power: 3kw

This part to punch the hole, you can change the mould to punch different holes.

Power:5.5kw

Punching:42T

Mould material : Gcr12MoV quenched

Slotted Angle Roll Forming Machine

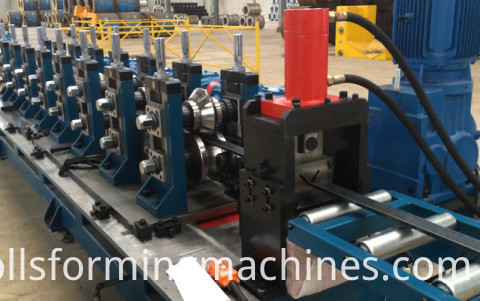

3. Slotted Slotted Angle Machine

Size: length*Width*Height - 13*1.3*1.7m

Weight t: 5 tons

Voltage:380V/50HZ3Phase(as customer`s request)

Roller fixer : Vertical arch

Frame : middle plate welded

Memorial arch frame type

Frame thickness:25mm

Drive mode:Gear driving

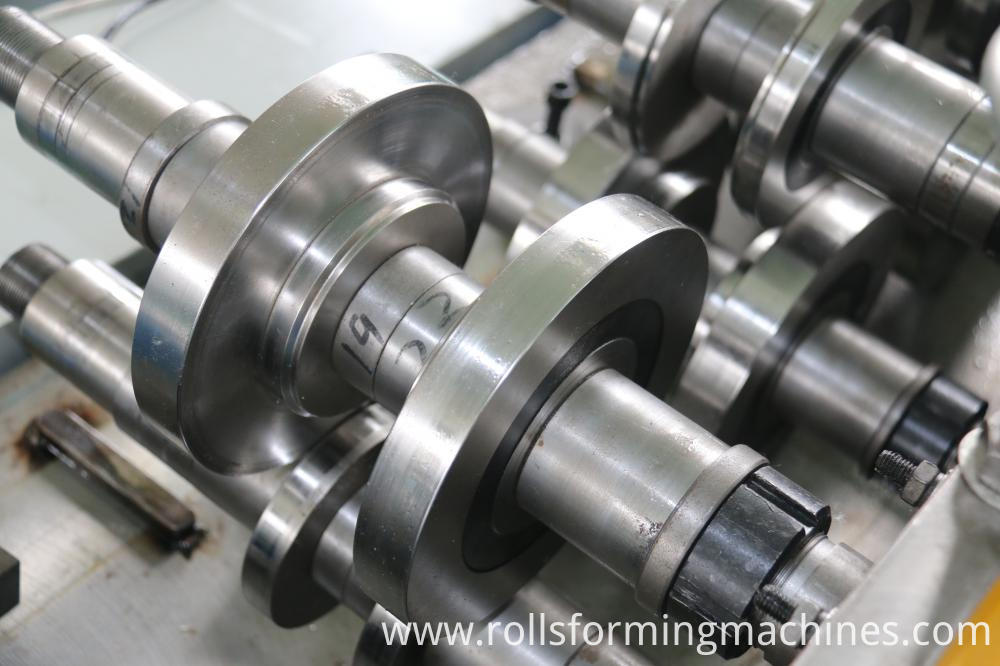

Material of rollers: GCR15 Aluminium processing after quenchin HRC58-62℃,Chrome plated

Material of shafts: 45# steel with tempering

Diameter of shafts: φ80mm

Number of rollers : 9 rollers

Main power: 7.5kw

Cycloidal planetary gear speed reducer)

Speed: 2-8m/min(not include cutting time)


Steel And Metal Slotted Angle Roll Forming Machine

Steel And Metal Slotted Angle Roll Forming Machine

4.Shearing system

Material of blades: Cr12Mov, herd steel HRC 58-62℃

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Steel And Metal Slotted Angle Roll Forming Machine

5.Hydraulic station and PLC station

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

Feature:

1. Adopted PLC, transducer, touch panel from Panasonic PLC to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.


Steel Slotted Angle Machine

Some final pictures foro you reference:

Steel And Metal Slotted Angle Roll Forming Machine

Slotted Angle Roll Forming Machine


Metal Slotted Angle Machine


Looking for ideal Slotted Angle Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Slotted Angle Making Machine are quality guaranteed. We are China Origin Factory of Steel Slotted Angle Machine. If you have any question, please feel free to contact us.
