Customize diamond steel Embossing Machine production line suppliers

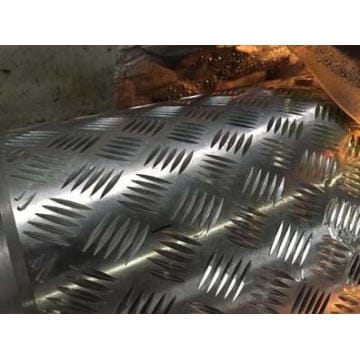

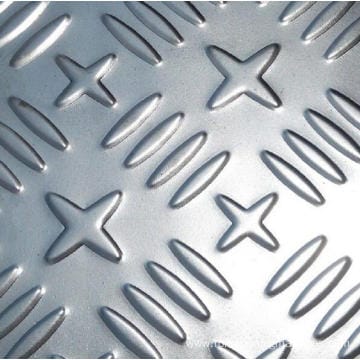

Customize diamond steel embossing machine production line suppliers are mainly for producing embossed aluminum and steel roll. metal embossing machine is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension. It can be assorted with the embossing production line The main parts of this rolling metal embossing machine: Uncoiler, embossed host, recoiler, electrical control station.
Here is machine picture for your reference:
Standard parameters of this line
| Model | ZT-S1000 | ZT-S1400 | ZT-S1600 | ZT-S1900 |
| Overall size(mm) | 2900*1200*1500 | 3300*1200*1500 | 3500*1200*1500 | 3800*1200*1500 |
| Roller size | φ350*1000mm | φ380*1400mm | φ400*1600mm | φ450*1900mm |
| Material of roller | 42CrMo | 42CrMo | 42CrMo | 42CrMo |
| Roller hardness | HRC55-58 | HRC55-58 | HRC55-58 | HRC55-58 |
| Way of embossing | Both up and down rollers embossing at same | Both up and down rollers embossing at same | Both up and down rollers embossing at same | Both up and down rollers embossing at same |
| Embossing regulation | By screw | By screw | By screw | By screw |
| Motor power(KW) | 7.5 | 11 | 15 | 15 |
| Line speed | 0-18m/min | 0-30m/min | 0-40m/min | 0-45m/min |
Detailed parameters of this metal embossing machine line:
1. Roller specifications: DIA450~500mm, width: 1000~1800mm.
2. Take the roll surface hard chromium plating
3. Suitable for pressing plate: 2-6 mm
4. Frame steel plate welded structure, polished, tempering, machining, solid wall plate Q235 90 mm thick
5. Pattern processed by laser engraving.
6. The pattern making: according to the buyer to provide the sample pattern
7. Pressure mode: hydraulic 50~100T.
8. Working speed: 1~20m/min, speed changed by frequency converter .
9. Voltage 380V/50Hz/3PH
10. Safety shield shell
11. Generous beauty of appearance
Looking for ideal Metal Embossing Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Embossing Machine are quality guaranteed. We are China Origin Factory of Composite Faux Panel. If you have any question, please feel free to contact us.
Product Categories : Special Equipment For Industry
