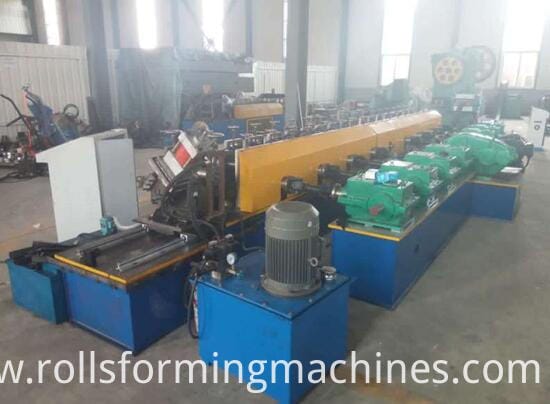

Automatic C Solar Strut Channel Roll Forming Machine

C solar strut Channel roll forming machine is designed to make galvanized steel channels in batch fully automatically.

Unistrut 41*21 Slotted and 21*21 of galvanized steel fixing Ω STRUT ensure speed and ease of installation, saving time and money in fixing and assembly operations in construction of electrical, industrial and civil. These elements of support are available with slotted steel Sendzimir zinc and hot dip galvanizing.

For the machine design, we use the gearbox as transmission to make sure the machine working steady and then not hurt the surface of the raw material. Normally we will use stainless or galvanized steel.

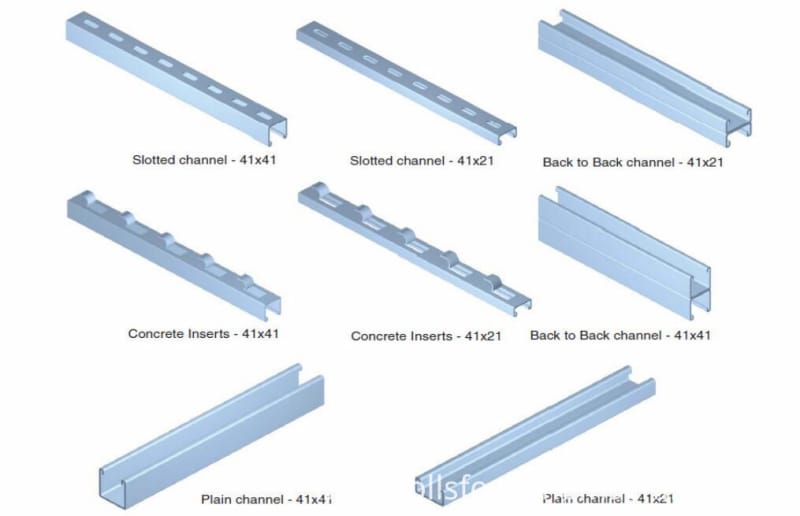

Here are some drawing profiles for your refernece:

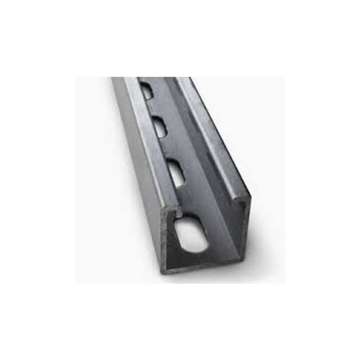

C channel


In the market, there is plain C Slotted channel, and then just save the holes punching part.

In the following part, check paramters of the machine:

MACHINE COMPONENTS:

1

Manualdecoiler

1 set

2

Leveling Machine

1 set

3

Roll Forming

1 set

4

Hydraulic Cutting

1 set

5

PLC Control System

1 set

6

Hydraulic Station

1 set

7

Run-out Table-(Un-powered)

1 set

1. Decoiler

3 Ton passive de-coiler with brake device

Outside diameter of coil: 550mm

Inside diameter of the coil: 450mm

2. Feeding and leveling rollers:

Rollers: 4 steps, leveling Rollers: 9pcs

Diameter: 80mm

Leveling thickness: 3.5mm

Feeding speed: 20m/min
Drive type: gear

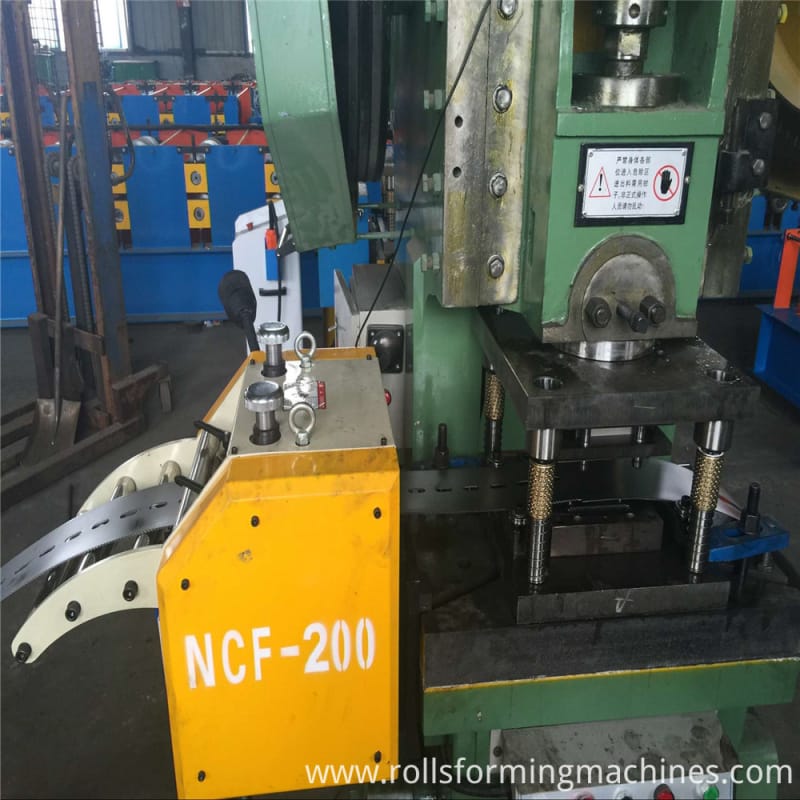

Punching device
1) Power: 60 tons mechanical press power with Pneumatic brake
2) 8 hole punching mold
3) Speeds: 60 times/min

solar pillar machine6

3. Main forming machine :

1) Forming steps: 18 steps

2) Outer diameter: 70mm

3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm

4) Roller information:
A. Raw material: GCr12MoV

B. Quenched degree: 56-58°C

5) Shaft material: 45# steel with heat treat and hard chrome plated on the surface

6) Main motor power: 18.5kw, Reducer ratio: 1:14,

Reducer Type: Hardened reducer

7) With cooling device

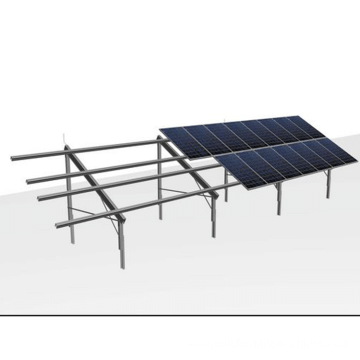

Solar Pillar

4. Siemens control system with English

1). PLC brand: Siemens

2). Transducer brand: Siemens

3). Automatic length and quantity measurement

4). Stop control switch, to ensure the safety of production

5). Control station: Used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.

6). Error for length needs to be easy to adjust.

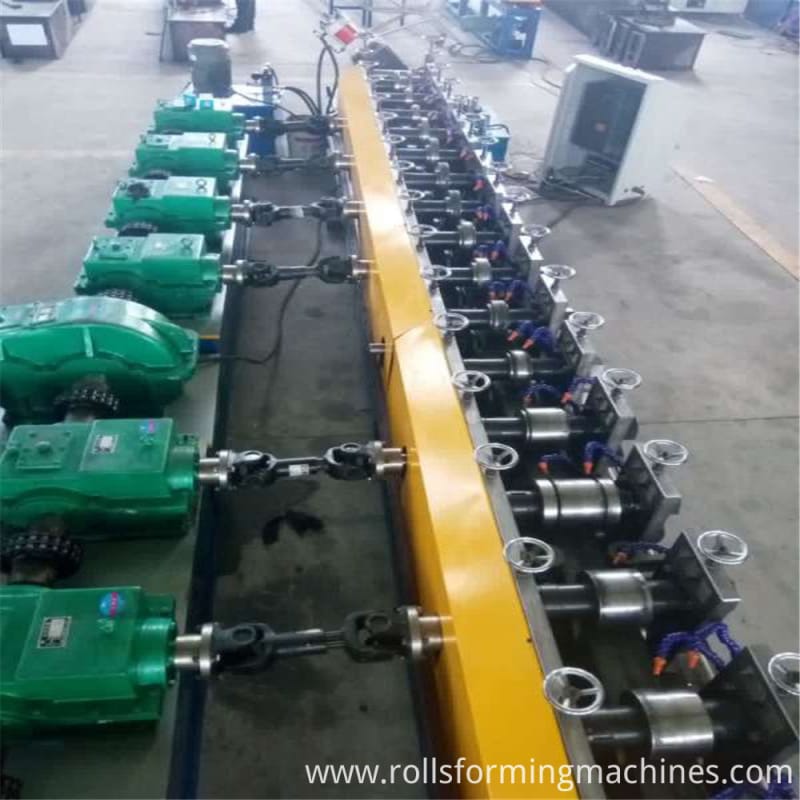

5. Gearbox transmission: Gearbox transport

A. Gear material: 42CrMo

B. Processing technical: hardening gear grinding processing

C. Gear lubrication system: automatic oil drip by computer control, oil drip time and amount can be controlled according the needs.

D.Gear cooling system: Automatic cooling circulation tank, which can guarantee not to exceed the gear temperature limit.

solar pillar machine9

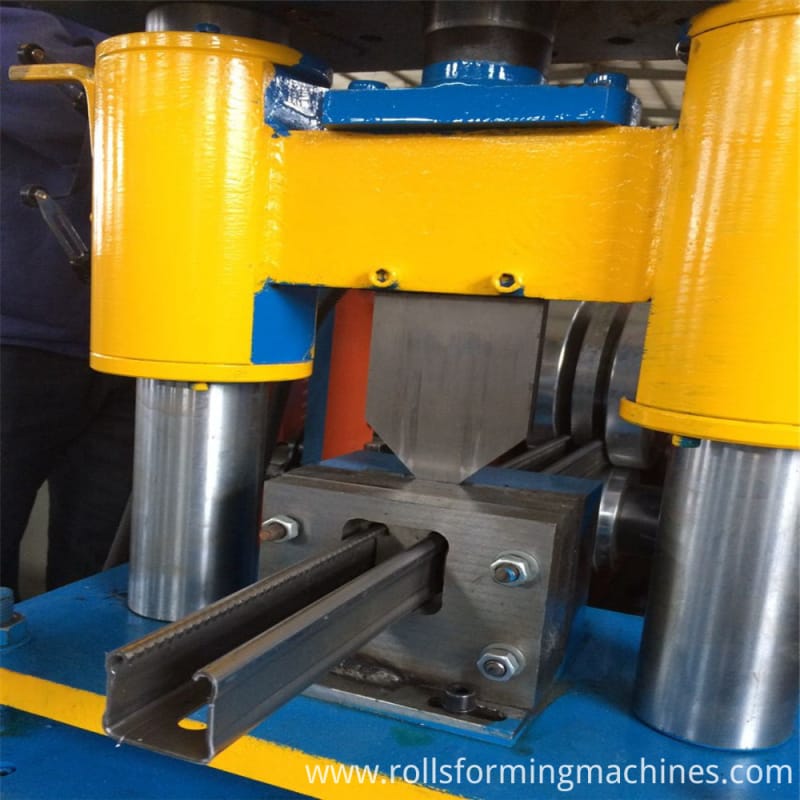

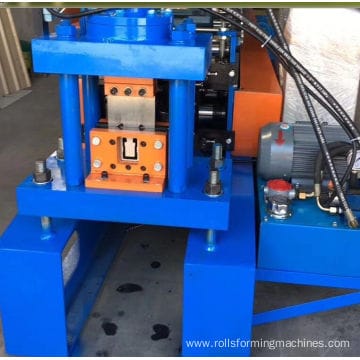

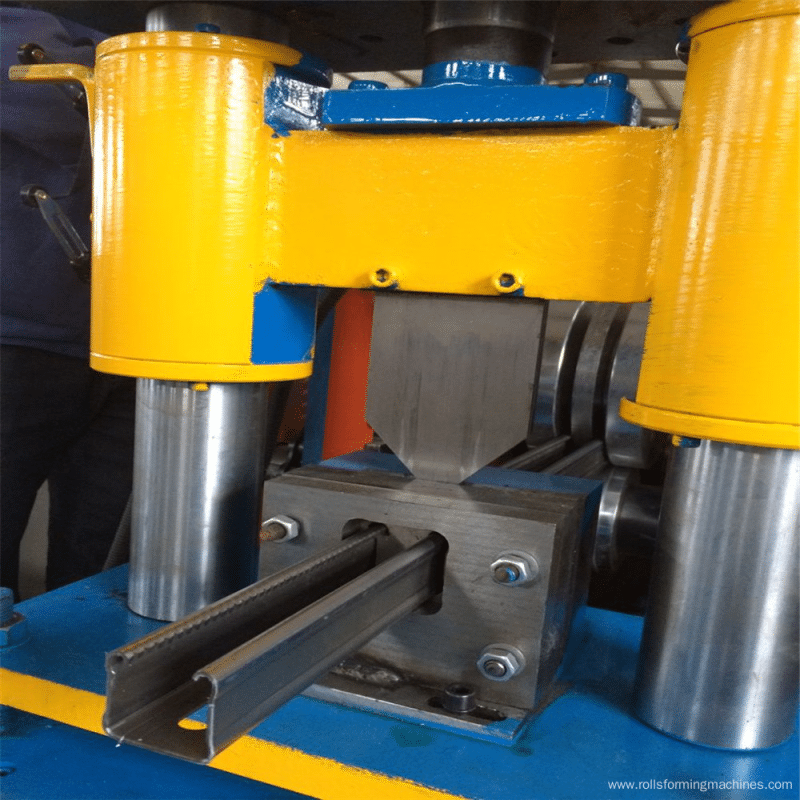

7. Non-stop hydraulic cutting device

1). Servo motor power: 5.5kw
2). Oil pump station 1 set
3). Cutter material: Cr12 mold steel with quenched treatment

4). Hydraulic cutting after forming, no distorting or wasting. High level safety factor.

strut channel roll forming machine

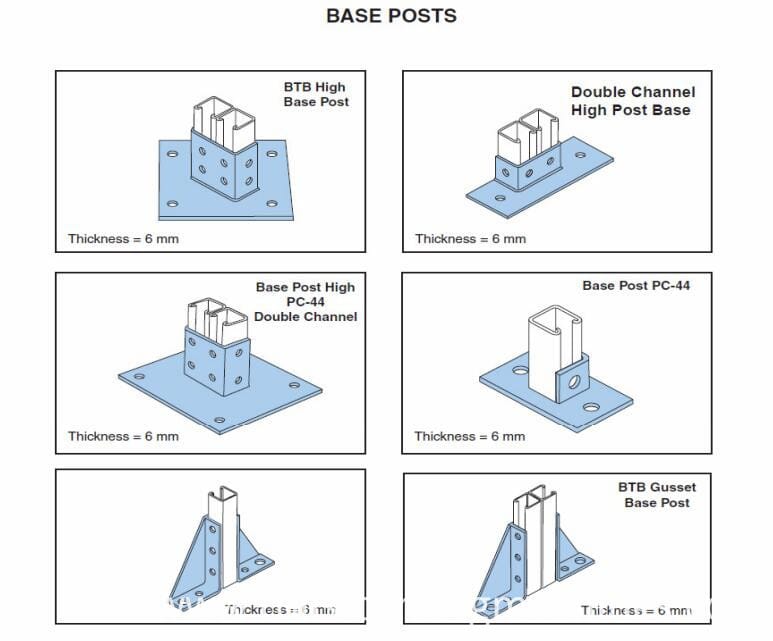

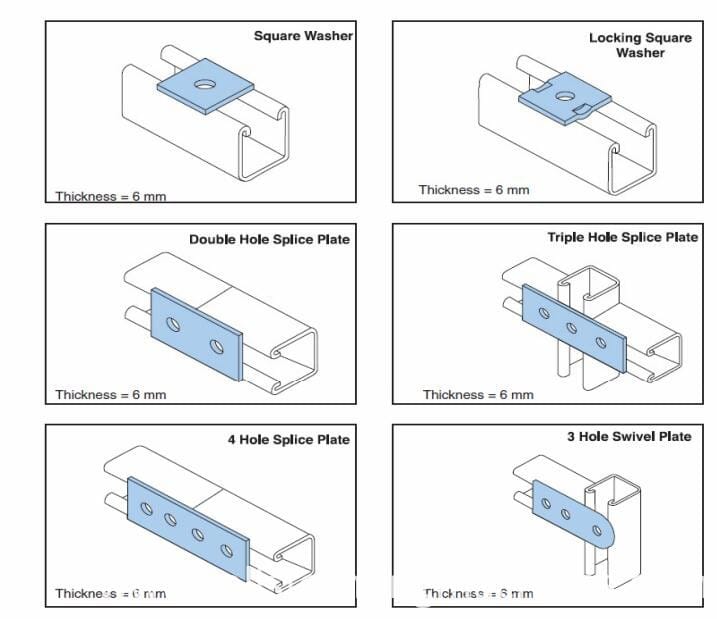

How to do the installation of size 41*41, 41*21:

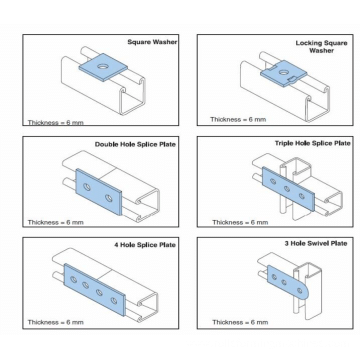

installation of strut channel1

installation of strut channel2


Looking for ideal C Solar Strut Channel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Solar Strut Channel Roll Forming Machine are quality guaranteed. We are China Origin Factory of Strut Channel Forming Machine. If you have any question, please feel free to contact us.
