Zhongtuo Roll Forming Machinery Co., ltd

Customized metal plate engraving machine
Customized metal plate engraving machine
Customized metal plate engraving machine
Customized metal plate engraving machine
Customized metal plate engraving machine

Customized metal plate engraving machine

Unit Price: USD 20000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 35 Days

Contact Now

Basic Info

    Model No.: CNZT-002

    Product Name: Metal Sheet Embossing Machine

    Voltage: 380V 50Hz 3Phase/Customized

    Weight: 3.5t

    Control Method: Emergency Stop Switch

    Material Of Embossing Roller: 60CrMnMo

    Hardness Of Embossing Roller Surface: HRC 58~62

    Depth Of Hardness Surface: 5-10mm

    Speed: 25m/min

    Pressure Mode: Hydraulic

    Embossing Roller: ø440*1150

Additional Info

    Packaging: Package can be customized

    Productivity: 30sets/month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets per month

    Certificate: CE\ISO9001

    Port: TIANJIN

Product Description

Customized metal plate engraving machine

Metal plate engraving machine can help you make beautiful engraving plate for graphic designer. Now those wooden texture patterns are used in the metal engraving industry. In this collection we are rounded up 30 beautiful wood texture set for graphic design backgrounds for to choose, here are some samples for your reference.

drawing profile


Zhongtuo plate engraving machine can help you engrave those patterns on the metal plate which could be used for wall, panel or others. The metal Embossing Machine works by main two rollers. All the wooden testure pattern is cruved on the main rollers and it is powered by motor and hydraulic jack. By this way, the finihed products have those patterns beautiful.

embossing sheet

Plate engraving machine has two working methods: one is fully automatic from decoiler to recoiler: another it is from metal plate to engraving metal plate, all are done by manual work.

Here are some main parameters of metal plate engraving machine for your reference:

2) Engraving machine (1 sets)

Engraving roller: ø440*1150;

Material of engraving roller:60CrMnMo

Pattern laser engraving as customer`s sample;

Hardness of embossing roller surface: HRC 58~62

Depth of hardness surface:5-10mm

Bearing: Torrington spherical roller bearings ,TWB 3003136 ;

Engraving thickness adjusted through the dial.

Bearing box: 400*400*160mm .

Driving: 11kw AC motor,reducer:BWED53-17*11-11KW 4P

Speed : 1-10m/min

Pressure mode: hydraulic system, ø150 oil cylinder 2pcs

Closed shields, safety devices. Emergency stop switch

embossing machine

How to get metal engraving machine quotation?

When you need to know price of the metal engraving machine, please provide the following information:

1. Material to be engraving:

2. Material coil width and material thickness.

3. Fullly autoamtic production line or manual version.

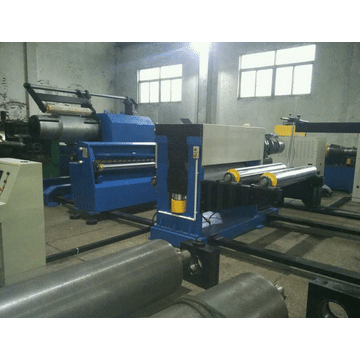

Here is the machine working pictures for your reference:

metal embossing machine




Looking for ideal Metal Engraving Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Plate Engraving Machine are quality guaranteed. We are China Origin Factory of Plate Engraving Machine. If you have any question, please feel free to contact us.
