Zhongtuo Roll Forming Machinery Co., ltd

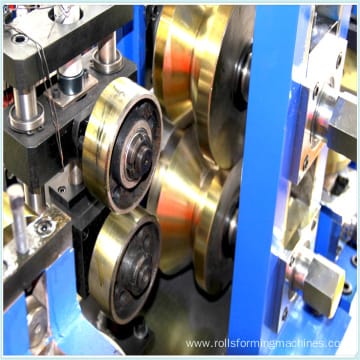

High frequency welded pipe roll forming machinery/pipe welding equipment
High frequency welded pipe roll forming machinery/pipe welding equipment
High frequency welded pipe roll forming machinery/pipe welding equipment
High frequency welded pipe roll forming machinery/pipe welding equipment
High frequency welded pipe roll forming machinery/pipe welding equipment

High frequency welded pipe roll forming machinery/pipe welding equipment

Unit Price: USD 100000 - 150000 / Set/Sets
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Contact Now

Additional Info

    Packaging: nude packing

    Productivity: 90m/min

    Brand: Zhongtuo

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE\ISO9001

Product Description

High frequency welded pipe roll forming machinery/pipe welding equipment
High Frequency Welding Tube Mill is designed to make various shape pipes like square pipe, round pipe, oval pipe and other special shape pipes. The tube mill takes advantage of high frequency welding system and cold roll forming principle to make pipe from the thin sheet. The tube raw material could be various types like carbon steel, metal like Q235 and others.

tube pipe machine

Steel Roll Forming Machine sizes:

Model

HG16

HG20

HG32

HG50

HG76

HG114

HG127

HGH165

Diameter(mm)

8-16

10-26

14-38

20-63.5

32-70

30-100

60-120

70-165

Thickness(mm)

0.3-1.0

0.4-1.5

0.6-1.8

0.8-3.0

1.0-3.0

1.0-4.0

2.0-5.0

3-6

Speed(m/min)

30-90

80-100

80-100

70-80

70-80

60-70

40-50

40-50

High-frequency equipment(Kw)

60

60

100

200

250

250

300

350

Please choose the proper machine according to your material thickness.

High frequency working principle:
For welding part, it makes full use of two sciences-high-frequency current Skin-Effect and Adjacency Effect to make the current concentrate on the edge, then the temperature will reach to the point of welding. Then we can make the sheet to pipe by rolling and make the edge melting to one.
HF Welder technology has the following features:
1.It supports many kinds of material like carbon steel, GI and others.
2.One machine could make a large range of pipe sizes by changing mold.
3.One machine could be used to make square pipe, round pipe by changing mold.
4.High working efficiency but low energy consuming: the power is 200KW TNGP.
5.The pipe made by this kind of machine could be used in many areas like water tube, wire pipe and others.

high frequency welding system

high frequency welding machine

Main elements of the tube mill

NO.

Item Name

Quantity

1

Option A: Decoiler double head

Option B: Hydraulic Single-arbor uncoiler with peeler

1 set

2

Five-roll Flattener coil leveling system

1 set

3

Option A: Hydraulic Shearing & butt welding

Option B: Manual cutting and butt welding

1 set

4

Option A:Horizontal spiral accumulator

Option B: Cage loop accumulator

1 set

5

Forming & sizing section

1 set

6

Option A: American brand Welding section

Option B: China brand welding system

1 set

7

Option A: CNC flying friction saw

Option B: No burr tracking cutting saw

1 set

8

Option A: Normal runout table

Option B: Pick up and package system

1 set

9

Electric Control System brand two options:

China brand or world famous brand.

1 set

10

Mould

1 set

More pictures of steel pipe machine for your reference:

accumulator

single head decoiler

sizing system




runout table

Looking for ideal High Frequency Welded Pipe Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Welded Pipe Roll Forming Machinery are quality guaranteed. We are China Origin Factory of Pipe Welding Equipment. If you have any question, please feel free to contact us.
