Zhongtuo Roll Forming Machinery Co., ltd

Octagonal Pipe Roll Forming Machine for roller shutters' tubular motor
Octagonal Pipe Roll Forming Machine for roller shutters' tubular motor
Octagonal Pipe Roll Forming Machine for roller shutters' tubular motor
Octagonal Pipe Roll Forming Machine for roller shutters' tubular motor
Octagonal Pipe Roll Forming Machine for roller shutters' tubular motor

Octagonal Pipe Roll Forming Machine for roller shutters' tubular motor

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: CNZT002

    Control System: PLC With Touch Screen

    Material Of Rollers: GCr12MoV

    Diameter Of Shafts: Φ60mm

    Material Of Shafts: 45# Steel With Tempering

    Number Of Rollers: 16 Rollers

    Forming Speed: 15 M/minute

    Frame: Middle Plate Type

    Voltage: As Customer`s Request

    Lanugage System: Chinese, English, Russian

    Drive Mode: Gear

Additional Info

    Packaging: 20ft container

    Productivity: 25-25m/min

    Brand: Zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: China(mainland)

    Supply Ability: 30 sets per month.

    Certificate: CE/ISO9001

    HS Code: 8455221000

    Port: Tianjin

Product Description

Octagonal Pipe Roll Forming Machine for roller shutters' tubular motor


What is Octagonal pipe are used for?

Octagonal Tube roll forming machine is mainly for making interlocked pipe of Octagonal shape by roll forming principle. The pipe length could be specified in PLC system casually. But for the pipe diameter is only for 40mm. If you want to make other diameter pipe, you have to buy another set of molds.

Octagonal Tube roll forming machine

And the Octagonal Pipe is for roller shutters' tubular motor. Rolling shutter door & windows Octagonal tube;

Here is one picture for your reference:

Rolling shutter door pipe



What is Octagonal Tube?

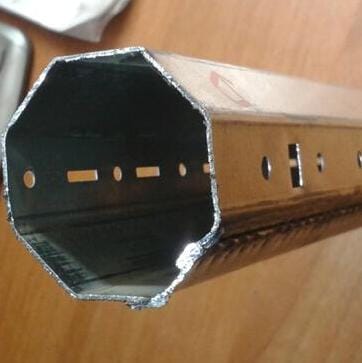

As its name shows, Octagonal Tube is new type building material. Octagonal Tubes are widely used in petrochemical, power plant depressurization, aerospace, ships, machinery, communications, electronics and other fields. In the market, there are two types Octagonal Tubes, seamless and interlocked. The seamless Octagonal Tube is also made by cold draw pipe making machine. Here I will mainly show the interlock Octagonal Tube pipe with the interlocked seam. Here are tube pictures for your reference:

drawing profilepipe making machine sample

Working process:
decoiler --> leveling system--> servo coil feeder-> punching -->roll forming --> sizing --> finsihed product

Elements of the machine

NO.

Item

Mode

1

Decoiler

Type: Cantilevertype Loading ability: 3-5T

ID: φ450-φ550 OD:1200-φ1600

2

Leveling machine

11 leveling rollers, five roller uppers ,six rollers down

3

Servo coil feeder

NCF300

4

Four pillars pressing machine

60 Ton, Punching mould: one set

5

Punching moulds

Gcr12

6

Main roll forming machine

23 roller station

7

Shearing system

Flying cutting saw

8

PLC control system

PLC

Octagonal pipe machine


pipe making machine inter lock


For this machine, if you want to know more information, please contact us at any time.

name card



Looking for ideal Octagonal Pipe Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roller Shutters' Tubular Motor Pipe. If you have any question, please feel free to contact us.
