Basic Info
Model No.: ZT-005-17
Additional Info
Packaging: as customer requirem
Productivity: 600 pieces an hour
Brand: ZHONGTUO
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 5 set/3 month
Certificate: CE, ISO9001
Product Description

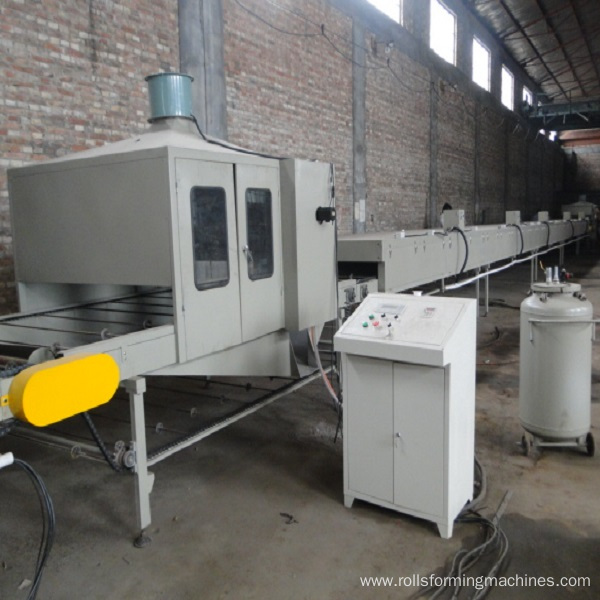

Stone Coated Metal Roofing Tile Machine
Stone Coated Metal Roofing Tile is a modern environmentally friendly roofing material .Covering color vermiculite surface which carried under the high temperature Technology. It is high-performance, stable, energy-efficient and easy operation.
Stone Coated Metal Roofing Tile Machine has three parts: slitting and cutting part to make the suitable plate; roof tile pressure machine;stone coated machine.Those parts combine a complete production line.
A sample profile drawing:
Component and production process of Stone Coated Roofing Production Line
Decoile ---slitting and cutting part--- 200T Press profile machine---Lace Shearing Machine---Stone coated machine(Auto bottom glue spraying section---Auto stone coated section---The first time drying section---Auto face glue spraying section---The second time drying section---Mixer of sand)
The main parameters of Stone Coated Roofing Production Line
Main raw material : 0.4mm aluminum plate,or as customer requirement.
Normal feeder width:914mm (change by profile)
Material of mold: D2/GCr12MoVo
Slitting speed:10m/min
Total power: 250kw
Productivity: 3-6m/min Calculate as 1.2m per piece, eight hours,
produce 1500pcs every day
Machine weight: 35T
Production condition: need plant area 2000 square meter(25m*80m)
the type of rool tile we can do:
Production pictures for you reference:
1. slitting and cutting line
2.200T Press profile machine
3.-Lace shearing machine
4.Auto bottom glue spraying section
5.-Auto stone coated section
6.drying section
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery time : 90 days
Container need: two 40 GP and one 40 HQ
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician.
4. Training time: one week (contains the time of installation and adjustment)
The video of Stone Coated Roof Production Line:
1. roof tile making mchine:
2. stone coated machine
Product Categories : Stone Coated Roof Production Line
