Zhongtuo Roll Forming Machinery Co., ltd

solar panel U bracket roll forming machine
solar panel U bracket roll forming machine
solar panel U bracket roll forming machine
solar panel U bracket roll forming machine
solar panel U bracket roll forming machine

solar panel U bracket roll forming machine

Unit Price: USD 14500 - 27800 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005

    Color: As You Want

Additional Info

    Packaging: as customer requirem

    Productivity: 8-14m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 15 sets/month

    Certificate: CE, ISO9001

Product Description

solar panel U bracket Roll Forming Machine

U Bracket Solar Power Stent Manufacturing System is machine to produce U shape purlin, this U shape purlin always used in Solar Power Stent.

All the production line combine with decoiler, punching part, main roll forming machine, hydraulic cutting part and run out table.

u bracket roll forming machine

u bracket roll forming machine

u bracket roll forming machine


Quickly parameter:

1 Suitable to process:PPGI, PPGL, GI, GL, Black Steel ASTM A-36 from

2 Width of the plate :175/400mm

3 Rollers: 18 rows

4 Dimensions :6.3*1.4*1.5m

5 Power: 18.5kw

6 Thickness of the plate: 1.2-2.5mm

7 Productivity: 8-14m/min

8 Diameter of the roller: Φ80mm

9 Weight :About 3T

10 Voltage: 380V 50Hz 3phases

11 Material of the cutting plate: Cr12

12 Hydraulic :40#

13 Processing precision Within: 1.00mm

14 Control system: PLC control

15:shaft diameter:70mm

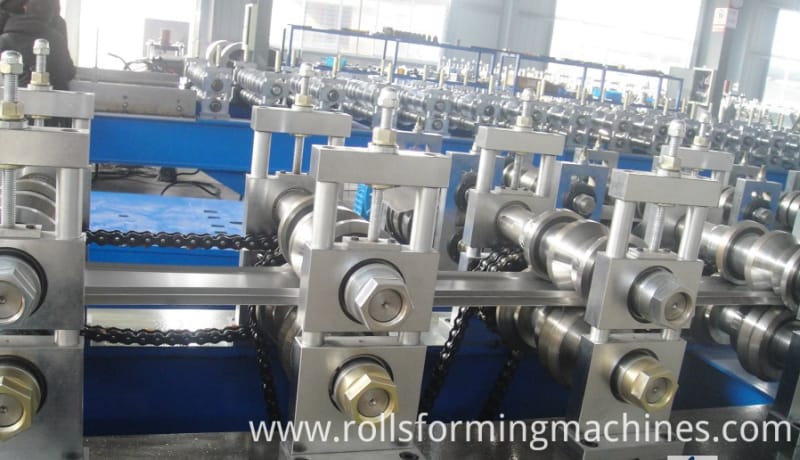

More machine pictures of U Bracket Power Stent machine:

u bracket roll forming machine


u bracket roll forming machine


u bracket roll forming machine


Some pictures for project:

u bracket roll forming machine

u bracket roll forming machine

u bracket roll forming machine


Looking for ideal U Bracket Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the U Bracket Forming Machine are quality guaranteed. We are China Origin Factory of U Bracket Machine. If you have any question, please feel free to contact us.

Product Categories : C/Z/U Purline Roll Forming Machine > U Bracket Solar Power Stent Manufacturing Series
