Steel Roll Forming Machine price/pipe forming machine
High Frequency Welding Tube Mill is designed to make various shape pipes like square pipe, round pipe, oval pipe and other special shape pipes. The tube mill takes advantage of high frequency welding system and cold roll forming principle to make pipe from the thin sheet. The tube raw material could be various types like carbon steel, metal like Q235 and others.
Steel Roll Forming Machine sizes:
| Model | HG16 | HG20 | HG32 | HG50 | HG76 | HG114 | HG127 | HGH165 |
| Diameter(mm) | 8-16 | 10-26 | 14-38 | 20-63.5 | 32-70 | 30-100 | 60-120 | 70-165 |
| Thickness(mm) | 0.3-1.0 | 0.4-1.5 | 0.6-1.8 | 0.8-3.0 | 1.0-3.0 | 1.0-4.0 | 2.0-5.0 | 3-6 |
| Speed(m/min) | 30-90 | 80-100 | 80-100 | 70-80 | 70-80 | 60-70 | 40-50 | 40-50 |
| High-frequency equipment(Kw) | 60 | 60 | 100 | 200 | 250 | 250 | 300 | 350 |
Please choose the proper machine according to your material thickness.
High frequency working principle:
For welding part, it makes full use of two sciences-high-frequency current Skin-Effect and Adjacency Effect to make the current concentrate on the edge, then the temperature will reach to the point of welding. Then we can make the sheet to pipe by rolling and make the edge melting to one.
HF Welder technology has the following features:
1．It supports many kinds of material like carbon steel, GI and others.
2．One machine could make a large range of pipe sizes by changing mold.
3．One machine could be used to make square pipe, round pipe by changing mold.
4．High working efficiency but low energy consuming: the power is 200KW TNGP.
5．The pipe made by this kind of machine could be used in many areas like water tube, wire pipe and others.
| Main elements of the tube mill |
| NO. | Item Name | Quantity |
| 1 | Option A: Decoiler double head Option B: Hydraulic Single-arbor uncoiler with peeler | 1 set |
| 2 | Five-roll Flattener coil leveling system | 1 set |
| 3 | Option A: Hydraulic Shearing & butt welding Option B: Manual cutting and butt welding | 1 set |
| 4 | Option A:Horizontal spiral accumulator Option B: Cage loop accumulator | 1 set |
| 5 | Forming & sizing section | 1 set |
| 6 | Option A: American brand Welding section Option B: China brand welding system | 1 set |
| 7 | Option A: CNC flying friction saw Option B: No burr tracking cutting saw | 1 set |
| 8 | Option A: Normal runout table Option B: Pick up and package system | 1 set |
| 9 | Electric Control System brand two options: China brand or world famous brand. | 1 set |
| 10 | Mould | 1 set |

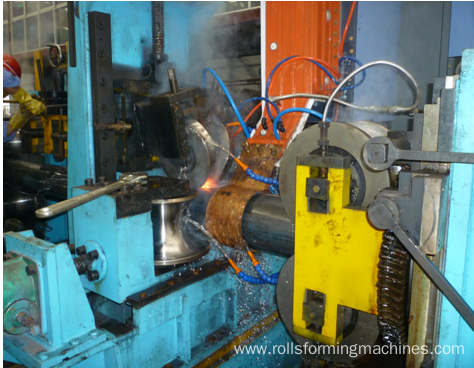

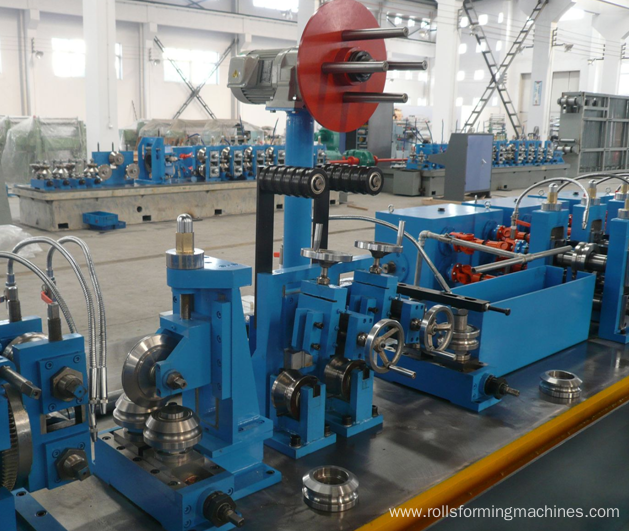

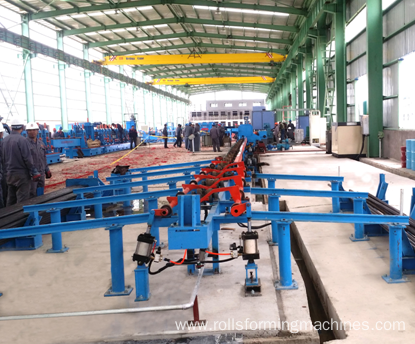

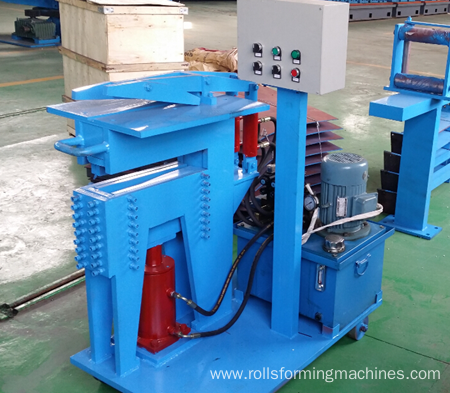

More pictures of steel pipe machine for your reference:
Looking for ideal Steel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machine are quality guaranteed. We are China Origin Factory of Pipe Forming Machine. If you have any question, please feel free to contact us.
