Zhongtuo Roll Forming Machinery Co., ltd

High Quality Metal Embossing Roll Forming Machine
High Quality Metal Embossing Roll Forming Machine
High Quality Metal Embossing Roll Forming Machine
High Quality Metal Embossing Roll Forming Machine
High Quality Metal Embossing Roll Forming Machine

High Quality Metal Embossing Roll Forming Machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: ZT-002

    Brand Name: Zhongtuo

    Model Number: ZTAC20180120

    Function: Embossin Machine

    Dimension: 1.0*0.8*1.1

    Weight: 10t

    Drive System: Hydraulic/Manual/eletrical

    Thickness Of Material: Customized

Additional Info

    Productivity: 25 m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 25 sets/month

    Certificate: ISO, CE

    Port: Tianjin

Product Description

High Quality Metal Embossing Roll Forming Machine can be used to make various types of sheet. So if you have the requirements about this machine, please feel free to let us know.In addition, high quality metal embossing roll forming machine is welcomed by more and more customers. Because it is fully automatic production line, which works from the decoiler to leveling system and then go to Embossing Machine, last do the recoiling work. Take the high quality metal embossing roll forming machine for example:

pattern of embossing machine

High quality metal embossing roll forming machine parameters for your reference:

1.machine size:3300×1200×1500 mm;( the embossing roller length is adjustable according to your input coil width )

2.Embossing roller size:Φ320×1400 mm;

3.Embossing type, any type like your sample

4.Roller material:42CrMo alloy steel

5.Hardness of rollers:Surface to be case hardened 55 to 58 Rc, Top Roll/Bottom Roll: Driven by adjustable herringbone gear set

6.Embossing mode:Up and down concave and convex roller to press;

7.Pressure regulation:Screw pressure;

8. Supported material: 0.5mm×1200mm Aluminum Coil

9. Motor power: 480Volt, 60Hz, 3 phases or customize according to your needs.

Brand: Siemens

10. Reducer: China World Trade Center speed reducer

11. Bearing: domestic brands in Wafangdian City

12. Working Speed:0-18m/min

13. Delivery Time: 50-60 working days

Here is the high quality metal embossing roll forming machine embossing roller pictures for your reference:

Finished Product Of Embossing Machine

If you need to make the production line of embossing, like from decoiler to leveling, to embossing and then cut to lenght, the machine design is also available. Here is the machine pictures for your reference:

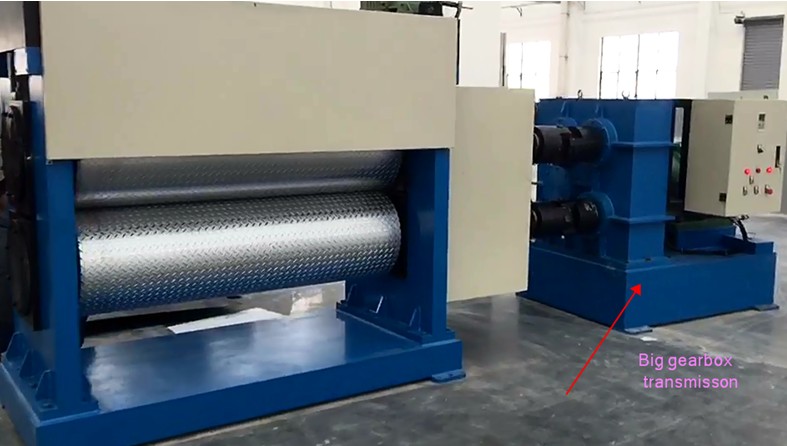

Embossing Machine

Metal Embossing Machine


Operator

Operator controls labelled in English

Manuals: Operator and maintenance manuals in English

Drive part

Motor: 22KW Siemens Beide motor

Cycloidal speed reducer: BBWD7-87-22KW-4P.

Drive the double embossed rollers by connecting the double rollers to distribution gearbox by coupling joints.

Embossing speed: 0-6m/min speed adjustable

How to get metal embossing machine quotation?
When you need to know price of the metal embossing machine, please provide the following information:
1.Material to be embossed:
2.Material coil width and material thickness.
3.Fully automatic production line or manual version.

Please feel free to give us the pattern you want to make and the other information, both can help us to give you a specific quotation.

here is a video for you to reference about embossing machine:




Looking for ideal Metal Embossing Machine for Sheets Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Embossing Roll Forming Machine are quality guaranteed. We are China Origin Factory of High Quality Metal Embossing Machine. If you have any question, please feel free to contact us.
