Basic Info
Model No.: ZT-006
Control System: PLC With Touch Screen
Transmission: Chain
Name: Galvanized Steel C Channel Machinery
Lanugage System: Chinese, English, Russian
Main Power: 11 Kw
Production Capacity: 12-15 M/minute
Number Of Rollers: 12 Rollers
Shaft Material: 45# Steel With Tempering
Roller Material: GCr15 Quench With 58-60°
Voltage: 380 V 50 Hz 3 Phase (as Customer`s Request)
Additional Info
Packaging: As customer's need
Productivity: 15-18m/min
Brand: zhongtuo
Transportation: Ocean,Land,Air
Place of Origin: China(mainland)
Supply Ability: 30 sets/month
Certificate: CE,ISO,SGS,IAF,CNAS.
HS Code: 84552210
Port: XINGGANG PORT,TIANJIN CHINA
Product Description
Galvanized steel c channel machinery

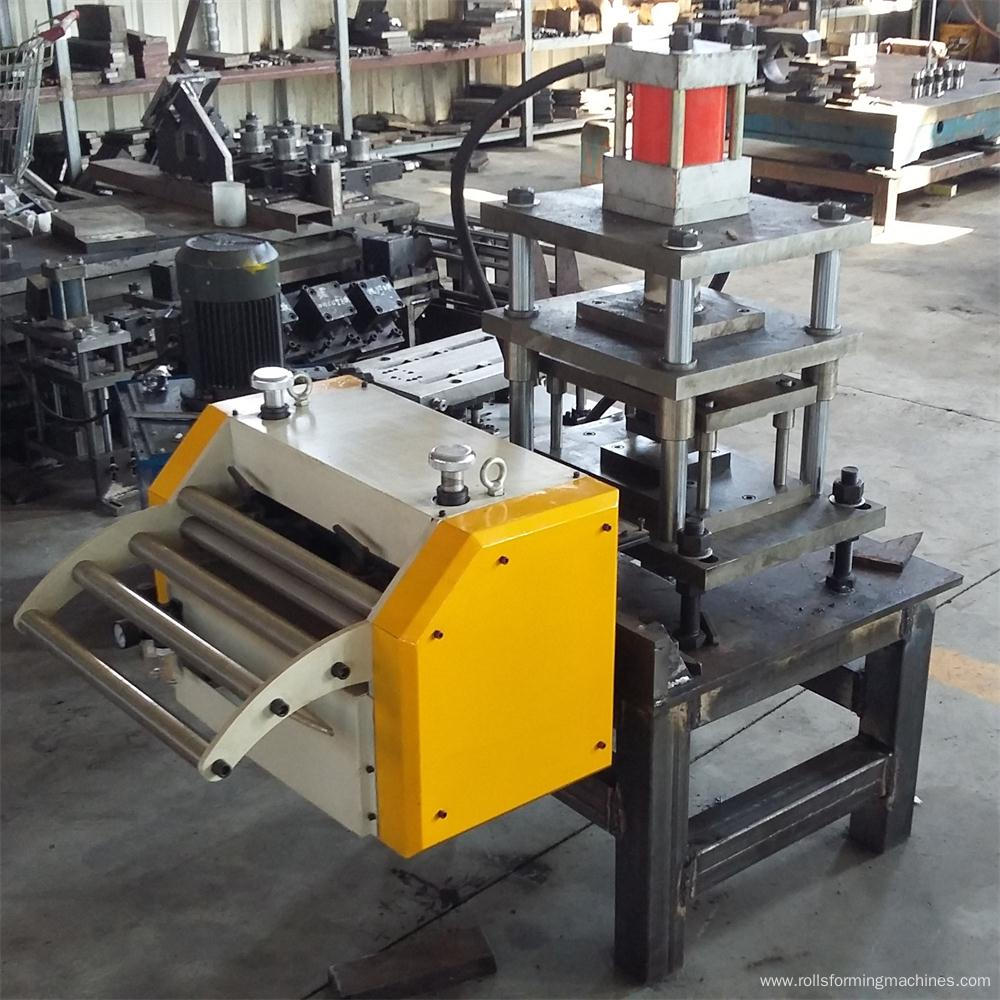

Galvanized steel c channel machinery can produce many sizes of C shape purlin. Main equipment include: Decoiler, main forming system, punching equipment, post cutting equipment, hydraulic station, and electric controlling system. Our Galvanized steel c channel machinery are widely used nowadays in all around the world. The Galvanized steel c channel machinery produced are widely used in the house building, the solar panel support project. Our machine are customized, we will produce our machine as your c purlin profile drawings.
Galvanized steel c channel machinery Decoiler System:
Loading capacity: 3 T
Uncoiling width: 500 mm
Inner diameter: 450-550 mm

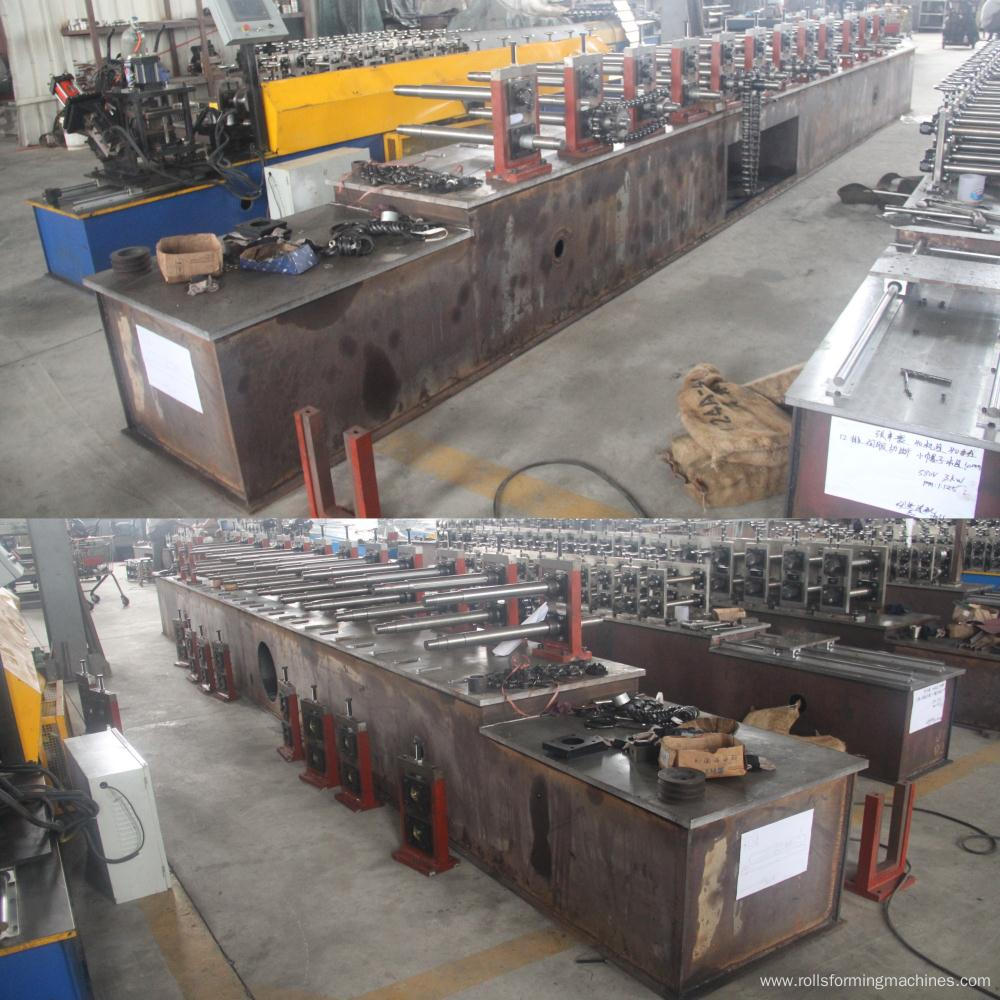

Galvanized steel c channel machinery Roll Forming System:
Main power: 11 kw
Drive mode: Chain
Number of rollers: 12 rollers
Diameter of shafts: φ 60 mm
Weight of main part: About 8 tons
Frame type: Memorial arch frame
Material of shafts: 45# steel with tempering

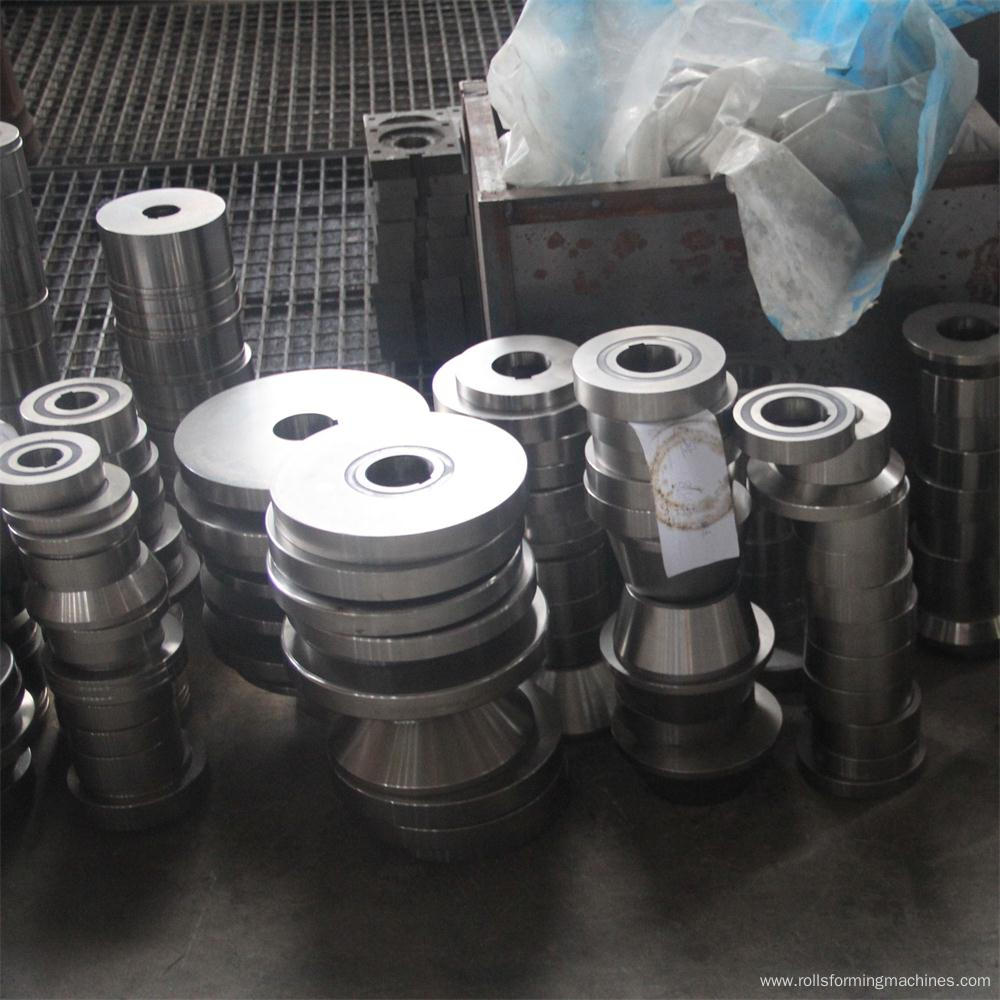

Material of rollers: GCr15 quench with 58-60°
Forming speed: 8-12 m/minute (with punching)
Voltage : 380 v 50 hz 3 phase (as customer`s request)
Size of the main part: About 8800 х1800х 1400mm(L*W*H)

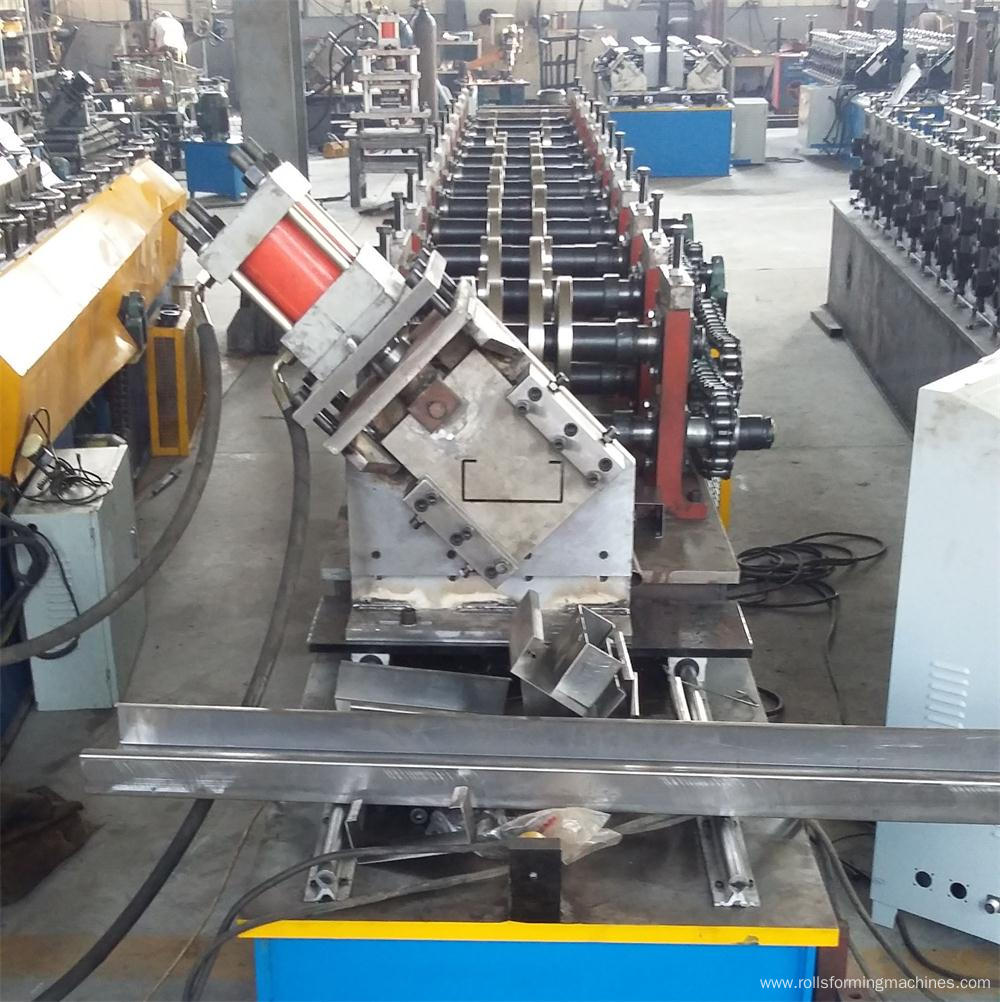

Galvanized steel c channel machinery Automatic Cutting System:
Power supply: Hydraulic power
Material of blades: Cr12mov quenched
Components: It contains one set of blade, one hydraulic tank and one cutter machine.
Galvanized steel c channel machinery Electric Control System:
Length Tolerance: 3m±1.5mm
Automatic length measurement
Language: English and Chinese
Automatic quantity measurement
Length inaccuracy can be amended easily.
Voltage: 380 v 50 hz 3 phase (as customer`s request)
Operating panel: touching screen and button together.
Galvanized steel c channel machinery Our Service:
1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.
