Zhongtuo Roll Forming Machinery Co., ltd

Limitless hydraulic c frame machine
Limitless hydraulic c frame machine
Limitless hydraulic c frame machine
Limitless hydraulic c frame machine
Limitless hydraulic c frame machine

Limitless hydraulic c frame machine

Unit Price: USD 15000 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union,O/A
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: ZT-006

    Control System: PLC With Touch Screen

    Transmission: Chain

    Name: Limitless Hydraulic C Frame Machine

    Lanugage System: Chinese, English, Russian

    Main Power: 11 Kw

    Production Capacity: 12-15 M/minute

    Number Of Rollers: 12 Rollers

    Shaft Material: 45# Steel With Tempering

    Roller Material: GCr15 Quench With 58-60°

    Voltage: 380 V 50 Hz 3 Phase (as Customer`s Request)

Additional Info

    Packaging: As customer's need

    Productivity: 15-18m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE,ISO,SGS,IAF,CNAS.

    HS Code: 84552210

    Port: Xinggang Port,Tianjin China

Product Description

Limitless hydraulic c frame machine

Limitless hydraulic c frame machine can produce many different sizes of C shape purlin. Main equipment include: Decoiler, main forming system, punching equipment, post cutting equipment, hydraulic station, and electric controlling system. Our Limitless hydraulic c frame machine are widely used nowadays in all around the world. The Limitless hydraulic c frame machineare widely used in the house building, the solar panel support project. Our Limitless hydraulic c frame machine are customized, we will produce our machine as your c purlin profile drawings.

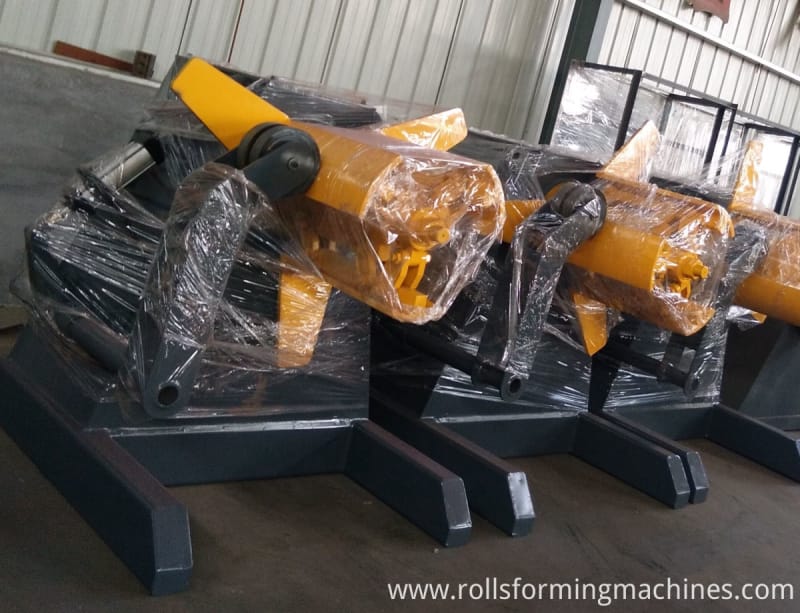

Limitless hydraulic c frame machine Decoiler System:
Loading capacity: 3 T
Uncoiling width: 500 mm
Inner diameter: 450-550 mm

Limitless hydraulic c frame machine

Limitless hydraulic c frame machine Roll Forming System:
Main power: 11 kw
Drive mode: Chain
Number of rollers: 12 rollers
Diameter of shafts: φ 60 mm
Weight of main part: About 8 tons
Frame type: Memorial arch frame
Material of shafts: 45# steel with tempering
Material of rollers: GCr15 quench with 58-60°
Forming speed: 8-12 m/minute (with punching)
Voltage : 380 v 50 hz 3 phase (as customer`s request)
Size of the main part: About 8800 х1800х 1400mm(L*W*H)

Limitless hydraulic c frame machine

Limitless hydraulic c frame machine Automatic Cutting System:
Power supply: Hydraulic power
Material of blades: Cr12mov quenched
Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Limitless hydraulic c frame machine

Limitless hydraulic c frame machine Electric Control System:
Length Tolerance: 3m±1.5mm
Automatic length measurement
Language: English and Chinese
Automatic quantity measurement
Length inaccuracy can be amended easily.
Voltage: 380 v 50 hz 3 phase (as customer`s request)
Operating panel: touching screen and button together.

Limitless hydraulic c frame machine

Limitless hydraulic c frame machine Our Service:
1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.

Limitless hydraulic c frame machineLimitless hydraulic c frame machine

Looking for ideal C Frame Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Hydraulic C Frame Machine are quality guaranteed. We are China Origin Factory of Limitless Hydraulic C Frame Machine. If you have any question, please feel free to contact us.

Product Categories : C/Z/U Purline Roll Forming Machine > U Bracket Solar Power Stent Manufacturing Series
