U Bracket Solar Power Stent Manufacturing System is machine to produce U shape purlin, this U shape purlin always used in Solar Power Stent.
All the production line combine with decoiler, punching part, main roll forming machine, hydraulic cutting part and run out table.
Quickly parameter:
1 Suitable to process:PPGI, PPGL, GI, GL, Black Steel ASTM A-36 from
2 Width of the plate :175/400mm
3 Rollers: 18 rows
4 Dimensions :6.3*1.4*1.5m
5 Power: 18.5kw
6 Thickness of the plate: 1.2-2.5mm
7 Productivity: 8-14m/min
8 Diameter of the roller: Φ80mm
9 Weight :About 3T
10 Voltage: 380V 50Hz 3phases
11 Material of the cutting plate: Cr12
12 Hydraulic :40#
13 Processing precision Within: 1.00mm
14 Control system: PLC control
15:shaft diameter:70mm

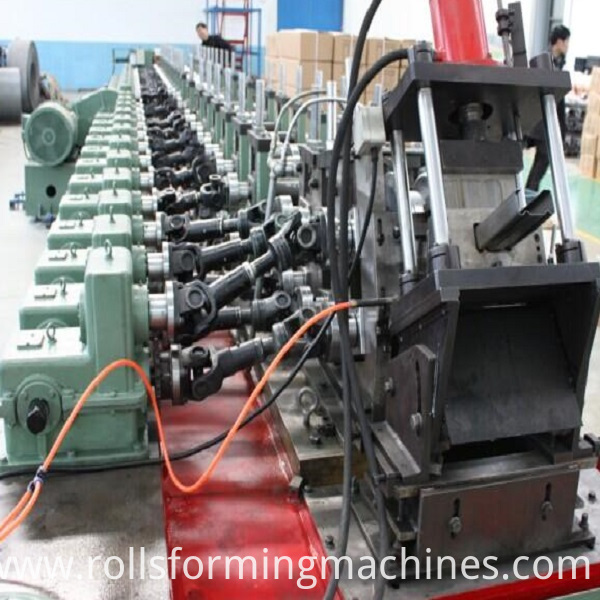

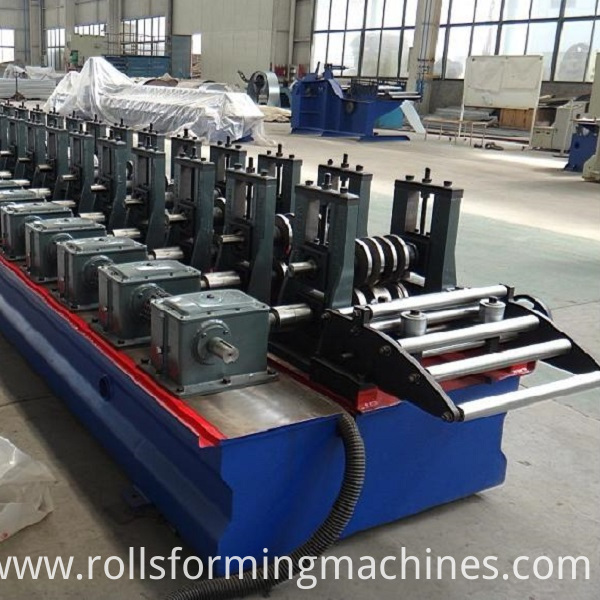

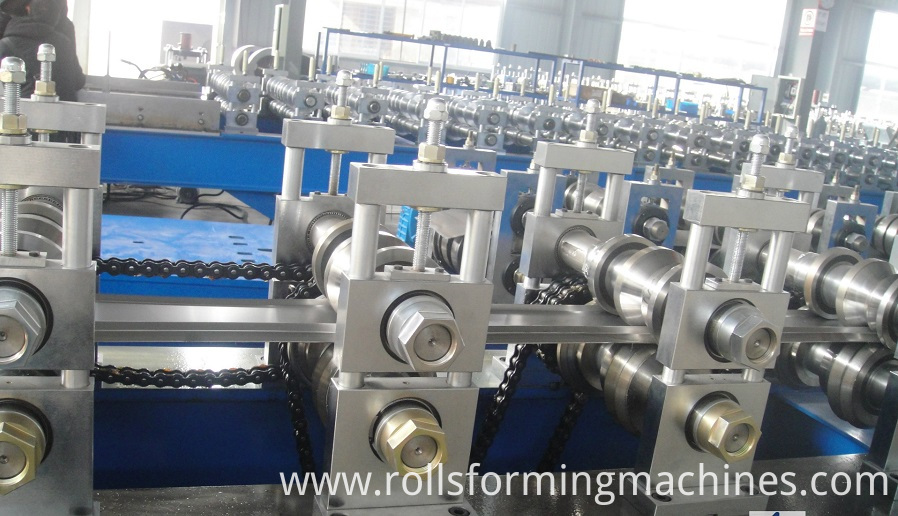

More machine pictures of U Bracket Power Stent machine:

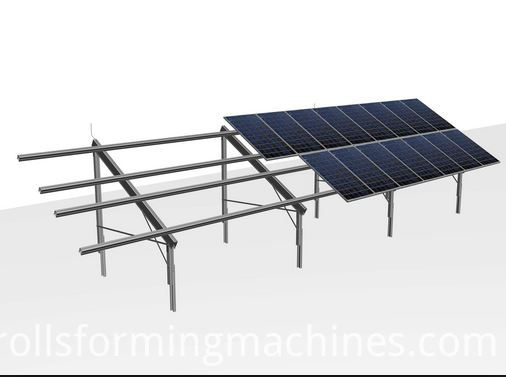

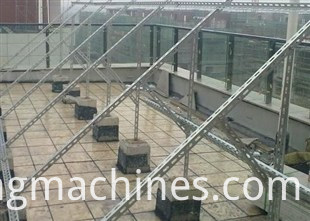

Some pictures for project:
Looking for ideal Pv Bracket Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Solar Bracket Roll Forming Machine are quality guaranteed. We are China Origin Factory of Bracket Roll Forming Machine. If you have any question, please feel free to contact us.
